Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
Specifications
Brand Name :
Defuli
Model Number :
SET tensioner
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
1000pcs per month
Delivery Time :
7 working days
Packaging Details :
carton with foam
type :
servo tensioner
delivery time :
7-10 days
use for :
winding machine
winding speed :
5m/s
weight :
3kg
condition :
brand new
Description

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Product details of SETC servo tensioner ( for wire 0.03-0.22mm)

SETC-BRD Series with cylinder and the tension pulley is under of front servo tensioner, Which the cylinder is mounted inside the enclosure, It have attenuation fuction. when not turned on the pressure, The tension can be adjusted by the knob and swing arm under the knob to control the tension.

When a certain period in the winding, Thread and other processes require larger back tension, The pressure can be turned on. When the winding machine through a solenoid valve to control the switching valve, the swinging stopper will happen a certain angle in order to get two tension values and avoid disconnection.

Specifications

Model Tension spring tension arm Reference wire diameter scope Tension scope Standard configuration
SETC-100-BRD S2 SA2 0.03-0.06mm 10-25 Arm SA2/SA3, Spring S2/S3/S4
S3 SA3 0.05-0.09mm 22-65
S4 SA3 0.08-0.14mm 60-100
SETC-200-BRD S2 SA2 0.03-0.06mm 10-25 Arm SA2/SA3, Spring S2/S3/S4/S5
S3 SA3 0.05-0.09mm 22-65
S4 SA3 0.08-0.14mm 60-150
S5 SA3 0.14-0.22mm 140-200
SETC-300-BRD S2 SA3 0.03-0.06mm 10-25 Arm SA3/SA4, Spring S2/S3/S4/S5
S3 SA3 0.05-0.09mm 22-50
S4 SA4 0.08-0.14mm 60-150
S5 SA4 0.14-0.22mm 140-300

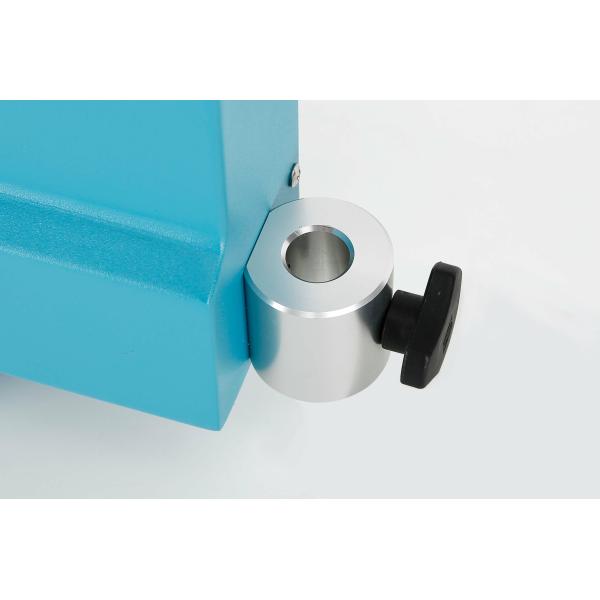

Product image for reference:

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder

Winding Machine Tensioner Servo Tensioner SETC-300 Suitable for Wire 0.03-0.22mm with Cylinder
