Magnetic Cylinder Coil Winding Machine Tensioner For Dia 0.12-0.35mm Wire Textile Machine
Magnetic Cylinder Coil Winding Machine Tensioner For Dia 0.12-0.35mm Wire Textile Machine
Specifications
Brand Name :
Defuli
Model Number :
magnetic tensioner
Certification :
ISO, SGS, ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
1000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
carton with foam
type :
magnetic tensioner
factory :
yes
payment :
T/T or Paypal
using :
tension control
tension scope :
as detail
shipping :
by express
Description

Magnetic Cylinder Coil Winding Tensioner For Wire Dia 0.12-0.35mm Textile Machine

Specifications of the MTQ Coil Winding Magnetic Wire Coil Tensioner

Model Applied wire diameter(mm) Tension scope(g)
MTQ20 φ0.03—φ0.07 4.0g—40g
MTQ100 φ0.04—φ0.14 10g—120g
MTQ300 φ0.08—φ0.25 50g—420g
MTQ600 φ0.12—φ0.35 80g—620g
MTQ800 φ0.14—φ0.40 100g—800g

Key advantages of Magnetic wire tensioners:

These magnetic tensioners use a device containing a permanent magnet as a non-contact method of

generating a variable resistance to rotation of the main wheel of the tensioner, thus maintaining wire

tension at the set value for longer periods than their mechanical counterparts with greatly reduced

requirement for adjustment.

The arm position provides feedback to the system, adjusting the magnetic resistance device to regulate

and maintain constant tension during the winding cycle. Wool Felt provide pre-tension and remove dust

and other debris from the winding wire. Polished ceramic eyelets and guide rollers at each point of contact

protect the insulating enamel from mechanical damage.


The performance of these magnetic wire tensioners is exceptional given the low cost,providing

outstanding value for money.


Captive roller on tension arm is easy to thread, eliminates chance of losing wire.

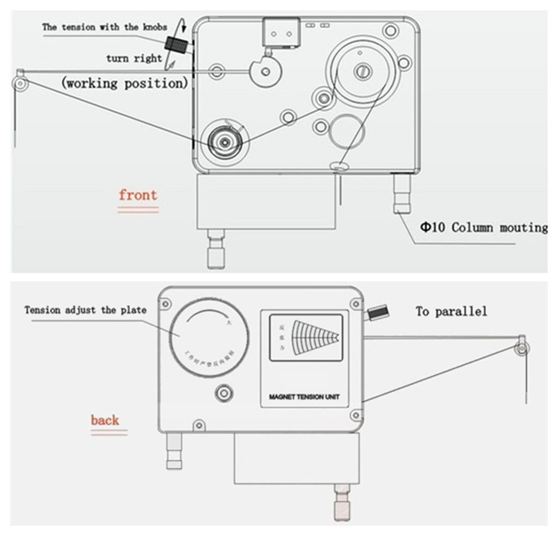

Schematic Diagram of MTQ Coil Winding Magnetic Wire Coil Tensioner

Magnetic Cylinder Coil Winding Machine Tensioner For Dia 0.12-0.35mm Wire Textile Machine

Magnetic Cylinder Coil Winding Machine Tensioner For Dia 0.12-0.35mm Wire Textile Machine
