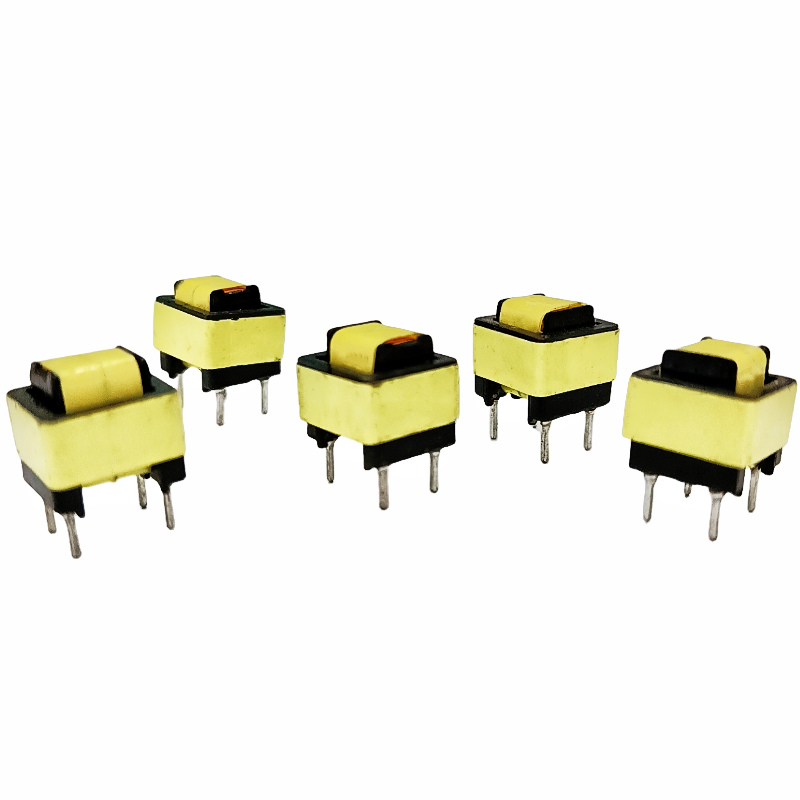

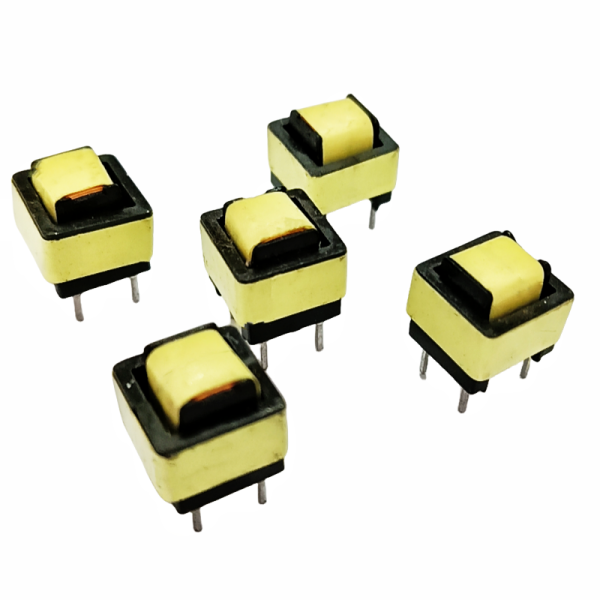

EE8.3 Common Mode Filter Inductor Horizontal Coated With Customized Coil Feature

1.Product Description

The EE8.3 Common Mode Filter Inductor is a compact yet powerful electronic component that excels in electromagnetic interference (EMI) protection. It uses an EE8.3 size core with an optimized magnetic circuit design to accurately identify and efficiently suppress common mode noise in circuits. These inductors are used in a wide range of electronic products and play a key role in stabilizing the current output in switching power supplies and ensuring the pure transmission of signals in data communication lines. Its compact design makes it easy to install in limited board space, providing a reliable common mode noise solution for many electronic devices pursuing miniaturization and high performance, such as smartphones, tablet PCs, and industrial control modules, effectively enhancing the electromagnetic compatibility and operational stability of the devices.

2.Advantage

EE8.3 common mode filter inductors have the following advantages:

1. Small and compact size: The EE8.3 specification determines its relatively small size, making it easy to install in situations where circuit board space is limited. It is suitable for various electronic devices with strict space requirements, such as smartphones, tablets, and other portable electronic products, effectively saving space and facilitating product miniaturization design.

2. Strong ability to suppress common mode noise: It can efficiently suppress common mode noise signals in electronic circuits. In scenarios such as power circuits and communication lines, it can significantly reduce external interference and common mode interference generated by the circuit itself, ensuring the purity and stability of signal transmission, and improving the performance and reliability of equipment.

3. Wide frequency response characteristics: It can exhibit good performance over a wide frequency range, effectively filtering common mode signals of both low and high frequencies. This makes it suitable for various types of circuits and application scenarios, and can meet the noise suppression requirements at different frequencies.

4. Low DC resistance: It has a low DC resistance, which means that the power loss generated when current passes through is relatively small. Helps to improve the overall efficiency of the circuit, reduce energy waste, and decrease the heat generated by resistors, which is beneficial for the stable operation and heat dissipation management of the equipment.

5. High saturation current: able to withstand relatively high currents without easily saturating. In some circuits that require high current transmission, such as high-power power supply circuits, it can meet the requirements of high current operation while ensuring effective common mode filtering, ensuring the normal operation of the circuit under high load conditions.

6. Easy to integrate: The standard EE8.3 packaging form makes it easy to integrate into various circuit designs. For engineers, it is easy to install circuit boards in suitable positions during layout and design, simplifying the manufacturing process and shortening the product development cycle.

7. It has a certain degree of magnetic shielding effect: it can provide a certain degree of magnetic shielding, reduce the interference of the magnetic field generated by the inductor itself on surrounding electronic components, and also resist the influence of external magnetic fields on the performance of the inductor, enhancing the electromagnetic compatibility (EMC) of the entire system, so that the equipment can work stably in complex electromagnetic environments.
