High Power Common Mode Inductance 20mH Vertical Flat Wire
High Power Common Mode Inductance 20mH Vertical Flat Wire
High Power Common Mode Inductance 20mH Vertical Flat Wire
High Power Common Mode Inductance 20mH Vertical Flat Wire
Specifications
Brand Name :
ED8
Model Number :
T1515-20mH Vertical
Certification :
RoHS,ISO9001-2001
Place of Origin :
China,shenzhen city.
MOQ :
500/1000
Price :
0.1USD-0.3USD
Payment Terms :
T/T paypal xtransfer
Supply Ability :
2000K-pcs/month
Delivery Time :
stock Or 3 weeks
Packaging Details :
100pieces / Carton size:380mm*325mm*345mm
Encapsulation :
Vertical
Inductance value :
20mH or Customizable
Size :
21mmx14.6mmx20.5mm
Current :
5-10A & Customizable
Function :
Filter EMI signals
Feature :
High quality
Description

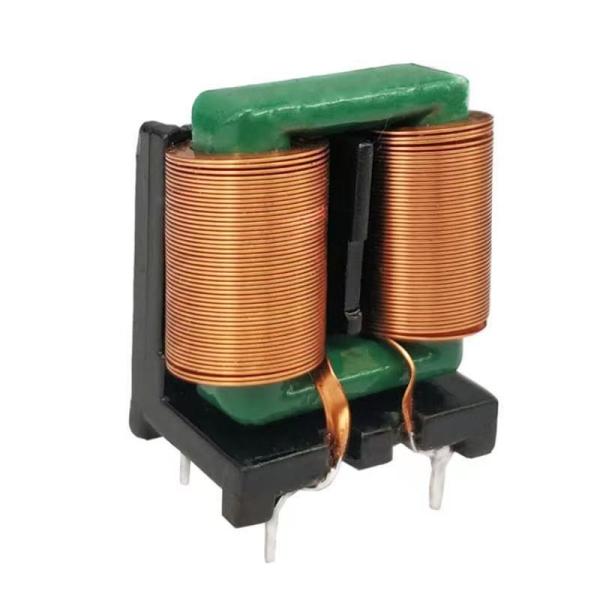

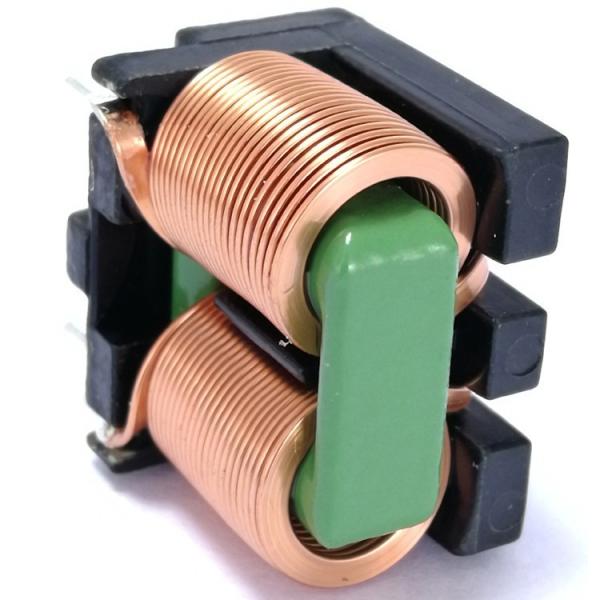

High-Power common-mode inductance T1515 Vertical flat wire

Product performance:

High Power Common Mode Inductance 20mH Vertical Flat Wire

The common mode inductor is essentially a two-way filter: on the one hand, it needs to filter out the common mode electromagnetic interference on the signal line, and on the other hand, it must suppress itself from emitting electromagnetic interference, so as to avoid affecting the normal operation of other electronic devices in the same electromagnetic environment.
For the ideal inductor model, when the coil is wound, all the magnetic flux is concentrated in the center of the coil. However, under normal circumstances, the toroidal coil will not be fully wound, or the winding is not tightly wound, which will cause leakage of magnetic flux. Common mode inductors have two windings with a considerable gap between them, which creates flux leakage and creates differential mode inductors. Therefore, common mode inductors generally also have a certain ability to attenuate differential mode interference.
In filter design, we can also take advantage of leakage inductance. For example, in an ordinary filter, only one common mode inductor is installed, and the leakage inductance of the common mode inductor is used to generate an appropriate amount of differential mode inductance, which can suppress the differential mode current. Sometimes, it is necessary to artificially increase the leakage inductance of the common mode choke coil and increase the differential mode inductance to achieve a better filtering effect.

Product Size:

Encapsulation: Vertical
Inductance value: 10-20mH
Size(Length X height): 21mmx14.6mmx20.5mm
Current: 5-10A
