EF25 High Frequency Ferrite Core Transformer For Electronic Equipment

1.Product Description

In an EF25 High Frequency Ferrite Core Transformer, “EF” stands for the core model or type of the transformer. Specifically:

E: usually stands for the shape or type of core, which in this case might be an E-core, a common transformer core shape with a large window area for ease of winding and assembling coils.
F: may indicate a particular property or series of cores, for example, it may mean that the core is made of ferrite material or is a particular model in the series. However, the exact meaning of F may vary from one manufacturer or standard to another.

2.Features

1. Small size: EF25 High Frequency Ferrite Core Transformer adopts ferrite core and increases the cross-sectional area of the core, which makes the volume of the whole power supply as small as possible, and facilitates miniaturized design.

2. Inexpensive: Compared with some high-end or special-purpose transformers, EF25 High Frequency Ferrite Core Transformer have lower production costs, so the price is relatively cheap, suitable for mass production and application.

3. High reliability: due to the use of excellent materials and structural design, EF25 High Frequency Ferrite Core Transformer has high reliability, can work stably in a variety of harsh environments.

4. Flying wires to increase the discharge distance: EF25 High Frequency Ferrite Core Transformer are designed to take into account the arrangement of flying wires and increase the discharge distance, which helps to improve the safety and stability of the circuit.

5. High isolation: some EF25 High Frequency Ferrite Core Transformer such as EF25 flyback plane transformer has high isolation characteristics, isolation voltage up to 3000V, suitable for application scenarios that require high isolation.

3.Application

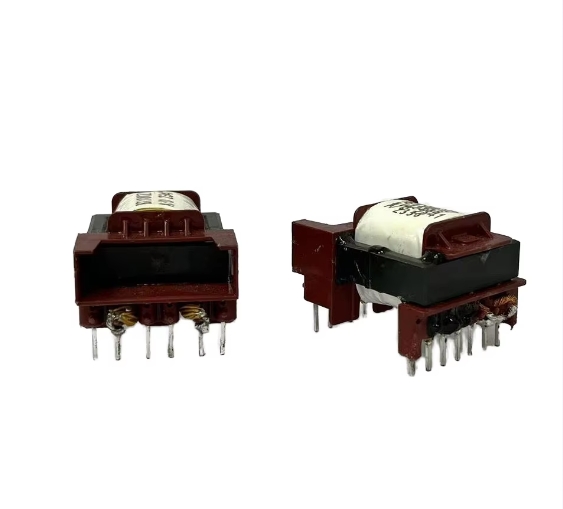

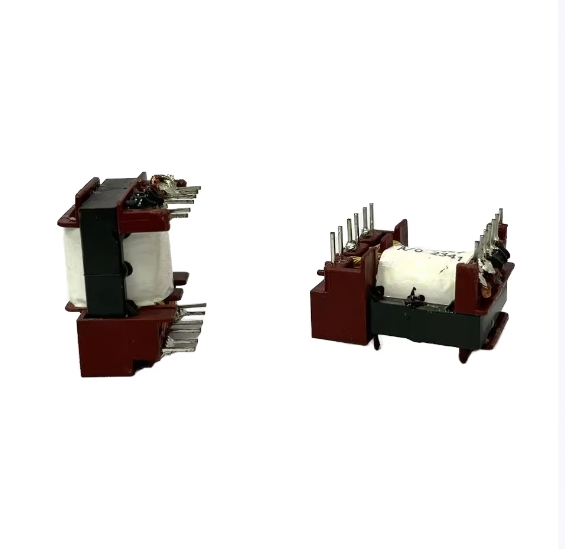

4.Product Pictures

5.Company Profile

Shenzhen Zhixiangyuan Electronics Co., Ltd. is a high-tech enterprise specializing in customizing all kinds of special inductors, coils and transformers, located in the High-tech Industrial Park of Guanlan, Longhua District, Shenzhen City, Guangdong Province, China, the company was founded in 2011, covers an area of more than 2,000 square meters, with two production bases in Huizhou, Guang'an, with an annual production capacity of 120 million inductors in line with the requirements of the ROHS environmental protection, and the products are widely used in Communication products and equipment, medical electronic equipment, automotive electronics, sports and fitness equipment, sound cards, microphones, sweeping robots, beauty equipment and consumer electronics products. We have a group of professional and technical team with rich experience in R&D and production, using industrial-grade raw materials and a lot of proprietary technology, we are committed to give you the best quality service!

6.FAQ

Q1: Do you provide service for custom design products?
A: Yes, we have the R&D department for custom designs,welcome to send any of your custom specifications.

Q2: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.

Q3: What is your lead time for samples and mass orders?
A: Usually 5-10 days for samples and 15-30 days for mass production, depending on the quantity and the raw material stock.

Q4: How about the quality?
A: Each pieces 100% tested before shipment. We offer 90-180 days quality assurance.
