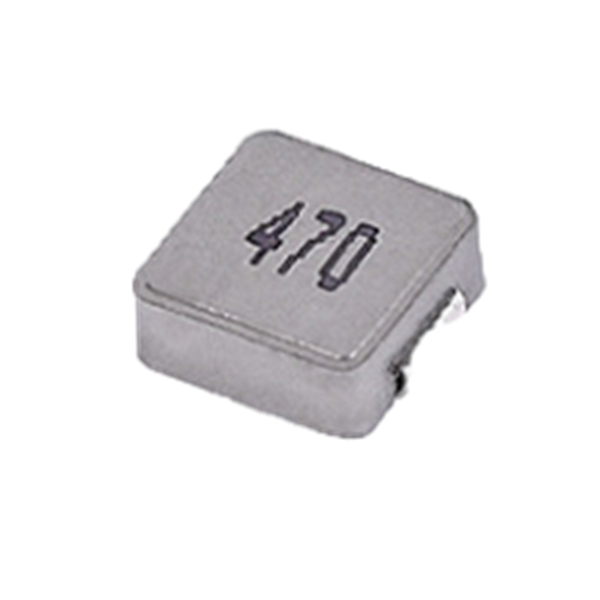

Molding Power Choke SMD Inductors Chip Integrated Circuit Inductor High Current alloy powder

SMD Power Inductor Original Smd Alloy Powder Molded Chip Integrated Circuit Ic 1.0uH~4.7uH

Molding Power Choke SMD Inductors Chip Integrated Circuit Inductor High Current Alloy Powder

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• Ultra-thin size, can be applied to MINI products
• Small tolerance, no heat generation, convenient production

Applications:

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Bluetooth Products

Specification:

Dimensions

Specification

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +120℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs)
