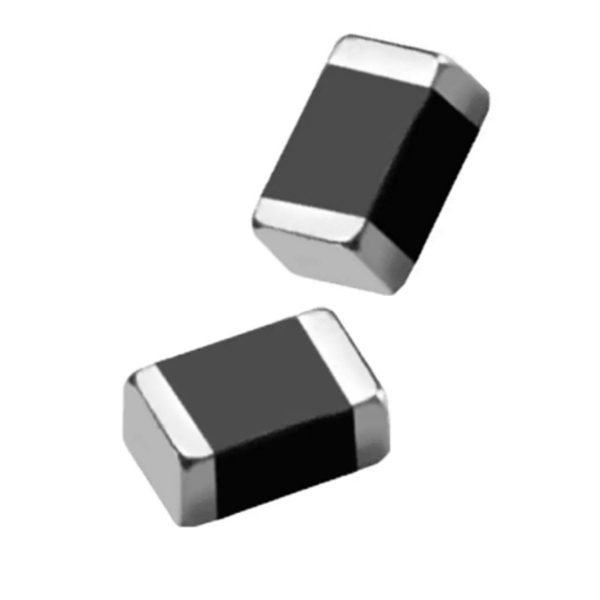

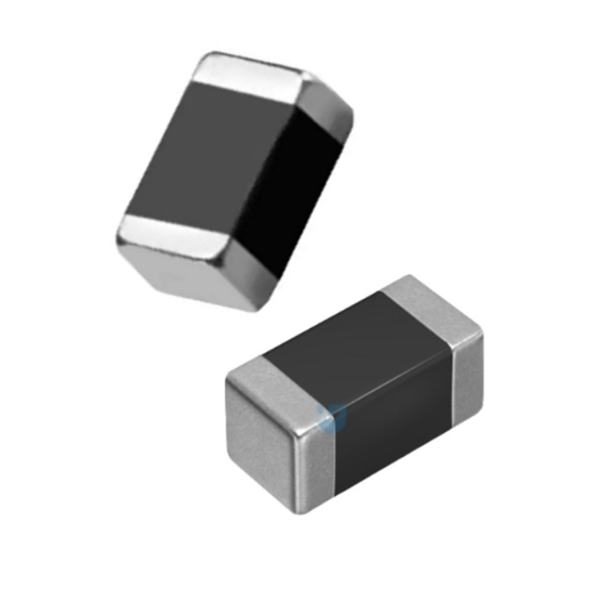

Magnetic Beads Multilayer Power Inductor Ceramic High Power
Magnetic Beads Multilayer Power Inductor Ceramic High Power
Magnetic Beads Multilayer Power Inductor Ceramic High Power
Magnetic Beads Multilayer Power Inductor Ceramic High Power
Specifications
Brand Name :
Forewell
Model Number :
CMLM2520C4R7MIT
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
4000 pcs
Price :
Negotiation
Payment Terms :
T/T,, D/A, L/C, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
4000/pack
Type :
Multilayer Power Inductor
Application: :
Automotive systems
Inductance: :
4.7UH
Size :
2520(1008)
Rated Current: :
1100mA
Operating temperature :
OEM Production,-20°C to +105°C
Description

Chip Inductors And Magnetic Beads From High Power Multilayer Ceramic Inductors

Features:
  • High DC bias current due to developed material.
  • Low profile and thin thickness.
  • Monolithic structure for high reliability.
  • Excellent solderability and high heat resistance
  • Low DC resistance.
  • No cross coupling due to magnetic shield

Applications:

  • Test Instruments DC-DC converter circuits for mobile phones,
  • DSCs, DVCs, HDDs, PDAs, etc.

Material:

NO. Homogeneous Material Name Element name composition
1 Ferrite Ferrite Powder
2 Inner Coils(Ag) Ag,Pd
3 Terminal Electrode(Ag) Ag
4 Electro-Plating (Ni/Sn) Ni,Sn

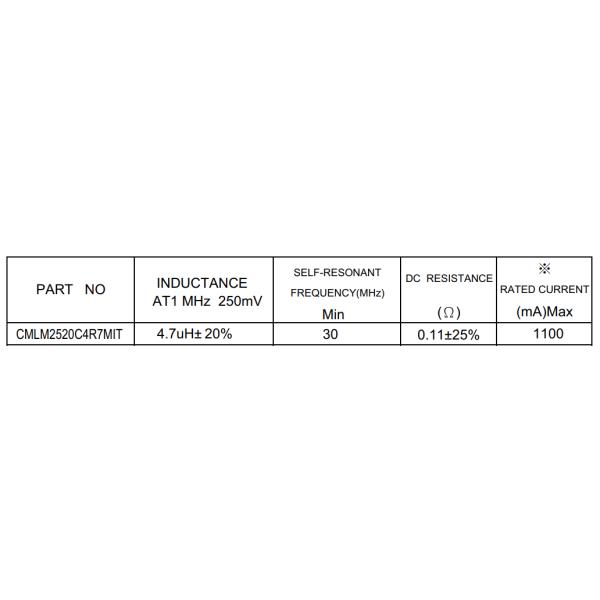

Specification:

Magnetic Beads Multilayer Power Inductor Ceramic High Power

Magnetic Beads Multilayer Power Inductor Ceramic High Power

Dimensions:

Magnetic Beads Multilayer Power Inductor Ceramic High Power

Specification:

Magnetic Beads Multilayer Power Inductor Ceramic High Power

Packaging:

Magnetic Beads Multilayer Power Inductor Ceramic High Power

Reel Label:

Producing the goods label needs to indicate

(1)Pb Free

(2)RoHS Compliant

Electrical Characteristics :

  • Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
  • Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

  • Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value,

or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

  • Operating temperature -55℃ ~ +125℃.
  • All test data is referenced to 25℃ ambient.

RFQ:

  • How do you make our business long-term and good relationship?

We keep good quality and competitive price to ensure our customers benefit;

  • Are you trading company or manufacturer?

We are OEM/ODM manufacturer with our own factories.

  • How do you control the quality?

We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
