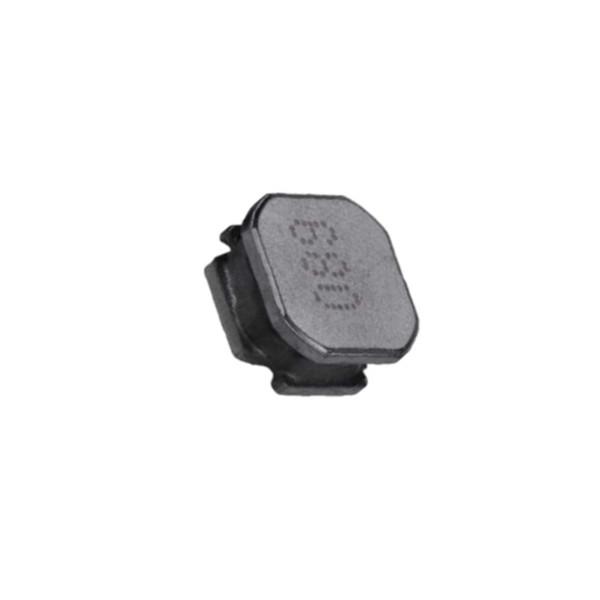

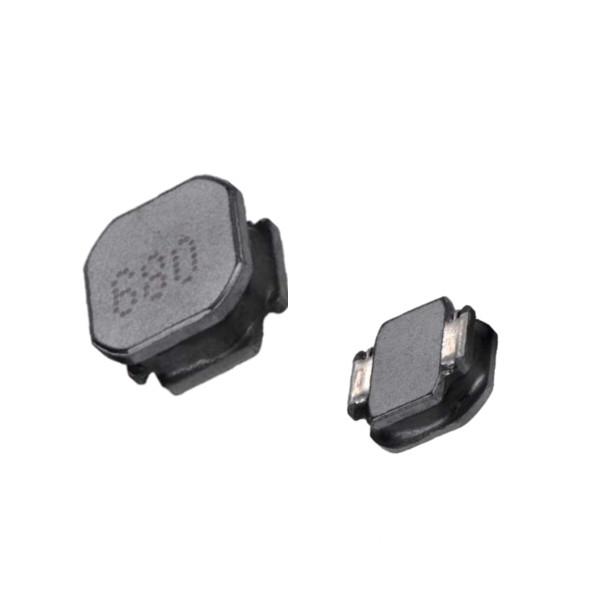

Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor
Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor
Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor
Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor
Specifications
Brand Name :
Forewell
Model Number :
CLMW5020
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
2500 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
7-21days
Packaging Details :
2500/pack
Inductance :
0.47uH~100uH
Rated current :
6.15A~0.57A
Package size :
5.0*5.0*2.0mm
Type :
Shielded series
Usage :
automotive,Magnetic Coil Inductor Coil,electrical
Operating temperature :
OEM Production,-30°C to +80°C
Description

Choke Coil Ferrite Core Toroid Power Inductor Ferrite Iron Coil Ind Magnetic Shielded Types Wire Wound SMD

Features:

  • Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  • Ultra low buzz noise, due to composite construction.
  • Available on tape and reel for automatic insertion
  • Low DC resistance and large permissible DC current
  • The use of magnetic iron powder ensure capability for large current；
  • Magnetically shielded construction, low DC resistance；
  • Frequency Range: up to 29MHz；

Applications:

  • Smart phone,MID；
  • Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
  • Molding Power Inductor Integrated Inductors SMD For Notebooks Desktop Computers Servers
  • Mobile devices with multifunction such as adding color TV and camera
  • MFlat-screen TVs, blue-ray disc recorders, set top boxes

Specification:

Item Description
Category High Power Inductor
Inductance 0.47uH~100uH
Current Rating (Amps) 6.15A~0.57A
Size / Dimension 5.0*5.0*2.0mm
Material alloy powder

Material:

NO. Componets Material
1 Ferrite Core Ni-Zn Ferrite
2 Wire Plyurethane system enameled copper wire
3 Magnetic Glue Epoxy resin and magnetic powder
4 Plating Electrodes Ag,NI,Sn
5 Top Electrodes Sn alloy
6 Outer Electrodes Top surface solder coating Sn,Ag,Cu

Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor

Dimensions:

Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor

Specification:

Shielded Type Toroid Power Inductor OEM , Wire Wound Choke Coil Inductor

Packaging Quantity(pcs)

Standard Packing Quantity:2500 pcs/reel

Electrical Characteristics

  • All test data is referenced to 20°C ambient;
  • Rated current: Isat or Irms, whichever is smaller;

RFQ:

  • Are you trading company or manufacturer?

We are OEM/ODM manufacturer with our own factories.

  • How many production of inductance coil can you achieve?

We can reach quantity about 5000000 a month.

  • What shipping method will you use?

We can go by ship and UPS, DHL, etc., according to customer requirements
