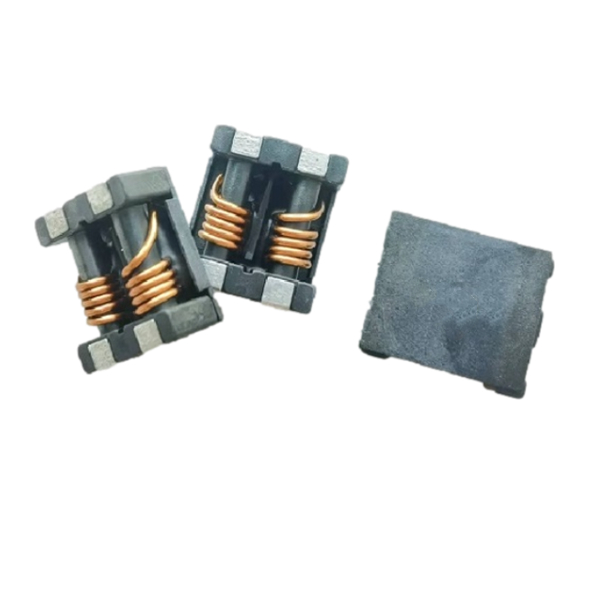

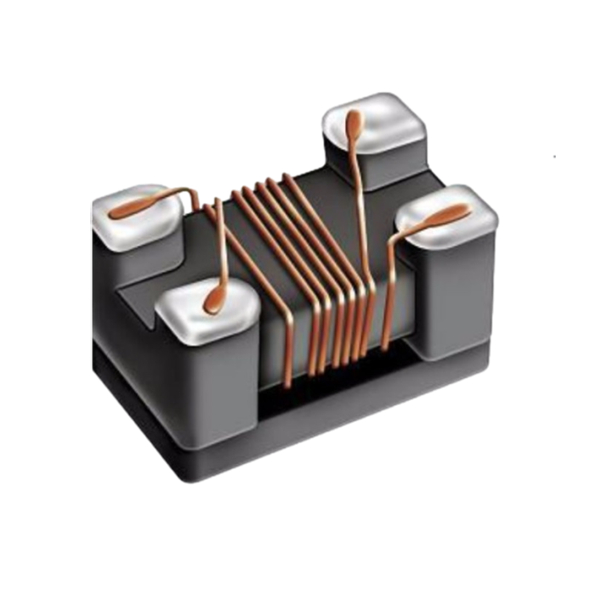

SMT Common Mode Choke Inductor Signal Transmission Small Size
SMT Common Mode Choke Inductor Signal Transmission Small Size
SMT Common Mode Choke Inductor Signal Transmission Small Size
SMT Common Mode Choke Inductor Signal Transmission Small Size
Specifications
Brand Name :
Forewell
Model Number :
CMMW-B Series
Certification :
ISO9001 ISO14001 RoHS REACH SGS
Place of Origin :
China
MOQ :
2500 pcs
Price :
Competitive and reasonable
Payment Terms :
T/T,, L/C, D/A, Western Union, MoneyGram
Supply Ability :
1000000 pcs per lot
Delivery Time :
7-21days
Packaging Details :
2500/Reel
Type :
China Supplier UU UF series common mode choke coil inductor,
Working frequency :
20kHZ-500kHZ
Rated current :
250mA~450mA
Resistance :
30Ω~2200Ω
Size :
1608/2012/3216
Description

SMT Common Mode Choke Common Mode Rf Choke Communications Product

Features:

  • Powerful component with composite co-fired material to solve EMI problem for high-speed differential signal transmission line as USB, IEEE1394 and LVDS, without distortion to high speed signal transmission
  • High coupling constant : 0.99
  • Small size and low profile
  • Various common mode impedance items of 67 to 220 ohm can be used, considering noise level and signal frequency
  • Small dimension enable higher density packaging
  • RoHS Compliant.

Applications:

  • Mobile devices with multifunction such as adding color TV and camera
  • Flat-screen TVs, blue-ray disc recorders, set top boxes
  • Portable gaming devices, personal navigation systems, personal multimedia devices
  • Automotive systems
  • Portable gaming devices
  • Set top box；

Specification:

tem Description
Category Common Mode Choke Inductor
Resistance 30Ω~2200Ω
Current Rating (Amps) 250mA~450mA
Size / Dimension 1608/2012/3216
Material Copper wire+Ferrite

SMT Common Mode Choke Inductor Signal Transmission Small Size

SMT Common Mode Choke Inductor Signal Transmission Small Size

SMT Common Mode Choke Inductor Signal Transmission Small Size

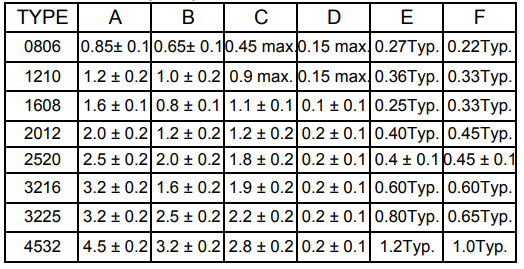

Dimensions:

SMT Common Mode Choke Inductor Signal Transmission Small Size

Reflow-profile:

SMT Common Mode Choke Inductor Signal Transmission Small Size

Temperature Range:

  • Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
  • Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Packaging and Marking:

  • Carrier Tape Dimensions

SMT Common Mode Choke Inductor Signal Transmission Small Size

​Packaging Quantity:

  • Standard Packing Quantity:2500 pcs/bag

Note:

  • Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
  • Operating temperature -55℃ ~ +125℃.
  • All test data is referenced to 25℃ ambient.

FAQ:

  • Can we customize?

Yes, we specialize in providing customized services.

  • Can you provide samples?

Yes, we can provide samples for free.

  • How long does the sample lead time take?

Sample delivery takes about 7-14 days.

Product tags

high frequency common mode choke

,

common mode choke inductor

,

smt common mode choke
Send your message to this supplier
Send Now
