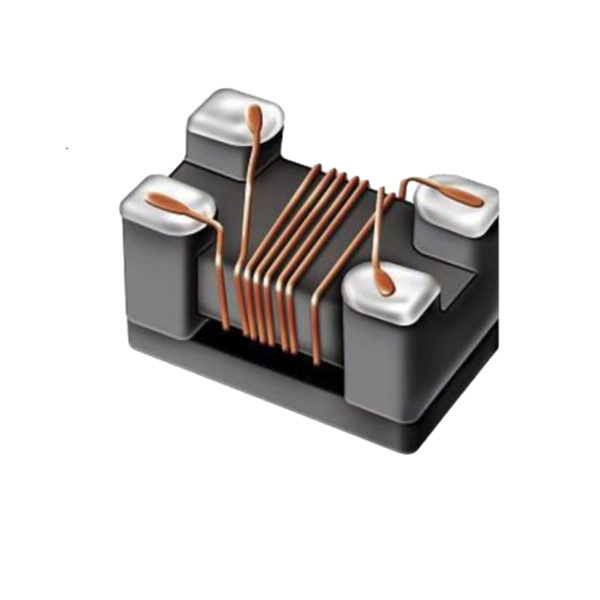

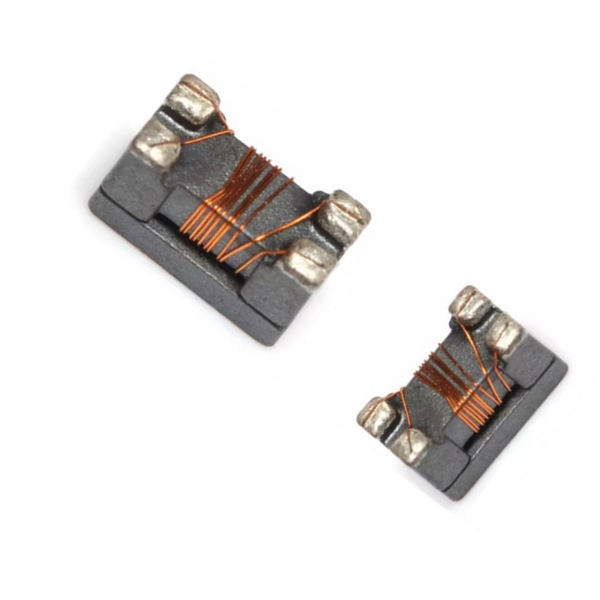

High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke
High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke
High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke
High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke
Specifications
Brand Name :
Forewell
Model Number :
CMW5045A-102
Certification :
ISO9001 ISO14001 RoHS REACH SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiate
Payment Terms :
T/T,, L/C, D/A, Western Union, MoneyGram
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
500/pack
Type :
common mode choke coil inductor
Working frequency :
20kHZ-500kHZ
Rated current :
3A
Resistance :
1000Ω
Size :
5.0*4.5*2.5mm
Description

SMD High Current Common Mode RF Choke Common Mode Choke For Dc Power Supply

Features:

  • Excellent solderability and high heat resistance
  • Excellent terminal strength construction.
  • Packed in embossed carrier tape and can be used by automatic mounting machine.
  • Portable gaming devices, personal navigation systems, personal multimedia devices；
  • Automotive systems;
  • Telecomm base stations.

Applications:

  • Portable gaming devices, personal navigation systems, personal multimedia devices
  • Automotive systems
  • Telecomm base stations.
  • Flat-screen TVs, blue-ray disc recorders, set top boxes
  • DC to AC inverters etc.

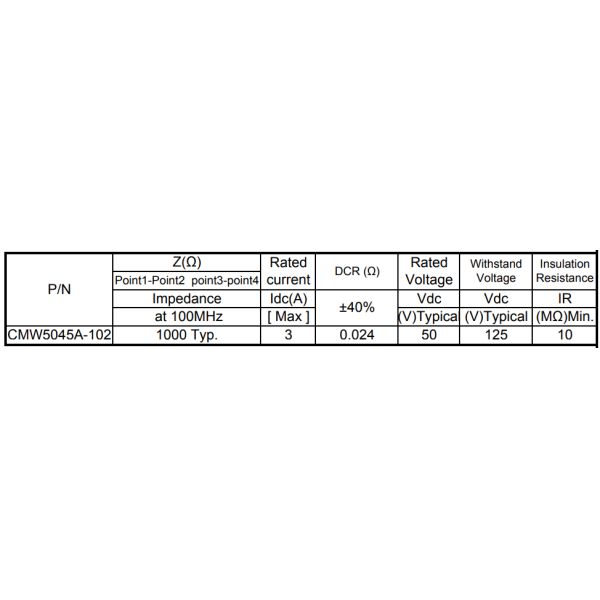

Specification:

tem Description
Category Wire-wound Common Mode Filter
Inductance 1000Ω
Current Rating (Amps) 3A
Size / Dimension 5.0*4.5*2.5mm
Material Copper wire+Ferrite

High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke

High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke


Dimensions:

High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke

Reflow-profile:

High Current Smd Common Mode Choke 3A 1000Ω Dc Common Mode Choke

Electrical Characteristics :

  • Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
  • Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Packaging and Marking:

  • Carrier Tape Dimensions

​Packaging Quantity:

  • Standard Packing Quantity:500 pcs/bag

Note

  • Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
  • Operating temperature -55℃ ~ +125℃.
  • All test data is referenced to 25℃ ambient.

FAQ:

  • Can we customize?

Yes, we specialize in providing customized services.

  • Can you provide samples?

Yes, we can provide samples for free.

  • How long does the sample lead time take?

Sample delivery takes about 7-14 days.
