Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power
Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power
Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power
Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power
Specifications
Brand Name :
Forewell
Model Number :
CLMW8040
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
2000 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
1000/pack
Inductance :
0.82uH~470uH
Rated current :
10.4A~0.65A
Package size :
6.0*6.0*4.5mm
Material :
Copper wire
Usage :
Magnetic Coil Inductor Coil,electrical
Shipping :
DHL UPS FedEx EMS or as customer's request.
Description

125R Ferrite Iron Coil Inductor Magnetic 22uh 15uh 10uh Wire Wound Choke Coil Inductor Smd 220 With Low Dcr

Features:

  • Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  • The use of magnetic iron powder ensure capability for large current.
  • Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  • Ultra low buzz noise, due to composite construction.
  • Low audible core noise.
  • Take up less PCB real estate and save more power.
  • The use of magnetic iron powder ensure capability for large current；

Applications:

  • Telecomm base stations.
  • Notebooks, desktop computers, servers, graphic cards；
  • Portable gaming devices
  • Molding Power Inductor Integrated Inductors SMD For Notebooks Desktop Computers Servers
  • Mobile devices with multifunction such as adding color TV and camera

Specification:

Item Description
Category High Power Inductor
Inductance 0.82uH~470uH
Current Rating (Amps) 10.4A~0.65A
Size / Dimension 6.0*6.0*4.5mm
Material alloy powder

Material:

NO. Componets Material
1 Ferrite Core Ni-Zn Ferrite
2 Wire Plyurethane system enameled copper wire
3 Magnetic Glue Epoxy resin and magnetic powder
4 Plating Electrodes Ag,NI,Sn
5 Top Electrodes Sn alloy
6 Outer Electrodes Top surface solder coating Sn,Ag,Cu

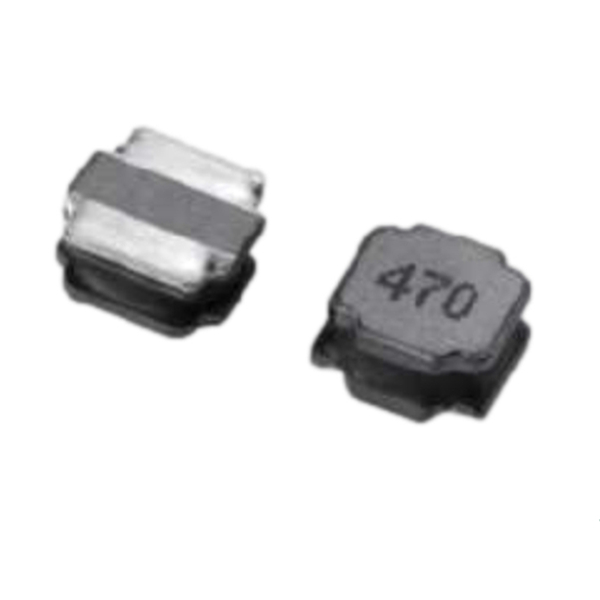

Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power

Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power

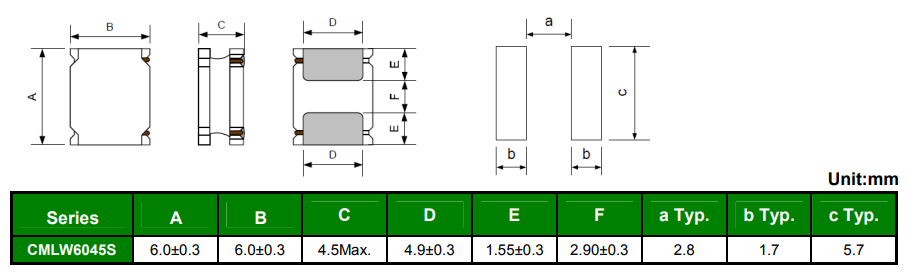

Dimensions:

Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power

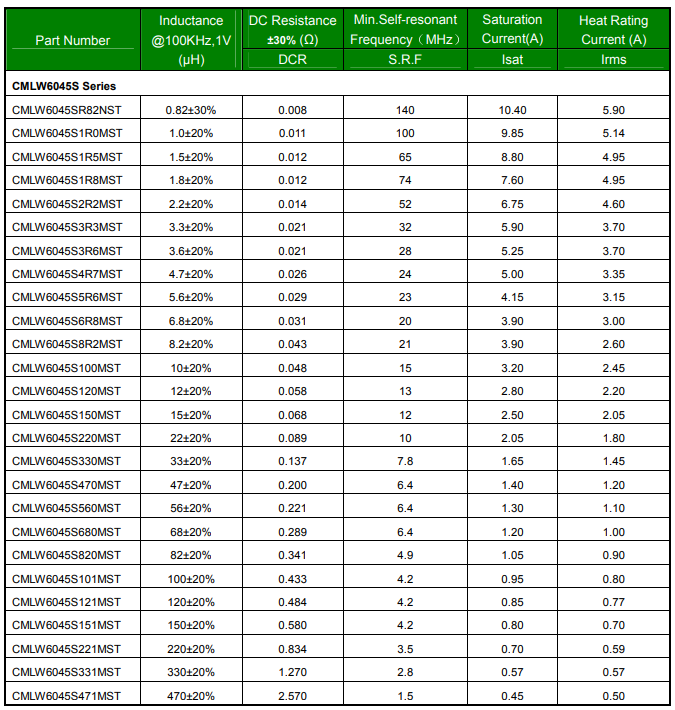

Specification:

Magnetic Ferrite Coil Inductor Choke Iron Powder 15uh Save Power

Packaging Quantity(pcs)

Standard Packing Quantity:1500 pcs/reel

Electrical Characteristics

  • All test data is referenced to 20°C ambient;
  • Rated current: Isat or Irms, whichever is smaller;
  • Isat: DC current at which the inductance drops approximate 30% from its value without current;
  • Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.

RFQ:

  • What are your main products?

Our main products are: Power inductor,SMD inductor coil,NR inductor etc..

  • How do you ship the goods and how long does it take?

We usually ship by DHL, UPS, FEDEX, and TNT. Sample LT is 3-7 days, order LT is 20 days.

  • Do you provide ODM and OEM?

Yes, ODM and OEM are welcomed.
