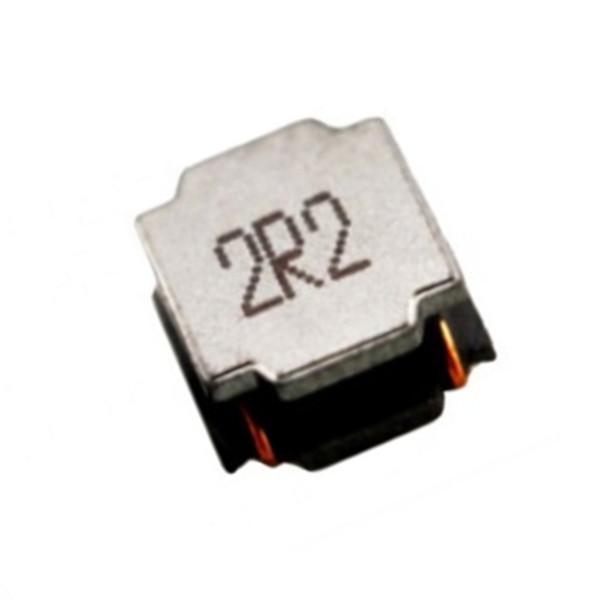

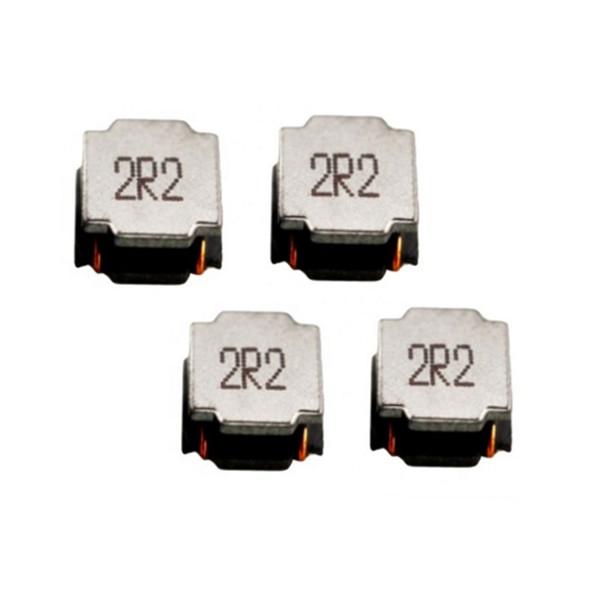

Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power
Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power
Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power
Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power
Specifications
Brand Name :
Forewell
Model Number :
CLMW6020
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
2000 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
2000/pack
Inductance :
0.68uH~47uH
Rated current :
7.5A~0.70A
Package size :
6.0*6.0*2.0mm
Shape :
or custom
Usage :
Magnetic Coil Inductor Coil,electrical
Shipping :
By air or by sea,DHL,SF,FEDEX
Description

Ferrite Iron Coil Inductor Magnetic Shielded Types Wire Wound SMD Power Inductor 33uh For Power Energy Store

Features:

  • Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  • The use of magnetic iron powder ensure capability for large current.
  • Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  • Ultra low buzz noise, due to composite construction.
  • Low audible core noise
  • Ideal for DC-DC converter applications in hand held
  • available on tape and reel for automatic insertion
  • Automotive systems
  • Notebooks, desktop computers, servers, graphic cards；
  • Portable gaming devices, personal navigation systems, personal multimedia devices
  • Set top box；Molding Power Inductor Integrated Inductors SMD For Notebooks Desktop Computers Servers
  • Mobile devices with multifunction such as adding color TV and camera

Specification:

Item Description
Category High Power Inductor
Inductance 0.68uH~47uH
Current Rating (Amps) 7.5A~0.70A
Size / Dimension 6.0*6.0*2.0mm
Material alloy powder

Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power

Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power

Material:

NO. Componets Material
1 Ferrite Core Ni-Zn Ferrite
2 Wire Plyurethane system enameled copper wire
3 Magnetic Glue Epoxy resin and magnetic powder
4 Plating Electrodes Ag,NI,Sn
5 Top Electrodes Sn alloy
6 Outer Electrodes Top surface solder coating Sn,Ag,Cu

Dimensions:

Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power

Specification:

Wire Wound SMD Power Inductor 33uh 7.5A Low Noise High Power

Packaging Quantity(pcs)

Standard Packing Quantity:2500 pcs/reel

Electrical Characteristics

  • All test data is referenced to 20°C ambient;
  • Rated current: Isat or Irms, whichever is smaller;
  • Isat: DC current at which the inductance drops approximate 30% from its value without current;
  • Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.

RFQ:

  • What are your main products?

Our main products are: Power inductor,SMD inductor coil,NR inductor etc..

  • Can we customize?

Yes, we specialize in providing customized services.

  • What is the minimum quantity.

Minimum order 2000pcs.

  • What shipping method will you use?

We can go by ship and UPS, DHL, etc., according to customer requirements
