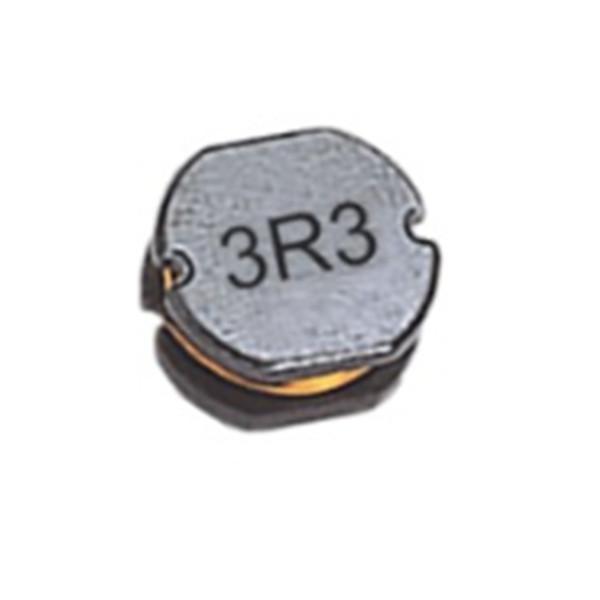

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product
Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product
Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product
Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product
Specifications
Brand Name :
Forewell
Model Number :
CMLF0302
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
3000 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
3000/pack
Type :
CD Power Inductor
Application :
Electronic product
Inductance :
1.0~470uH
Rated current :
3.34A~0.69A
Package size :
3.5*3.2*2.1mm
Material :
Nickel Zinc
Description

Chip Power Inductor SMD Packaging Wire Winding For Electronic Product Drum Core Surface Mount Unshielded Power Inductors

CMLF0302 Series

Features:

  • Excellent solderability and high heat resistance
  • Excellent terminal strength construction.
  • Packed in embossed carrier tape and can be used by automatic mounting machine.
  • Portable gaming devices, personal navigation systems, personal multimedia devices；
  • Automotive systems;
  • Telecomm base stations.

Applications:

  • Power supply for VCR,OA equipment ,LCD television set notebook, DC to DC converters, DC to AC inverters etc.

Specification:

tem Description
Category Drum Core Surface Mount Unshielded Power Inductors
Inductance 1.0~470uH
Current Rating (Amps) 3.34A~0.69A
Size / Dimension 3.5*3.2*2.1mm
Material nickel zinc

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

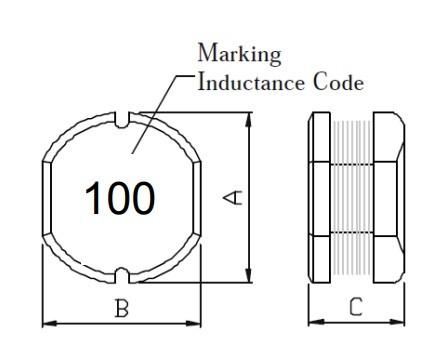

Dimensions:

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Material:

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Electrical Characteristics :

  • Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
  • Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Packaging and Marking:

  • Carrier Tape Dimensions

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

  • Taping Dimensions

Nickel Zinc SMD Power Inductor 0.69A Drum Core Inductor For Electronic Product

Packaging Quantity:

  • Standard Packing Quantity:3000 pcs/reel

Note

  • Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).
  • Operating temperature -55℃ ~ +125℃.
  • All test data is referenced to 25℃ ambient.
