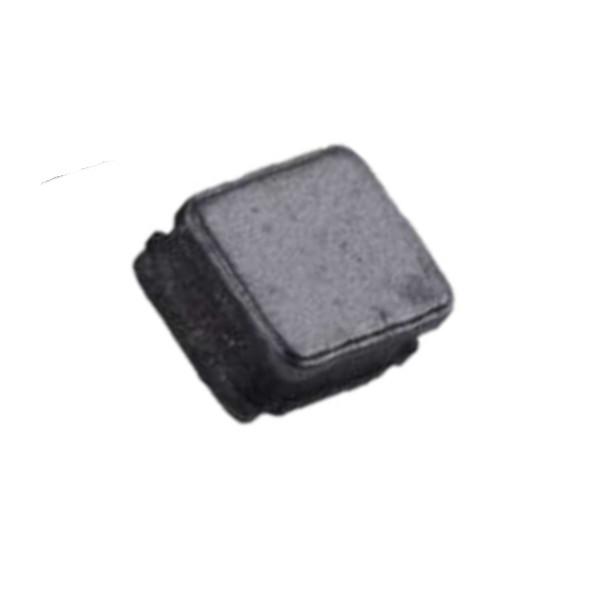

Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A
Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A
Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A
Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A
Specifications
Brand Name :
Forewell
Model Number :
CLMW201610
Certification :
ISO9001,ISO14001
Place of Origin :
China
MOQ :
2000 pcs
Price :
Negotiation
Payment Terms :
T/T,, L/C, D/A, Western Union
Supply Ability :
1000000 pcs per lot
Delivery Time :
3-21days
Packaging Details :
3000/pack
Inductance :
0.24~10uH
Rated current :
5.5A~0.95A
Package size :
2.0*1.6*1.0mm
Material :
Copper Wire
Packing :
inner-plastic tray; outer-carton box
Usage :
Magnetic Coil Inductor Coil,electrical
Description

Inductor 10uH Inductor SMD Laptop Motherboard Choke Coil 4R7 Inductor

Features:

  • Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
  • Metallization on ferrite core results in excellent shock resistance and damage-free durability
  • Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
  • Ultra low buzz noise, due to composite construction
  • Small and low profile inductor;
  • Take up less PCB real estate and save more power.

Applications:

  • Telecomm base stations.
  • Notebooks, desktop computers, servers, graphic cards；
  • Flat-screen TVs, blue-ray disc recorders, set top box；
  • Consumer Products
  • Automotive systems；
  • Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；

Specification:

Item Description
Category SMD Power Inductor
Inductance 0.24uH~10uH
Current Rating (Amps) 5.5A~0.95A
Size / Dimension 2.0*1.6*1.0mm
Material alloy powder

Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A

Material:

NO. Componets Material
1 Core Soft magnetic Matel
2 Wire Plyurethane system enameled copper wire
3 Magnetic Glue Epoxy resin and magnetic powder
4 Substrate FeNiCu/Ag or Ag/Ni/Sn
5 Top Electrodes Sn alloy
6 Marking Nitrocellulose

Dimensions:

Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A

Specification:

Forewell 10uH Inductor SMD , Copper Wire 4r7 Smd Inductor 0.95A

Packaging Quantity(pcs)

Standard Packing Quantity:2000 pcs/reel

Electrical Characteristics

  • All test data is referenced to 20°C ambient;
  • Rated current: Isat or Irms, whichever is smaller;
  • Isat: DC current at which the inductance drops approximate 30% from its value without current;
  • Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.
