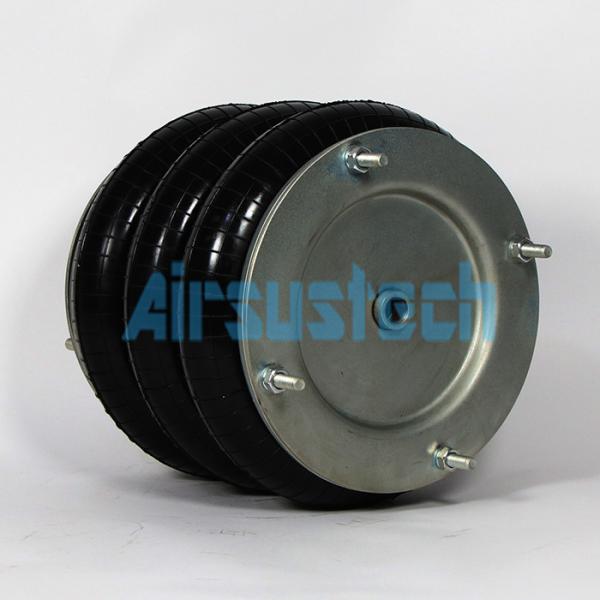

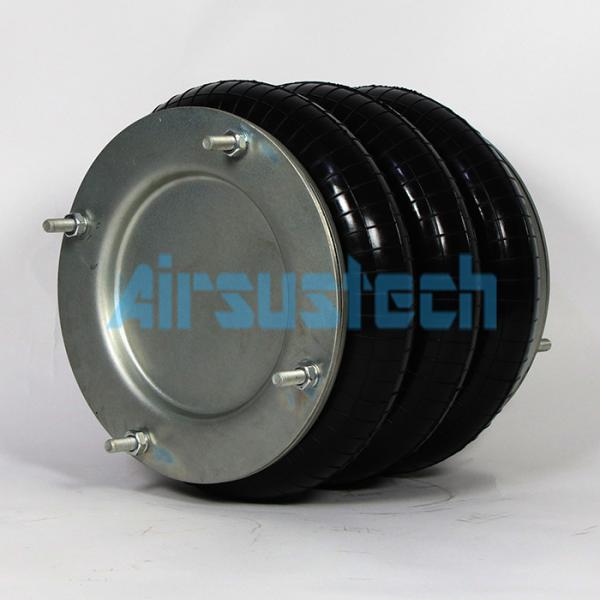

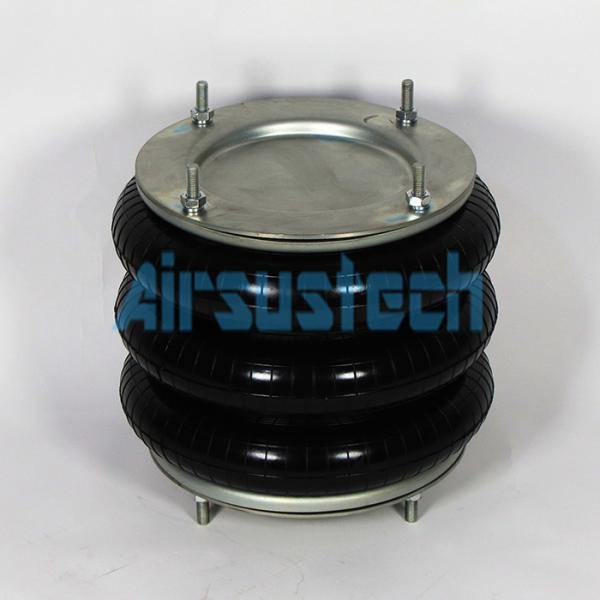

100mm Air Spring Vibration with 4 Pcs M10 Bolts On One Plate Easy Installation

Product Description:

This kind of air spring is produced by AIRSUSTECH (number 3B12X3T). It's quality is good and we offer one year warranty, which is equivalent to Contitech FT 412-32 DS.

Below is the OEM Cross reference for your reference:

• Contitech: FT 412-32 DS
• Norgen M/31123
• Firestone W01 R58 4062
• Goodyear: C2ECH
• Dunlop pneuride: 12X3
• EKER 42330003
• IVE-C 42107595
• Intertruck-A 1700089105
• Intertruck-A 1780115003
• BlackTech 3C302200P03
• Fabio 3DC3002C
• Intertruck-S 8400108SX
• Lohr A06030606

Features:

• Product Name: Industrial Air Springs
• MAX H.: 430MM
• MIN H.: 100MM
• Warranty: 1 Year
• Bolts: 4 Pcs M10 On One Plate
• Shape: Triple Convolutions
• Ideal for: Industrial Air Springs, Bellows Air Bags, Air Shock Absorber

Technical Parameters:

A nut, also known as a blind nut, is an essential component of a machine. It consists of two parts: the top plate screw (nut) and the bottom cover plate screw (nut). The top plate screw has four teeth and is of M10 size, and the same for the bottom cover plate screw.

In addition to the nuts, an air hole is also included for ventilation and air intake, with a G1/2 size. For customisation, a rubber bellows is included, where the top and bottom plate diameters have a width of 260mm, and a maximum diameter of 325mm with a stroke within the range of 100mm to 430mm. Lastly, the installation space required for the machine is 350mm. Bumper block can also be added with PA materials.

Applications:

Industrial Air Springs, with brand name AIRSUSTECH and model number 3B12X3T, are made in Guangzhou, China, and are certified with ISO/TS16949:2009. With a minimum order quantity of 5, the price of each Air Spring is between USD129.9 and USD179.9. For each order, the product is delivered in strong carton boxes or as per customer's requirement, with an estimated delivery time of 5-8 working days. Payment options include T/T, Western Union, Paypal, or others. AIRSUSTECH provides a supply ability of up to 1000 PCS/week. The air springs have a rubber diameter of 300 MM, and are easy to install. The material used is rubber, which can tolerate an operating temperature range from -30°C to +70°C. The air connections are G1/2. AIRSUSTECH Industrial Air Springs are ideal for vibration bellows, air isolating, air cushioning, and shock absorbing applications.

Support and Services:

We provide technical support and service for our Industrial Air Springs to ensure you get the most out of your product. Our team is available to help you with any questions or problems you may have.

We offer a variety of services, including:

• Installation and setup assistance
• Troubleshooting and repair
• Maintenance and preventative care
• Upgrades and customization
• Product training and education

If you need help with your Industrial Air Springs, please don’t hesitate to contact us. Our team of experts is here to help you get the most out of your product.

Packing and Shipping:

Industrial Air Springs Packaging and Shipping:

• Each Industrial Air Spring is carefully packaged in a polyethylene bag to ensure safe delivery.
• Securely strapped to a pallet for shipment.
• We use reliable shipping carriers to ensure on-time delivery.
