EB-385-115 193789 Air Bag Cylinder Festo 2 Convolutions Industrial Air Springs For Air Suspension Seats

Cross Reference

Specifications and Tecnical Data

B1±0.2(Screw center distacne): 158.8mm
D1∅max.(Rubber bellow max outer diameter):385mm
D2∅(Required fitting space):400mm
D3∅(Cover plate diameter):287mm
EE(Compressed air connection): G1/4
H2 min(Minimum installation height): 51mm
H3 max.(Maximum extended end position):175mm
Double-bellows cylinder
Cylinder Type: Bellows Cylinder
Mode of Operation:Single-Acting
Operating Medium: Compressed Air
Operating Pressure: 0...8bar
HS Code: 8708809000
Sample: Available
Condition: 100% New
Packing: Strong cartons
Applications: Industrial machines or others
Warranty: 1 Year

Type: Industrial air springs

When using industrial air springs, it is important to pay attention to the following

1. Inflate the air springs to the recommended pressure: Overinflating or underinflating the air springs can lead to poor ride quality, decreased performance, or even suspension damage.

2. Avoid exceeding the load capacity: Air springs have a maximum load capacity, and overloading them can result in the suspension system failing, or the air springs bursting.

3. Keep the air springs free from damage: Sharp objects or debris can puncture or damage the air springs, causing them to leak or fail.

4. Monitor the air spring performance: Checking the air spring pressure and condition regularly can alert you to any potential issues before they become a serious problem.

5. Follow the manufacturer's instructions: Always refer to the manufacturer's instructions and recommendations when installing, maintaining, or operating air springs.

Other replacement we could offer

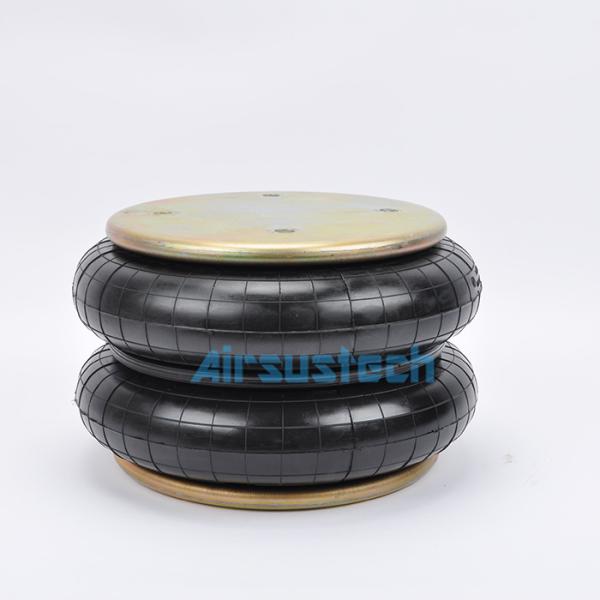

The indsutrial air springs picture
