Product Description:

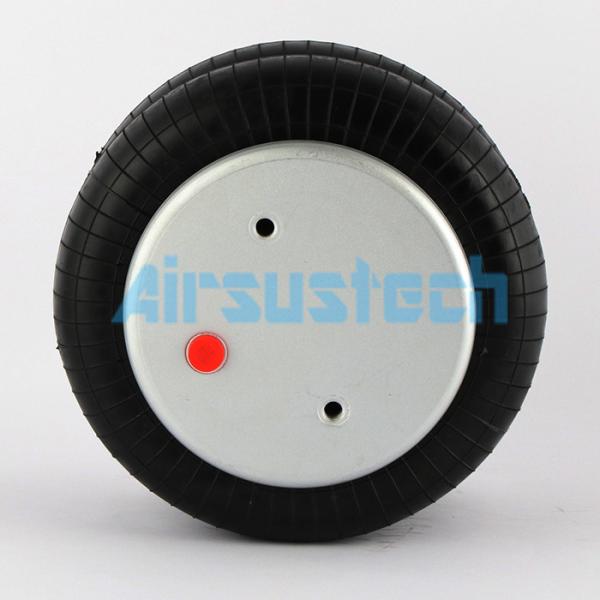

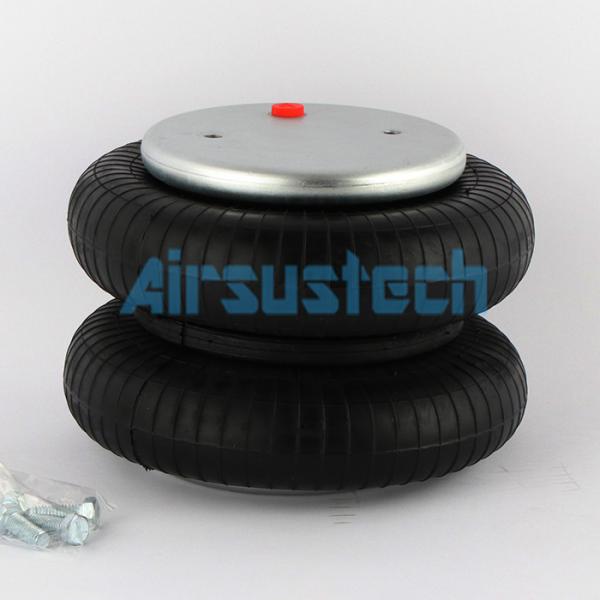

SP2B12R5 Phoenix Air Spring 2.95 Kg FD 200-19 Contitech Natural Rubber Air Bellow Grid Lines Inside

This kind of air spring is produced by AIRSUSTECH, the number of AIRSUSTECH is 2B6910-G1/4 M10, the quality is good and we offer one year warranty. it is cross to Phoenix Air Spring double Convoluted brand SP 2 B 12 R.

The air spring is made from several materials. Rubber or synthetic rubber is the basic material of the air spring, which has good elasticity and wear resistance. Rubber can be formulated according to different needs to achieve specific elasticity and durability requirements.

In addition, fiber materials are often used to enhance the structural strength and stability of air springs. Common fiber materials include glass fiber and carbon fiber.

To control the flow and pressure regulation of gas inside the air spring, the valves and connections are usually made of metal or plastic.

Finally, the gas filled in an air spring is usually air, although other gases, such as nitrogen, may sometimes be filled. The pressure of the filling gas determines the elasticity and load-bearing capacity of the air spring.

Features:

The following is a list of cross part numbers from a variety of manufacturers:

• Firestone: W01-M58-7894
• Contitech: FD 200-19 P04 1/4 M10
• Goodyear: 2B9-287
• Phoenix: SP 2B12R5, S09208
• Airkraft: 113549
• SAF: 4.229.1004.00
• Pirelli: T20, 86660
• Taurus: Kf216

Technical Parameters:

Data:

• Static Height (mm): 100
• Pressure (bar): 1357, 12.0, 3667
• Force (kN): 2.27, 17.3, 2.75
• Spring Rate (N/cm): 977, 2296, 5026
• Natural Frequency (Hz): 3.28, 2.84, 2.68

Measurements:

1. • Static Height (mm): 100
   • Pressure (bar): 1357
   • Force (kN): 2.27
   • Spring Rate (N/cm): 977
   • Natural Frequency (Hz): 3.28
2. • Static Height (mm): 100
   • Pressure (bar): 12.0
   • Force (kN): 17.3
   • Spring Rate (N/cm): 2296
   • Natural Frequency (Hz): 2.84
3. • Static Height (mm): 100
   • Pressure (bar): 3667
   • Force (kN): 2.75
   • Spring Rate (N/cm): 5026
   • Natural Frequency (Hz): 2.68

Applications:

Customization:

We offer Phoenix Air Spring with brand name AIRSUSTECH and model number 2B6910-G1/4 M10. It has been certified by ISO/TS16949:2009 and the minimum order quantity is 2 pieces. The price ranges from USD59.9/PC to USD89.9/PC, and the packaging details depend on customers' requirements. The delivery time is 5-8 working days, and the payment terms include T/T, Western Union, Paypal or other terms. We can provide 1000 pieces of this product each week. The diameter max. is 251 Mm, the DIA. of rubber size is 224 Mm, the plate DIA. is 160 Mm, and it has two M10 bolts on one plate. It is mainly used for Machine Air Spring, Phoenix Air Cushion, Phoenix Air Bags.

Packing and Shipping:

Phoenix Air Spring products are packaged securely with a corrugated cardboard box, shockproof foam, and bubble wrap. The box is printed with the logo, product name, and number of items included in the package. All products are shipped with tracking numbers, and customers are notified of their order status and shipment tracking number via email.
