A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B53022
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber + Steel
Certificate :
ISO/TS16949:2009
Warranty :
one year
Number of convolutions :
2
Packing :
Neutral Box Or As Customers' Request
Type :
Convolutede Air Spring
Application :
Industrial Or Others
Pressure Ability :
0.2-0.8 M PA
HS Code :
8708809000
Cross Reference :
A01-760-6401 Firestone
Description

A01-760-6401 Firestone Ride-Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF

Cross Reference

Firestone A01-760-6401
Firestone A01 760 6401
Firestone A017606401
Firestone AO1-760-6401
Firestone AO1 760 6401
Firestone AO17606401

Specifications and Detailed Technical Parameters

1. Max. OD: 203mm

2. Natural Rubber Bellow Diameter: 176mm

3. Mounting threads on top plate: 3/4-16UNF

4. Mounting threads on bottom plate: 3/8-16UNC

5. Min. Height: 89mm

6. Max. Height: 234mm

7. Air inlet/Air fittings/ Air hole: 1/4NPTF

8. Bumper block: Without

9. Girdle hoop: 1pcs

10. Top cover plate: 135mm

11. Bottom cover plate: 135mm

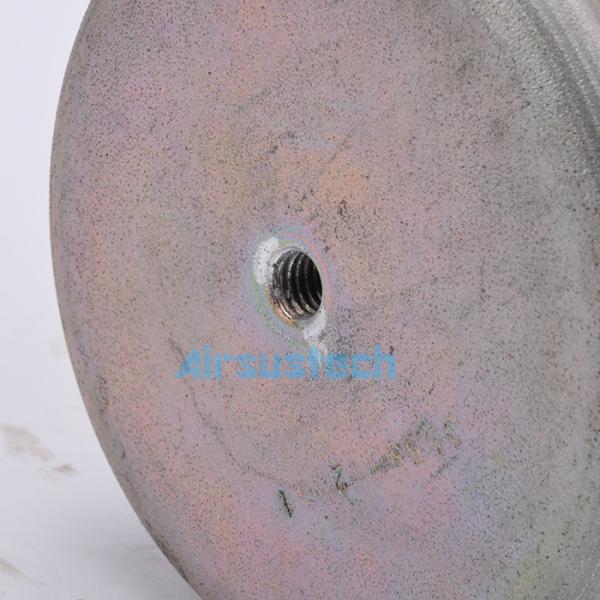

The related picture
A01-760-6401 Firestone Ride Rite Replacement Air Spring Double Convoluted Air Bag With 1/4 NPTF

Other model

Firestone Part No W21-760-6781; W217606781

Firestone Part No W01-358-6784; WO13586784

Firestone Part No W01-358-6805; WO13586805

Firestone Part No W01-358-6897; WO13586897

Firestone Part No W01-358-6900; WO13586900

Firestone Part No W01-358-6902; WO13586902

Firestone Part No W01-358-6905; WO13586905

Firestone Part No W01-358-6910; WO13586910

Firestone Part No W01-358-6927; WO13586927

Firestone Part No W01-358-6941; WO13586941

Firestone Part No W01-358-6948; WO13586948

Firestone Part No W01-358-9651; WO13589651

Firestone Part No W01-358-7135; WO13587135

Firestone Part No W01-358-7136; WO13587136

Firestone Part No W01-358-7140; WO13587140

Firestone Part No W01-358-7180; WO13587180

Firestone Part No W01-358-7184; WO13587184

Firestone Part No W01-358-7208; WO13587208

Firestone Part No W01-358-7224; WO135867224

Firestone Part No W01-358-7400; W013587400

Firestone Part No W01-358-7403; W013587403

Firestone Part No W01-358-7410; W013587410

Firestone Part No W01-358-7424; W013587424

Firestone Part No W01-358-7443; W013587443

Firestone Part No W01-358-7472; W013587472

Firestone W01-358-7504; W013587504

Firestone Part No W01-358-7550; W013587550

Firestone Part No W01-358-7555; W013587555

Firestone Part No W01-358-7782; W013587782

Firestone Part No W01-358-7784; W013587784

Firestone Part No W01-358-7795; W013587795

Firestone Part No W01-358-7897; W013587897

Firestone Part No W01-358-7995; WO13587995

Firestone Part No W01-358-7996; WO13587996

Firestone Part No W01-358-8008; WO13588008

Firestone Part No W01-358-8018; WO13588018

Feature

Keeps the vehicle level: improves steering control and braking, levels headlight beams and reduces tire wear
Horizontal eccentric load, independent inflation valve allows left and right adjustment
Reduced Suspension Fatigue: Prevents leaf springs from permanently sagging under repeated or constant loads
Reduced bottoming out: Protective air cushions soften contact between axle and frame
Increases vehicle stability, absorbs road shocks, and provides ideal ride conditions for passengers and load
One year warranty
