Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B0335
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Quality Assurance :
12 Months
Material :
Rubber and mental
Air Inlet :
3/8 NPT
Sample :
Available
Cross Reference :
Firestone A01 760 0335
HS Code :
8708809000
Application :
Industrial Machines or others
Convolutions :
Double Convoluted
Description

Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion


Cross Reference

Firestone A01-760-0335

Firestone A01 760 0335

Firestone A017600335

Firestone AO1-760-0335

Firestone AO1 760 0335

Firestone AO17600335

Firestone a01-760-0335

Firestone a01 760 0335

Firestone a017600335

Firestone ao1-760-0335

Firestone ao1 760 0335

Firestone ao17600335

Air Spring spcifications and data parameters: 2B0335

Max. OD: 203mm

Air inlet/Air hole/Air fittings: 3/8NPT, Offset, 33mm

Top plate studs: 2× 3/8-16UNC

The screw center distance on top plate: 70mm

Bottom plate blind nuts: 2× 3/8-16UNC

The screw center distance on bottom plate: 70mm

Min. Height: 75mm

Max. Height: 230mm

Top cover plate diameter: 132mm

Bottom cover plate diameter: 132mm

Bummper/Bumper block: Without

Girdle hoop/Ring: 1piece

Other 224C Firestone style air spring replacement we could offer

Firestone Style Paremeters Reference Cross Reference Products Details
Style 224C Compressed Height 3.00ʺ
Extended Height 8.91ʺ
Ride Height 5.50ʺ - 7.00ʺ
Max. Diameter 7.52ʺ		 Firestone 6401

3/4''-16, 1/4NPT Combo Stud and Alignment Pin on top plate

1pcs 3/8''-16 Blind nuts on bottom plate
Firestone 6873

2pcs 3/8''-16×3/4‘’ Studs on top plate, 1/4NPT Offset Air Inlet

1pc 3/8''-16×5/8‘’ Blind nuts on bottom plate
Firestone 6859

2pcs 3/8''-16×3/4‘’ Studs on top plate, 1/4NPT Offset Air Inlet

2pcs 3/8''-16×5/8‘’ Blind nuts on bottom plate
Firestone 6776

2pcs 3/8''-16×3/4‘’ Studs on top plate, 1/2NPT Offset Air Inlet

1pc 3/8''-16×5/8‘’ Blind nuts on bottom plate
Style 268C Compressed Height 2.80ʺ
Extended Height 7.00ʺ
Ride Height 4.50ʺ- 5.50ʺ
Max. Diameter 6.40		 Firestone 6764

2pcs 3/8"-16 x 3/4" STUDS on top plate, 1/4 NPT

2pcs 3/8"-16 x 3/4" STUDS on bottom plate
Firestone 6762

3/8"-16 x 3/4" STUDS on top plate

3/8"-16 x 5/8" BLINDNUT on bottom plate
267C 1.5 Compressed Height 2.80ʺ
Extended Height 8.30ʺ
Ride Height 5.50ʺ - 6.50ʺ
Max. Diameter 6.60ʺ		 Firestone 6397

1/8 NPT, 5/8" - 18 x .88" COMBO STUD and Alignment Pin on top plate

1pc 3/8" - 16 x 5/8" BLINDNUT on bottom plate
Firestone 6410

1/8 NPT, 5/8" - 18 x 1.75" COMBO STUD and Alignment Pin on top plate

1pcs 3/8" - 16 x 5/8" BLINDNUT
Firestone 6781

2pcs 3/8" - 16 x 3/4" STUDS on top plate, 1/4 NPTAir inlet

1pc 3/8" - 16 x 5/8" BLINDNUT on bottom plate
Firestone 6782

2pcs 3/8" - 16 x 3/4" STUDS, 3/8 NPTAir inlet

1pc 3/8" - 16 x 5/8" BLINDNUT
Firestone 6784

1pcs 3/8" - 16 BLINDNUT On top plate, 1/4 NPTAir inlet

1pc 3/8" - 16 x 5/8" BLINDNUT on bottom plate
Firestone 7882

2pcs 3/8" - 16 x 3/4" STUDS on top plate, 1/2 NPTAir inlet

1pcs 3/8" - 16 x 5/8" BLINDNUT on bottom plate

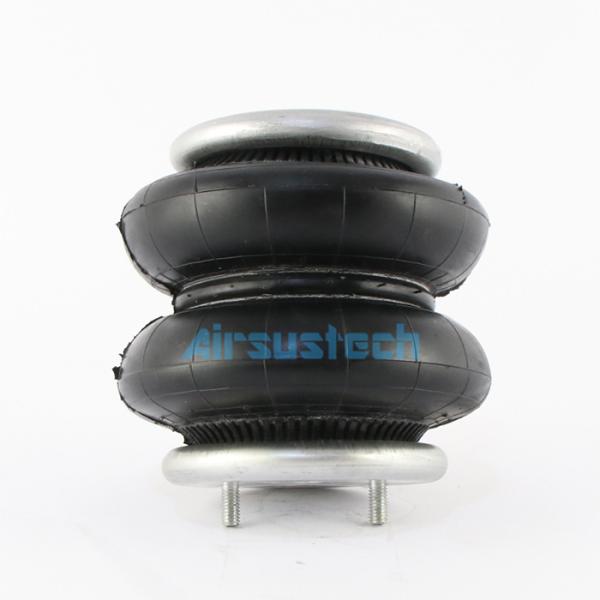

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B0335
Firestone AO1-760-0335 A01 760 0335 Ride-Rite Replacement Air Spring AMERICAN Pick-up Air Suspenion
