Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B120-17F
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong, China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber + Steel
Certificate :
ISO/TS16949:2009
Warranty :
one year
Packing :
Neutral Box Or As Customers' Request
Type :
Double Convoluted Air Spring
HS Code :
8708809000
Application :
Modified Car Airbag Or Others
Convolutions :
Double
Sample :
Available
Description

Aluminium Flange Type Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag


OEM No.

FD 120-17F
FD120-17F
FS12017F
2S120-17F
2S120 17F
2S12017F

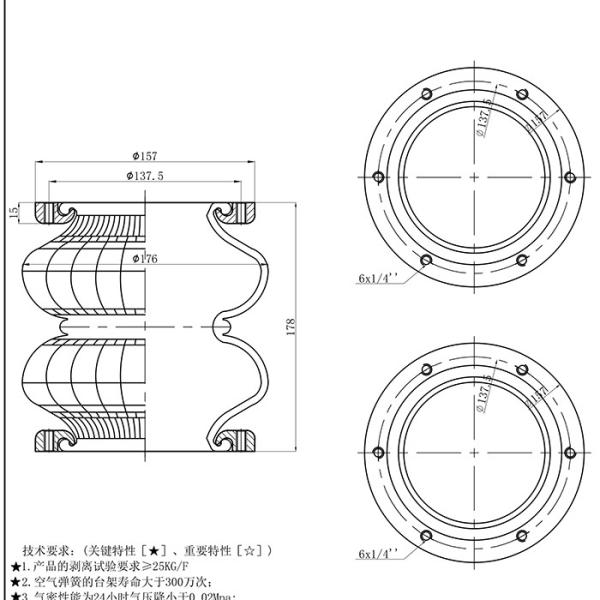

Technical data

The flange blind nuts on bottom 6pcs×1/4''
The screw center distance on top plate 137.5mm
The flange blind nuts on bottom 6pcs×1/4''
The screw center on bottom plate 137.5mm
The top plate diameter 157mm
The bottom plate diameter 157mm
Design height 178mm
Rubber bellow diameter 176mm
The opening diameter 125mm
Girdle hoop 1pc

Other model we could offer

2B12017

Reference

Contitech FD 120-17

Airkraft 113053
: 2B-181

Product details

G3/4 Centered Air Inlet, Bead Plate

2B12017-1/4

Reference

Firestone W01-M58-6353

Contitech FD 120-17

Airkraft : 113054

: 2B-181

Product Details

G1/4 Centered Air Inlet, Bead Plate

2B12017-G3/8
Reference

Contitech FD 120-17

Product details

G3/8 Centered air inlet, Bead Plate

2B12017-RC3/8
Reference

Contitech FD 120-17

Product details

RC3/8 Centered air inlet, Bead Plate

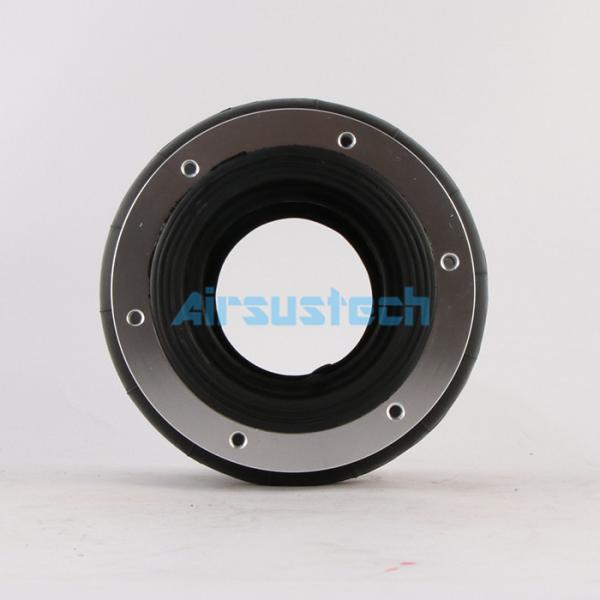

The related picture

Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag

Double Convoluted Suspension Air Springs 137.5mm Screw Center Distance Air Lift Ride Bellow Bag
