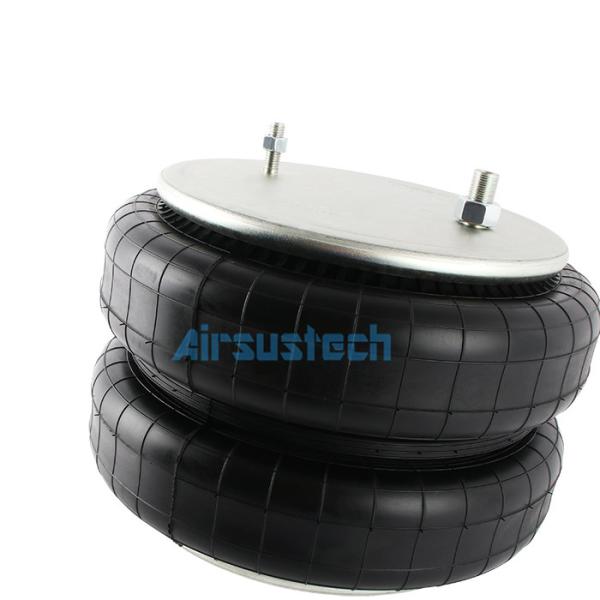

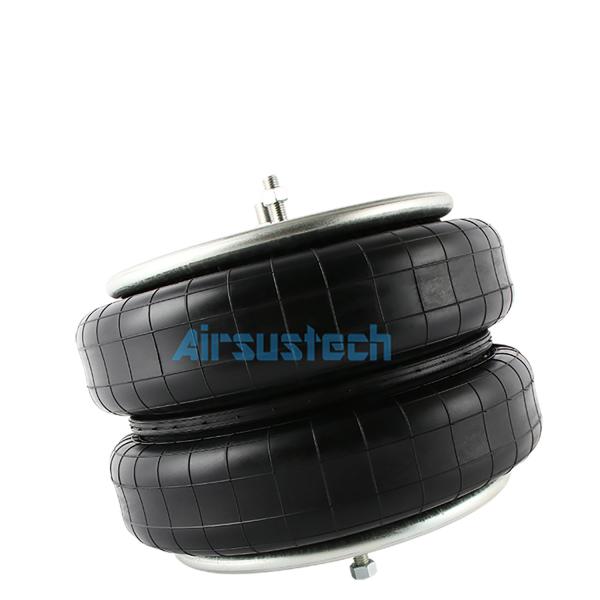

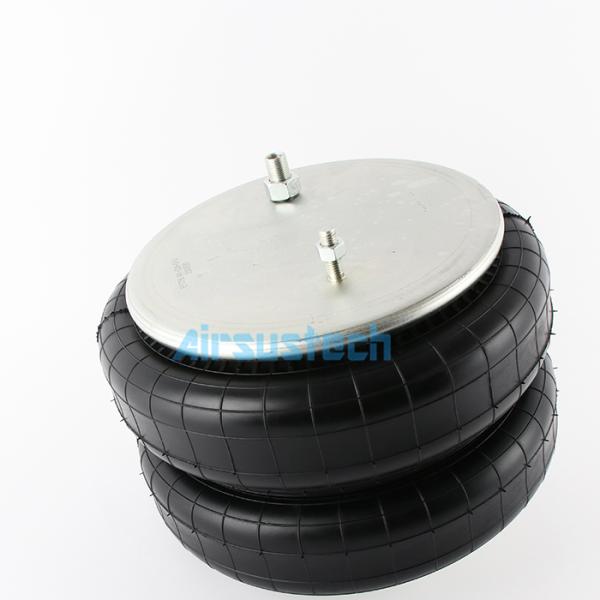

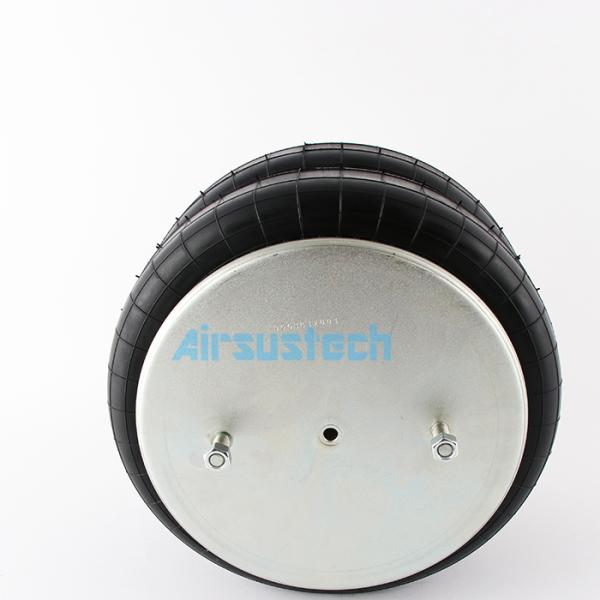

Goodyear Super Cushion 2B9-220 2B9220 Double Convoluted Industrial Air Springs Repalcement

Cross Reference

Specifications and Technical Parameters

Top plate studs/bolts qty: 2pcs

Bottom plate studs/bolts qty: 2pcs

Screw center distance: 3.50''

Top cover plate diameter: 6.31''

Bottom cover plate diameter: 6.31''

Min. height: 3.8

Max. height: 10.8

Max. OD: 9.8

Rubber bumper: With

Girdle hoop: 1 piece

Two ply Bellows

Double Convoluted/ Convolution industrial air springs

Rubber and Steel Material

Double Convolution
2-Ply Bellows

Other goodyear air spring replacement we could offer

3B12-304, 1/4''-18 NPTF Offset 2.87'', NO Bumper
3B12-305, 3/4''-14 NPTF Offset 2.87'', NO Bumper
3B12-308, 1/4''-18 NPTF Centered, NO Bumper
578933100 FLEXMEMBER ONLY

3B12-325, 1/4''-18 NPTF Offset 2.87'', NO Bumper
3B12-326, 3/4''-14 NPTF Offset 2.87'', NO Bumper
578933103 FLEXMEMBER ONLY

3B14-354, 1/4''-18 NPTF Offset 3.125'', NO Bumper
3B14-351, 1/4''-18 NPTF Offset 3.125'', With Bumper

3B14-361, 3/4''-14 NPTF Offset 3.125'', NO Bumper

3B14-353, 3/4''-14 NPTF Offset 3.125'', With Bumper

3B14-403, 1/4''-18 NPTF Offset 3.125'', NO Bumper

578933350 FLEXMEMBER ONLY

3B14-450, 1/4''-18 NPTF Offset 3.125'', NO Bumper
3B14-453, 1/4''-18 NPTF Offset 3.125'', With Bumper

3B14-374, 3/4''-14 NPTF Offset 3.125'', NO Bumper

3B14-411, 3/4''-14 NPTF Offset 3.125'', With Bumper

3B15-375, 1/4''-18 NPTF Offset 3.125'', NO Bumper
3B15-376, 1/4''-18 NPTF Offset 3.125'', With Bumper

3B15-377, 3/4''-14 NPTF Offset 3.125'', NO Bumper

3B15-378, 3/4''-14 NPTF Offset 3.125'', With Bumper

578933377 Flexember only

1S3-013, 1/8"-27-NPTF Combo stud, NO Bumper

About industrial air springs

Industrial air springs are a type of pneumatic actuator that uses compressed air to provide a cushioning effect and absorb shock in a variety of industrial applications. They are commonly used in heavy-duty equipment and machinery to isolate vibration, reduce noise, and control movement. Some common applications of industrial air springs include isolating or cushioning the impact of high-frequency vibrations in machinery, preventing shock damage to sensitive equipment, and stabilizing loads in manufacturing processes. They can also be found in automotive suspension systems and other vehicle applications.

The picture of AIRSUSTECH suspension air springs/ industrial air springs
