Replaces Limo Airforce J 168156J-2 Double Convoluted Industrial Suspension Systems 70mm Screw Center Distance Air Spring

Cross Reference

Specifications and Detailed Technical Parameters

1. Top plate

2pcs × M10× 1.5 Blind Nuts, the screw center distance is 70mm

2. Bottom plate

2pcs × M10 ×1.5 Blind Nuts, the screw center distance is 70 mm

3. Air Inlet/Air fittings/ Air hole

Rc1/4, Centered

4. Height: 163mm

Working Stroke: 75mm-170mm

5. Rubber Bellow diameter: 165mm

6. Cover plate diameter

135mm Top Cover Plate

135mm Bottom Plate

7. Without Rubber Bumper

8. One piece of Girdle hoop

Other model we could offer

130070J-1, 150086J-1, 188118J-1, 215128J-1, 215128J-13, 235118J-1, 235118J-13, 260135J-1, 260135J-13, 280138J-1, 300130J-1, 320128J-1, 360152J-1, 380152J-1

130118J-2, 160174J-2, 168156J-2, 200160J-2, 230220J-2, 230220J-23, 235160J-2, 235160J-23, 250190J-2, 250190J-23, 280220J-2, 300180J-2, 310220J-2, 330220J-2, 350262J-2, 360220J-2, 380228J-2

250272J-3, 250272J-33, 255242J-3, 310312J-3, 330312J-3, 360312J-3, 380322J-3

Usage

Through the height control valve, the working height of the air spring can be kept constant under any load, and the spring can have different heights under the same load. So it is beneficial to adapt to various structures. Require.

The air spring has nonlinear characteristics, and its characteristic line can be designed as an ideal curve according to the needs

The stiffness of the air spring changes with the load, so its natural vibration frequency does not change under any load, making the spring device have almost the same performance.

The stiffness of the air spring can be selected by changing the volume of the additional air chamber according to the needs, and it can be selected very low.

The same air spring can simultaneously bear axial and radial loads, and can also transmit torque. Do Air Springs Need Shock Absorbers? By adjusting the internal pressure, different bearing capacities can be obtained, so it can meet the needs of multiple loads.

Good absorption of high frequency vibration and sound insulation performance.

• Die casting
• Replace steel springs
• Industrial suspension systems
• Textile machines
• Paper machines
• Vibrating machines
•Press tools and forging
• Vibration protection
• Lifting table

Advantages compared to pneumatic cylinders

1. Lower purchase cost
2. Reduced maintenance requirements (no moving parts or seals)
3. Easy installation
4. Space saving.

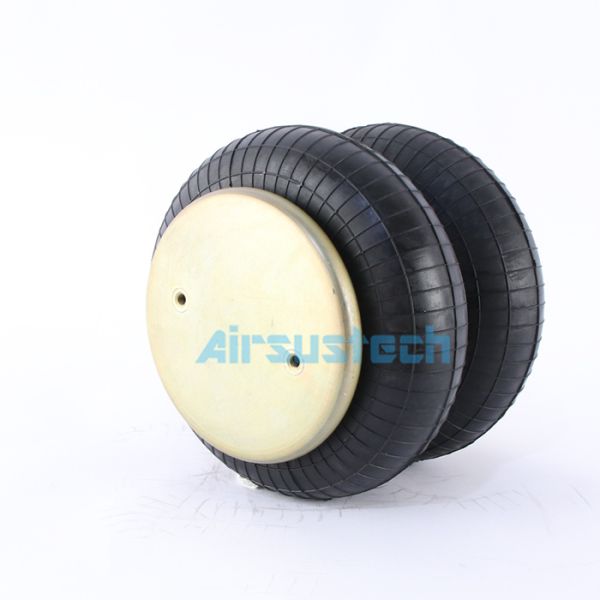

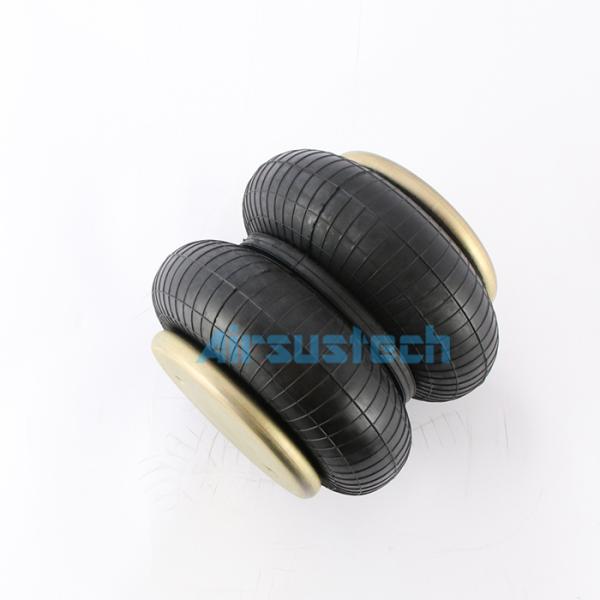

Product Photo
