Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1K130090
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Quality Assurance :
12 Months
Material :
Rubber and Steel
Sample :
Available
Cross Reference :
Goodyear 1B5-510
HS Code :
8708809000
Application :
Plastic Pellet Compaction Systems Or Other Industrial Machines
Convolutions :
Single Convoluted
Screw :
M8
Air Inlet :
ZG 1/4''
Cover Plate :
85mm
Description

Goodyear Super Cushion 1B5-510 1B5510 Single Convoluted Industrial Air Springs For Plastic Pellet Compaction Systems


Cross Reference

Goodyear super cushion 1B5-510
Goodyear 1B 5 510
Goodyear 1B5510

Enidine Imperial YI-1B5-510
Enidine Imperial YI 1B5 510
Enidine Imperial YI1B5510


Air Spring spcifications and data parameters: 1K130090

Air inlet

ZG 1/4'', Centered

Blind nuts on top plate

2pcs x M8

The distance between two blind nuts on top plate

44.5mm

Blind nuts on bottom plate

2pcs x M8

Screw center distance on bottom plate

44.5mm

Top cover plate diameter

85mm

Bottom cover plate diameter

85mm

Height

50-120mm

Rubber bellow diameter at 0.7MPA

150mm

Girdle hoop

NO

Rubber bumper

Without

Convolutions

Single

HS Code

8708809000

Type

Industrial air spring

Applications

Plastic Pellet Compaction Systems Or Other industrial machines

Sample

Available



Industrial air springs can be used in plastic pellet compaction systems

Air springs are a type of pneumatic suspension system that use compressed air to provide cushioning and shock absorption. They are commonly used in vehicles to improve ride comfort and handling, but they are also used in other applications such as plastic pellet compaction systems . The air springs are used to isolate the compaction process from external vibrations and shock, and to provide a consistent compaction force. The plastic pellets are compressed by the air springs and then baled for storage or transport. The use of air springs in plastic pellet compaction systems can help to improve the efficiency and consistency of the compaction process.



Other goodyear air springs replacement we could offer

2B12-425, 1/4”-18 NPTFOffset 2.87'', No bumper
2B12-429, 3/4”-14 NPTFOffset 2.87'', No bumper
2B12-309, 1/4”-18 NPTFOffset 2.87'', With bumper
2B12-318, 3/4”-14 NPTFOffset 2.87'', With bumper
2B12-437, 1/4”-18 NPTF Centered, No bumper
578923309 Flexmember Only

2B12-416, 1/4”-18 NPTFOffset 2.87'', No bumper
2B12-419, 3/4”-18 NPTFOffset 1.75'', No bumper
2B12-440, 1/4”-18 NPTF (Inside) of combo stud, With bumper
578923315 Flexmember Only

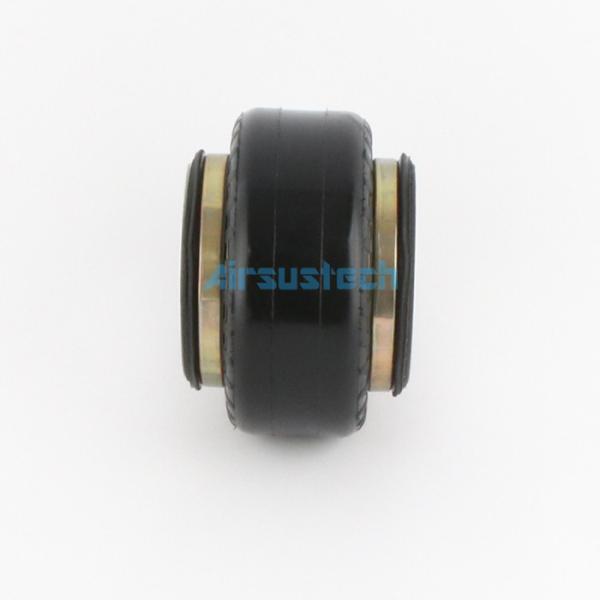

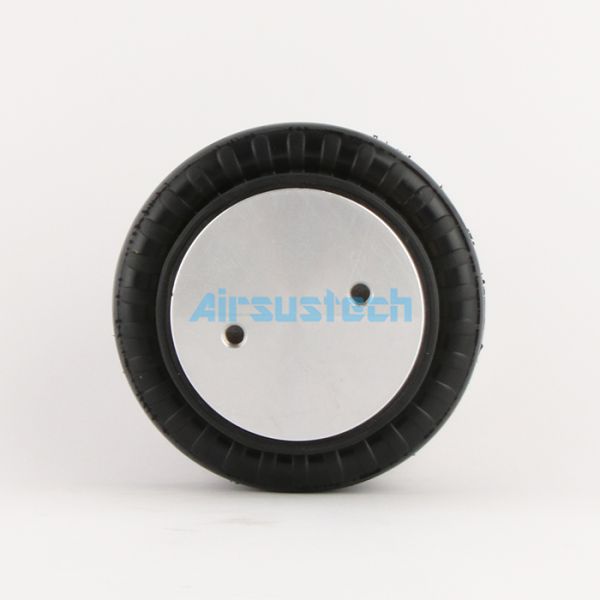

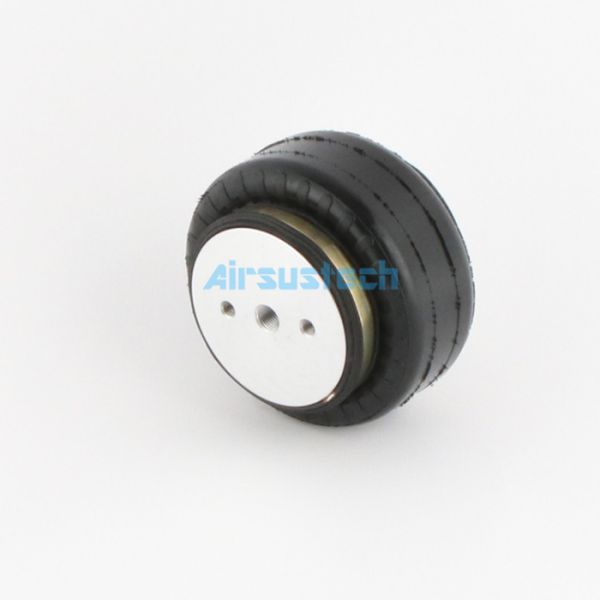

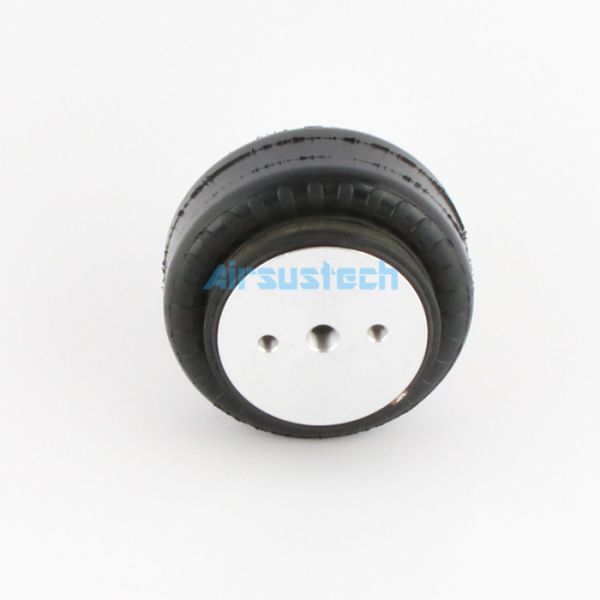

The reated picture of 1K130090 industrial air springs
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
Goodyear Super Cushion Industrial Air Springs 1B5-510 1B5510 For Plastic Pellet Compaction Systems
