AIRKRAFT 2B-301 113309 FIRESTONE W01-M58-6200 Air Bags NORGREN PM/31122 (12x2) Industrial Air Springs For Cranes


Cross Reference

Specifications and Detailed Technical Parameters

Rubber bellow diameter: 300mm

Height: 181mm

Top/Bottom plate blind nuts: 2pcs x M8

The screw center distance: 157.5mm

Air inlet/ air fitting: G3/4, Offset, 73mm

Rubber bumper: Without

Girdle hoop: 1piece

Style: Air spring assembly / air spring complete

HS Code: 8708809000

Sample: Aavailable

Convolutions: Double

Applications: Cranes Or Other Industrial Machines

When industrial air springs use in cranes

Air springs or air suspension systems can be used in cranes to provide counterbalance and improve stability. Air suspension systems use compressed air, rather than traditional coil springs, to support the weight of the crane. They can be adjusted as needed to provide optimal support, and can help to reduce vibrations and other movements that can occur during operation. In general, air suspension systems are more commonly used in larger, heavy-duty cranes, where the added stability and support is particularly beneficial.

Other Airkraft 2B-301 Industrial air spring style replacement we could offer and reference

Airkraft 113308 / 11120051

Reference

FIRESTONE W01 M58 6381 / W01M586381 /W01-M58-6381 / WO1 M58 6381 / WO1M586381 /WO1-M58-6381
CONTITECH FD 330-22
PHOENIX 2B 22R
DUNLOP(FR) S 12202

Airkraft 113333/ 11120063

Reference

FIRESTONE W01 358 7400 / W013587400 / W01-358-7400/ WO1 358 7400 / WO13587400 / WO1-358-7400
CONTITECH FD 330-22 313
GOODYEAR 2B12-309
GOODYEAR FLEX 578-92-3-309
TAURUS KF 222-7400
HENDRICKSON S-1013

Airkraft 113490 / 11120123

Reference

FIRESTONE W01-358-7180 / W01 358 7180/ W013587180/ WO1-358-7180 / WO1 358 7180/ WO13587180
CONTITECH FD 330-22 363
GOODYEAR 2B12 425
GOODYEAR FLEX 578-92-3-309

Airkraft 113491 / 11120124

Reference

FIRESTONE W01-358-7184 / W01 358 7184 / W013587184 / WO1-358-7184 / WO1 358 7184 / WO13587184
GOODYEAR 2B12-429
CONTITECH FD330-22 780

Airkraft 113492 / 11120125

FIRESTONE W01-358-7185 / W01 358 7185 / W013587185/ WO1-358-7185 / WO1 358 7185 / WO13587185
GOODYEAR 2B12- 318 / 578 9 2 3309

Airkraft 113357 / 11120186

FIRESTONE 22 T3
GOODYEAR 556 2 2 8416

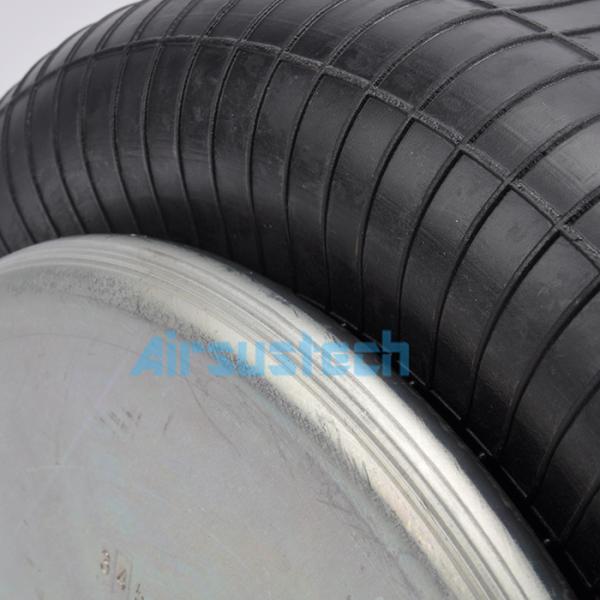

The related picture of industrial air springs
