Versatile Air Suspension Components 2B9-229 Goodyear W01-358-6897 Firestone Rubber Air Spring

Product Description:

Suspension air springs are a great way to improve the handling and ride quality of your vehicle. The air struts are designed to provide a comfortable ride while ensuring maximum control of your vehicle. Featuring a 160 mm cover plate diameter, they are easy to install and come with a black rubber and white zinc iron cover plate. With a total assembly weight of 3.6 kg, these air struts are a great choice for those looking for a reliable suspension system. In addition, they also feature a Cross Goodyear Top Plate (ASA-92-8-113) for even more stability and comfort.

If you are looking for a reliable and comfortable suspension system, Suspension Air Springs are the perfect choice. With easy installation and a lightweight design, these air struts provide excellent handling and ride quality while ensuring maximum control over your vehicle. Additionally, the Cross Goodyear Top Plate offers increased stability and improved comfort, making them a great choice for those looking to upgrade their suspension system.

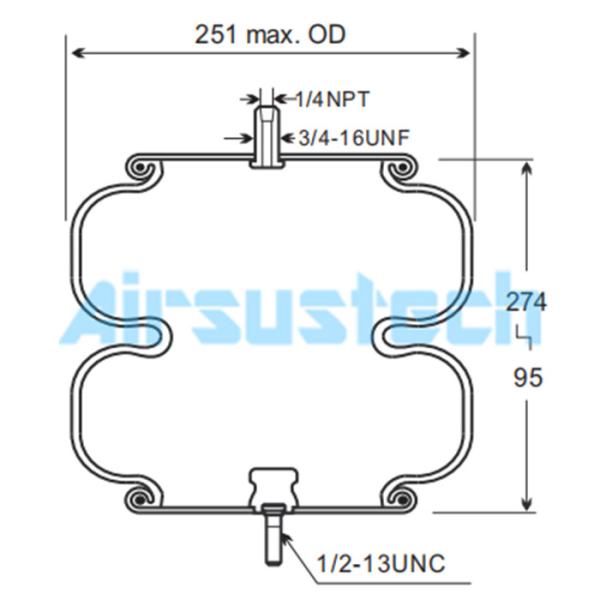

Top Cover Plate Screw (Nut) Tooth : Stud – 3/4-16
Bottom Cover Plate Screw (Nut) Tooth: 1/2-13 UNC

Gas Hole / Air inlet: 1/4 NPTF
Air Fitting – 1/4 NPTF

Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm

Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter: 224 mm
The Working Stroke: MIN 95 mm to MAX 274 mm
Maximum Height: 274 mm
Minimum Height: 95mm
Stroke Height: 2179 mm

Without Bumper Block

With Girdle Hoop: One Pieces of Girdle Hoop

Goodyear Air Spring:

Customization:

• Brand Name: AIRSUSTECH
• Model Number: 2B6897
• Place of Origin: Guangzhou,China
• Certification: ISO/TS16949:2009
• Minimum Order Quantity: 2
• Price: USD69-139.9/PC
• Packaging Details: Strong Carton Box or as Customers Requirement
• Delivery Time: 5-8 Working Days
• Payment Terms: T/T, Western Union, Paypal or Others
• Supply Ability: 1000PCS/Week
• Assembly Weight: 3.6 KG
• Pressure Range: 0.2-0.8 MPA

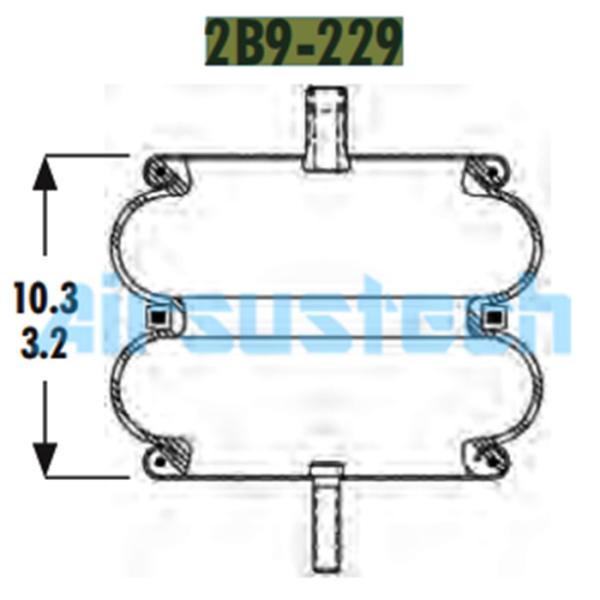

• The Working Stroke: MIN 3.2 Inches To MAX 10.3 Inches
• Cross Goodyear Top Plate: ASA-92-8-113
• Load Capacity: According To The Sizes

Our Suspension Air Springs are ideal for:

• Air Struts
• Air Bag Suspension Kits
• Suspension Air Springs

Packing and Shipping:

Packaging and Shipping of Suspension Air Springs:

• Suspension Air Springs will be packed in a box or a bag with foam.
• Shipping will be done by air or by sea depending on the destination.
