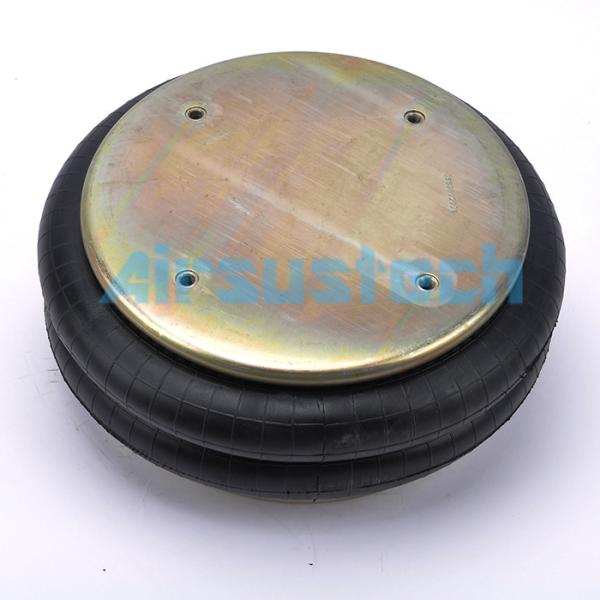

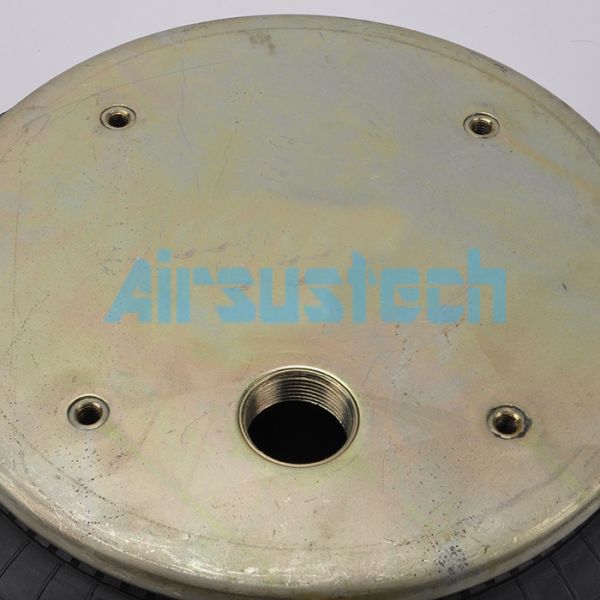

SP2B34R G3/4 Double Air Bellow Phoenix Air Spring For Large Industrial Washing Machine
SP2B34R G3/4 Double Air Bellow Phoenix Air Spring For Large Industrial Washing Machine
SP2B34R G3/4 Double Air Bellow Phoenix Air Spring For Large Industrial Washing Machine
SP2B34R G3/4 Double Air Bellow Phoenix Air Spring For Large Industrial Washing Machine
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B53022M8-G3/4
Place of Origin :
Guangzhou,China
Certification :
ISO/TS16949:2009
MOQ :
2
Price :
USD79.9/PC-USD129.9/PC
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
5-8 Working Days
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Load Force :
9.0 KN Force-50.0 KN Force
Height max. :
260 Mm
Height min. :
90 Mm
Phoenix OEM :
SP 2 B 34 R / SP2B34R
Bottom Plate DIA. :
158.8 Mm And 159.8 Mm
Temperature Range :
-30 To +70 Degree Celsius
Warranty :
One Year
Pressure Range :
0-8 Bar
Description

Product Description:

The AIRSUSTECH 2B53022M8G3/4 air spring is renowned for its excellent quality and reliability, and comes with an impressive 1-year warranty. This particular air spring is built to cross-reference with the Phoenix SP 2 B 34 R.

Technical Parameters:

BLIND TAP SPACING: 158.8mm

TEMPERATURE RANGE: Min. -40°F Max. 150°F

END CLOSURE: Style 3 End Retainer

PRESSURE: Max. 100psi

RECOMMENDED ISOLATOR DESIGN HEIGHT: Min. 200mm

AIR INLET TYPE: M8

END PLATE DIAMETER: 290mm

BUMPERS: Without/Bumpers

STROKE LENGTH: Max. 260mm

CONVOLUTIONS: Double

AIR INLET: G3/4

BELLOWS TYPE: Double Convolution

FILL PORT OFFSET: 79.9mm

COMPRESSED HEIGHT: 90mm

WEIGHT: 7.5kg

Support and Services:

Phoenix Air Spring offers a comprehensive technical support and service for our customers. Our customer service team is available 24/7 to answer your questions and provide assistance. We have service centers located all over the country, and our certified technicians are ready to help you troubleshoot and diagnose any issues you may have with your product.

We also offer online support for our customers. Our website provides detailed instructions and tutorials on how to use our products, as well as a searchable database of frequently asked questions. If you have additional questions, our customer service team is available to answer any questions you may have.

We also provide a warranty for all our products. Our warranty covers any defects in materials or workmanship for the duration of the warranty. If you experience any problems with your product, we will work with you to diagnose and repair the problem.

Packing and Shipping:

Phoenix Air Spring Packaging and Shipping:

  • The air spring will be packaged in a cardboard box.
  • The box should be sealed with adhesive tape.
  • The shipping label should be affixed to the box.
  • The box should be shipped using a parcel delivery service.

FAQ:

1. Are you a Manufacture factory?

A: Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.

2. What is your main products?

A: Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.

3. Is the sample available?

A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.

4. What is your warranty term?

A: Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.

5. Can i use my own logo and design on products?

A: YES,OEM is welcomed.

6. I can not find out the items what i want from your website, can you offer the products i need?

A: YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
