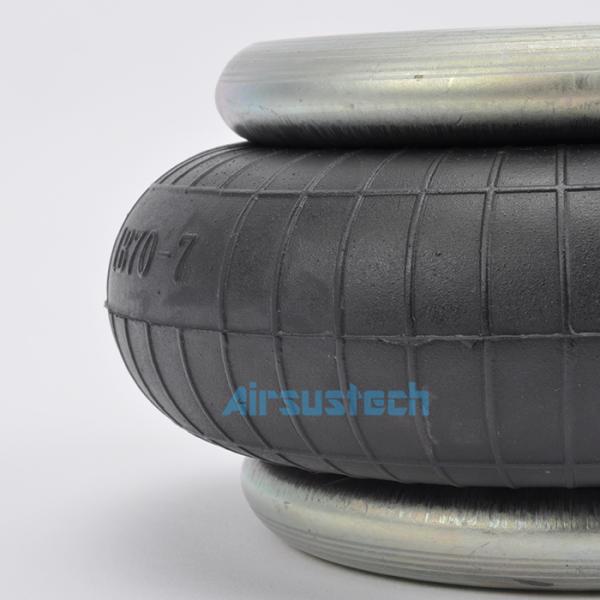

One Convoluted Air Spring Contitech FS 70-7 G1/4 Gas Filled Rubber Air Bags

OEM NO.

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B8×1

• Nut/blind nut

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 44.5mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 44.5 mm

• Air hole/air inlet/air fittings

Air hole/air inlet: 1/4

The screw center distance between the air hole and the nut: 22.25mm

• Cover plate

Top plate diameter: 105 mm

Diameter of the bottom cover: 105 mm

• Bell rubber bellows

Maximum diameter of rubber bellows: 165 mm

Natural diameter of rubber bellows: 150 mm

Working stroke: minimum 50 mm to maximum 115 mm

Maximum height: 115 mm

Minimum height: 50 mm

• Bumper block/bumper block

No bumper block

• Belt loop/Belt loop

With belt loop: No belt loop

The related picture of 1B70-7

Why do air springs have better shock absorption than steel plates?

1. Comfort. Leaf spring independent suspension, heavy weight, large stiffness, poor comfort, long longitudinal size, is not conducive to shortening the car's front suspension and rear suspension, and the connection of the leaf spring pin is easy to wear and so on.

2. Economy. The use of leaf spring truck trucks, the tires generally travel 50,000 kilometers to be replaced once, if the replacement of air spring, the tires generally travel 100,000 kilometers to be replaced once, which improves the life of tires by more than 50%.

3. Security. For multi-axle vehicles, air suspension ensures that the load between each axle is uniform, which avoids the whole load of single bearing in leaf spring suspension. For a single axle, air suspension basically ensures that the forces on both sides of the vehicle's wheels are evenly distributed. Air spring suspension can make the tire and the ground as far as possible to maintain pure rolling contact, basic can achieve the best braking effect. Therefore, air spring suspension is safer than leaf spring suspension.

4. Reliability. The parts and components of air spring suspension have accepted the rigorous fatigue test of foreign laboratories and the reliability test in harsh environment, and have been verified by the real car operation of our customers for many years. The use of air spring can improve the reliability of the chassis and body electrical system, overcome the rigid contact and friction, not only ease the impact between parts and greatly improve the reliability of the system. It can be seen that air spring suspension than leaf spring suspension del higher reliability.
