Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7405
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber + Steel
Certificate :
ISO/TS16949:2009
Warranty :
12 MONTHS
Number of convolutions :
2
Packing :
Neutral Box Or As Customers' Request
Type :
Air Springs
Position :
Front Or Rear
Oe no. :
Firestone W01-358-7405
Application :
Industial or others
Color :
Black
Pressure :
0.2-0.8MPA
Air hole :
1/4-18NPTF
Description

Goodyear 2B12-313/459/578923309 Rubber Double Convoluted Air Spring Shocks

OEM NO.

Firestone

W01-358-7405
Firestone

WO13587405
Firestone

WO1-358-7405
Firestone

W013587405
FIRESTONE W01-358-7405
FIRESTONE

WO13587405
FIRESTONE

WO1-358-7405
FIRESTONE

W013587405
Goodyear 2B12-313
Goodyear 2B12 313
Goodyear 2B12313
Goodyear 2B12-459
Goodyear 2B12 459
Goodyear 2B12459
Goodyear 578 9 23 309
Goodyear 578923309
Contitech FD330-22 364
Contitech FD330 22 364
Contitech FD 330-22 364
Contitech FD 330 22 364
Triangle 6316
Triangle 4364
Arvin Meritor 200981
Daylon 3547405
Leland Sc2073
Hutchens H-10384-01
SAF Holland 57007405
Suspensions lnc.

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6945

  • Nut/blind nut

Top plate screw (nut) teeth: 1/2-13UNC
The screw center distance of the top cover plate: 140mm
Screw (nut) teeth of the bottom cover plate: 2X1/2-13UNC
The screw center distance of the bottom cover plate: 157 mm

  • Air hole/air inlet/air fittings

Air hole/air inlet: 1/4-18NPTF

The screw center distance between the air hole and the nut: 140mm

Air Inlet Combine With One Nut

  • Cover plate

Top plate diameter: 231 mm

Diameter of the bottom cover: 231mm

  • Rubber Bellows

Rubber Bellows MAX Diameter : 325 mm / 12.9 inches

Compressed Height: 81 mm / 4.12 inches

Minimum Jounce Height: 81mm / 4.12 inches

Maximum Height: 305 mm / 12 inches

Working Stroke : 224 mm / 8.8 inches

  • Bumper block/bumper block

Without bumper block

  • Belt loop/Belt loop

With belt loop: One belt loop

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 5.1kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 220mm, minimum 205mm

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [KN] 10.0 13.3 16.7 20.6 24.1 27.6 12.0
Spring rate [N/cm] 1590 1900 2210 2520 2830 3140
Natural frequency [Hz] 2.0 1.9 1.8 1.8 1.7 1.7

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 300 9.8 13.1 16.7 20.3 24.0 27.7 14.0
260 12.5 16.7 21.0 25.4 29.9 34.5 13.0
220 14.6 19.4 24.4 29.4 34.5 39.6 11.6
180 16.2 21.6 27.0 32.5 38.2 43.8 9.9
140 17.6 23.4 29.3 35.2 41.3 47.2 7.8
100 18.3 24.4 30.3 36.3 42.4 48.5 5.5

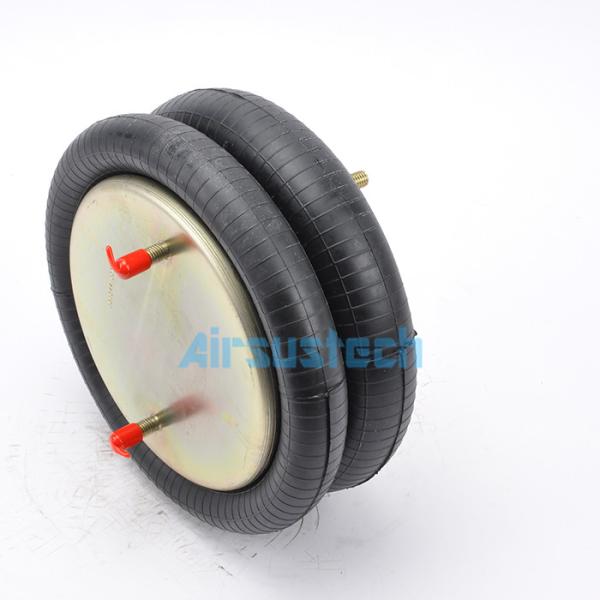

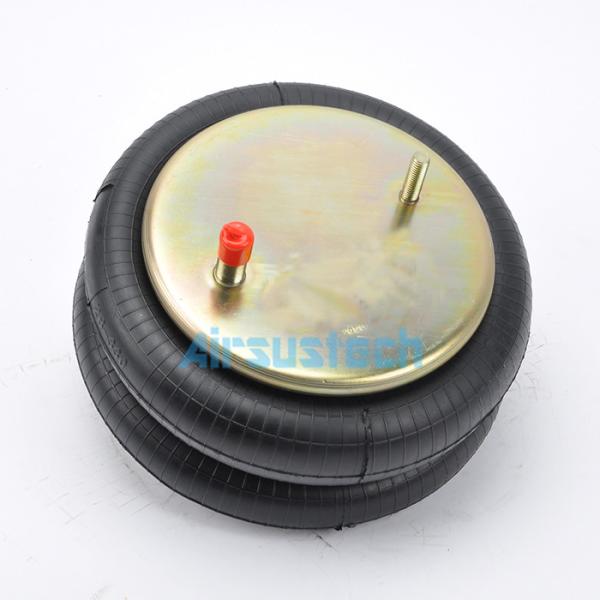

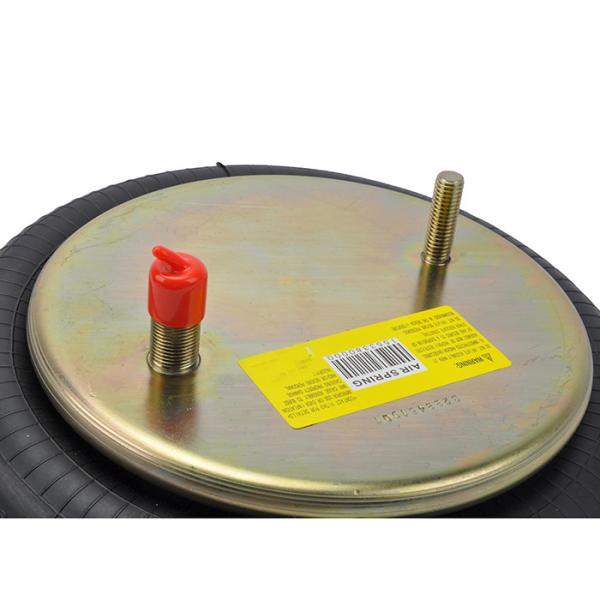

The related picture of 2B7405

Rubber 2 Convoluted Air Spring Shocks Goodyear 2B12-313/459/578923309

Rubber 2 Convoluted Air Spring Shocks Goodyear 2B12-313/459/578923309
