Double Convoluted Rubber Industrial Air Bags Cross Firestone Air Spring W01-358-7136

Refer No.

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B53022

• Nut/blind nut

Top plate screw (nut) teeth: 4×M10×1.5

The screw center distance of the top cover plate: 159mm

Screw (nut) teeth of the bottom cover plate:4×M10×1.5

The screw center distance of the bottom cover plate: 159 mm

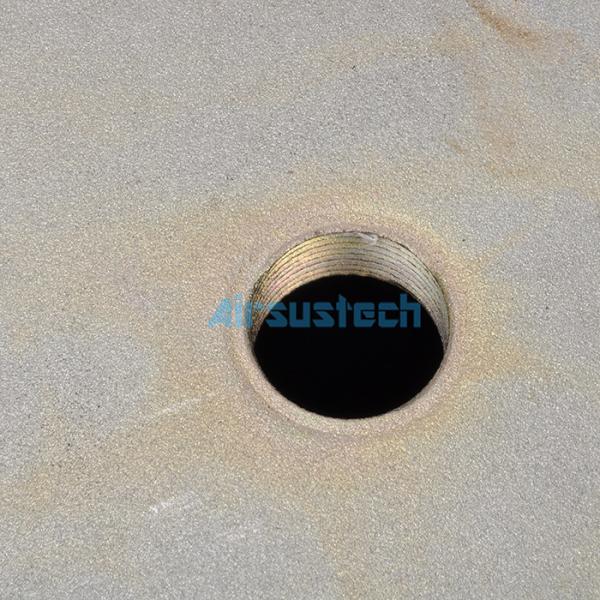

• Air hole/air inlet/air fittings

Air hole/air inlet: Rc1 1/4

• Cover plate

Top plate diameter: 315mm

Diameter of the bottom cover: 315mm

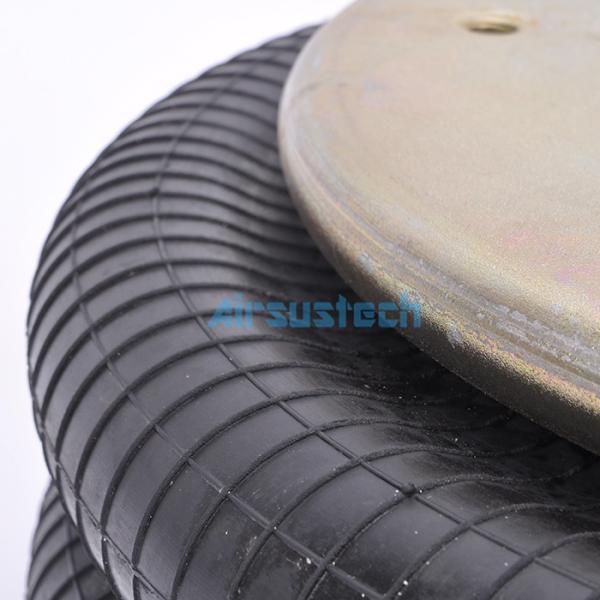

• Bell rubber bellows

Rubber Bellow Diameter: 360mm

Max. OD: 385mm

Stroke: from 90mm to 300mm

• Bumper block/bumper block

No bumper block

• Belt loop/Belt loop

With belt loop: one piece of belt loop

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 5.1kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 240mm, minimum 220mm

Pneumatic application-static characteristic values

Force F[KN]

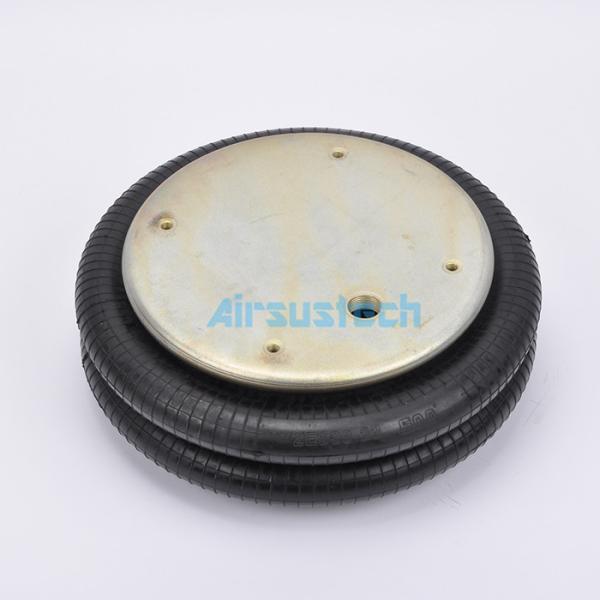

The related picture of 2B53022

Air spring storage and transportation instructions

1. Rough operation is prohibited during transportation and loading and unloading.
2, stored in dry and ventilated warehouse, avoid direct sunlight.
3, the installation part should have enough installation space, avoid contact with oil, acid and alkali substances and sharp substances.
4, avoid using sharp tools to touch the air spring; The fittings should be smooth without edges and corners.

About Air Spring

• Air spring has nonlinear characteristics, its stiffness changes with the load, so its natural vibration frequency remains almost constant under any load, so that the spring device has almost constant characteristics; Its absorption of high frequency vibration and sound insulation performance is good; It can bear axial load and radial load at the same time, and different bearing capacity can be obtained by adjusting internal pressure. Therefore, it can adapt to a variety of loads.
• Air spring in the effective stroke, through the method of increasing and decreasing inflation pressure, adjust the stiffness of air spring, height, cavity content product, the size of bearing capacity. At the same time, its stiffness, height, cavity volume and carrying capacity will change smoothly and periodically with the increase and decrease of load, thus realizing flexible transmission of bearing capacity, effective adjustment of stroke and efficient control of vibration amplitude and vibration load. Air chamber can also be attached to achieve automatic adjustment.

Because air spring has the above characteristics, it is increasingly widely used in trains, automobiles, paper machines, lifting platforms, presses, vibration transport planes, vibrating screens, air hammers, vibration testing machines, casting machinery and other equipment or instruments that need to carry out stroke control or shock absorption and isolation.
