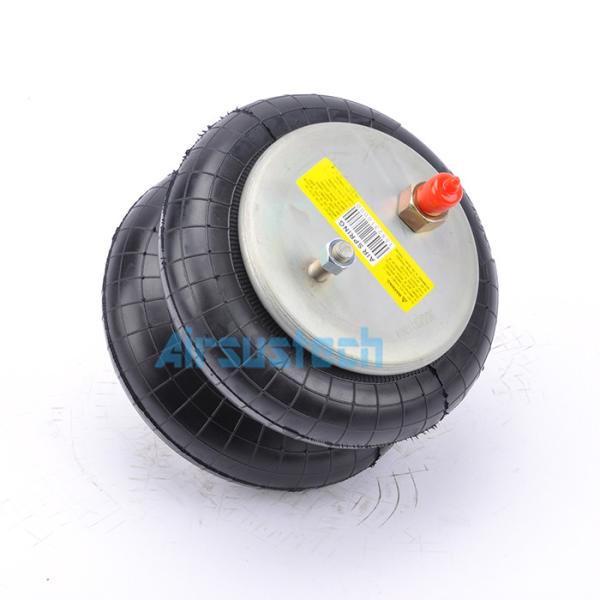

1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B5231
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber + Steel
Certificate :
ISO/TS16949:2009
Warranty :
one year
Number of convolutions :
2
Packing :
Neutral Box Or As Customers' Request
The diameter of plate :
160 cm
Gas Filled :
1/4NPTF
Position :
Front Or Rear
Oe no. :
Firestone W01-358-5231
Pressure Ability :
0.2-0.8 M PA
Description

1/4NPTF Air Inlet Rubber Bellows Double Convoluted Firestone W01-358-5231 Air Spring

Refer No.

Cross reference No.
Firestone. W01-358-5231
Firestone. W01 358 5231
Firestone. W013585231
CONTITECH FD 200-25 453
CONTITECH FD 200 25 453
CONTITECH FD 20025453
Contitech :161336
Goodyear : 2B9-218
Goodyear : 2B9 218
Goodyear : 2B9218
Goodyear : 578923206/2
Triangle : 6332
Triangle : 4453
Leland : Sc2072
SAF Holland : 57006927
Tuthill Technology : 1290601
Reyco : 12906-01

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B5231

  • Nut/blind nut

Top plate screw (nut) teeth: 1pcsX 3/8-16UNC; 1pcsX 3/4-16UNF

Screw (nut) teeth of the bottom cover plate: 2pcsX3/8-16UNC

The screw center distance of the bottom cover plate: 86mm

  • Air hole/air inlet/air fittings

Air hole/air inlet: 1/4 NPTF

Top Cover Plate Screw (Nut) is Combined with the (Gas Hole / Air inlet / Air Fitting) which is in the middle of the top cover

  • Cover plate

Top plate diameter: 160 mm

Diameter of the bottom cover: 160 mm

  • Bell rubber bellows

Rubber Bellow Natural Diameter: 205mm

Max Diameter: 235mm

The Working Stroke: from 85mm to 280mm

  • Bumper block/bumper block

No bumper block

  • Belt loop/Belt loop

With belt loop: one piece of belt loop

Other Types Of Convoluted Air Spring:

Single Convolutions
Firestone : W01 358 7731 Firestone : W01 M58 6165
Firestone : W01 358 7564 Firestone : W01 358 7598
Firestone : W01 M58 6374

FIRESTONE FLEX 115
FIRESTONE W01 358 0118 Firestone : W01 358 7008
Firestone: W01 358 7009 Firestone. W01 358 7103
Firestone. W01 358 7112
Double Convolutions
FIRESTONE W01 095 0111

FIRESTONE W01 358 7325
FIRESTONE W01 358 7327 Firestone : W01 358 7325
Firestone : W01 M58 6353 FIRESTONE W01 M58 7894
Firestone : W01 358 6926 Firestone : W01 358 6910
Firestone : W01 358 6902 Firestone : W01 358 6927
Firestone : W01 358 6943 Firestone : W01 358 6946
Firestone : W01 358 6945 Firestone : W01 M58 7679/20C2
Firestone:W01 358 6948 FIRESTONE W01 358 6951
FIRESTONE W01 358 6952 Firestone:W01 M58 6944/20-2
Firestone:W01 M58 6891/20-2 FirestoneW01 358 7180/22
FIRESTONE W01 358 0226 FIRESTONE 22T3 095 .0257
FIRESTONE fole 210 095.008 Fireston:W01 358 7400/22
Firestone:W01 358 7405 Firestone:W01 358 7406
Firestone:W01 358 7424 Firestone:W01 358 7545
Firestone:W01 358 7550 Firestone:W01 358 7555

Firestone : W01 358 7136

 FIRESTONE W01 358 7146
FIRESTONE W01 358 7143 Firestone:W01 358 7557

Firestone:W01 358 7781

 Firestone:W01 095 0289
Firestone. W01 095 0508 Firestone.W01 358 9529
Firestone Style 21D-2
Triple Convolutions
Firestone:W01 358 8008 Firestone:W01 358 8010

Firestone:W01 358 8027/38

 Firestone:W01 358 8029
Firestone:W01 358 8030/38

FIRESTONE W01 358 8006
FIRESTONE FLEX 38R/38D

FIRESTONE W01 358 7808

FIRESTONE W01 358 7798

 FIRESTONE FLEX 313D
FIRESTONE FLEX 313D

FIRESTONE W01 358 7800
FIRESTONE W01 358 7818 FIRESTONE FLEX 313D

The related picture of 2B5231

1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231

1/4NPTF Air Inlet Rubber Bellows Convoluted Air Spring Firestone W01-358-5231
