F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine
Specifications
Brand Name :
AIRSUSTECH
Model Number :
F-500-3
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Certificate :
ISO/TS16949:2009
Warranty :
12 MONTHS
Number of convolutions :
3
Packing :
Neutral Box Or As Customers' Request
Type :
Air Springs
Cross reference :
S-500-3R
Natural outer diameter :
560mm
Color :
Black
Quality :
100% tested
Description

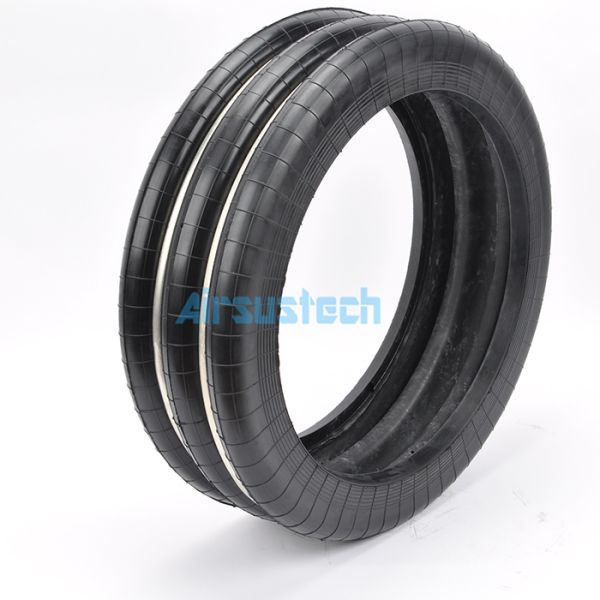

AIRSUSTECH F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine

OEM Cross reference:

AIRSUSTECH Part No.: F-500-3

YOKOHAMA S-500-3R

YOKOHAMA S 500 3R

YOKOHAMA S-500-3

Specifications and Detailed Technical Parameters: F-500-3

Model Size Height H(mm) Common Maximum Travel(mm) Compression Max. Outside Diameter (mm) Standard height, approximate value at 0.49MPA internal pressure Maximum Internal Pressure (MPA) Internal Pressure Failure(MPA)
Design Height Max. Height Min Height Effective Area(cm2) Volume(L) Load(KN) Dynamic Spring Constant(n/mm) Natural Vibration Frequency(Hz)
S-500-5R 276 456 156 ±113 560 1965 54.0 96.3 706 1.4 0.69 3.9-4.9
S-500-4R 218 363 123 ±90 560 1965 41.9 96.3 912 1.5 0.69 3.9-4.9
S-500-3R 160 270 90 ±68 560 1965 30.3 96.3 1255 1.8 0.69 3.9-4.9
S-500-2R 102 172 57 ±45 560 1965
18.5		 96.3 2020 2.3 0.69 3.9-4.9

Other types:

GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No. GUOMAT Part NO. Japan YOKOHAMA Reference No. Japan YOKOHAMA Reference No.
F-600-1 S-600-1R S 600 1R F-240-4 S-240-4R S 240 4R
F-600-2 S-600-2R S 600 2R F-240-3 S-240-3R S 240 3R
F-600-3 S-600-3R S 600 3R F-240-2 S-240-2R S 240 2R
F-600-4 S-600-4R S 600 4R F-240-1 S-240-1R S 240 1R
F-600-5 S-600-5R S 600 5R F-220-4 S-220-4R S 220 4R
F-550-2 S-550-2R S 550 2R F-220-3 S-220-3R S 220 3R
F-550-3 S-550-3R S 550 3R F-220-2 S-220-2R S 220 2R
F-500-2 S-500-2R S 500 2R F-200-2 S-200-2R S 200 2R
F-500-3 S-500-3R S 500 3R F-200-3 S-200-3R S 200 3R
F-500-4 S-500-4R S 500 4R F-200-4 S-200-4R S 200 4R
F-500-5 S-500-5R S 500 5R F-160-1 S-160-1R S 160 1R
F-450-1 S-450-1R S 450 1R F-160-2 S-160-2R S 160 2R
F-450-2 S-450-2R S 450 2R F-160-3 S-160-3R S 160 3R
F-450-3 S-450-3R S 450 3R F-160-4 S-160-4R S 160 4R
F-450-4 S-450-4R S 450 4R F-120-4 S-120-4R S 120 4R
F-450-5 S-450-5R S 450 5R F-120-3 S-120-3R S 120 3R
F-400-2 S-400-2R S 400 2R F-120-2 S-120-2R S 120 2R
F-400-3 S-400-3R S 400 3R F-100-4 S-100-4R S 100 4R
F-400-4 S-400-4R S 400 4R F-90-3 S-90-3R S 90 3R
F-400-5 S-400-5R S 400 5R F-90-2 S-90-2R S 90 2R
F-350-1 S-350-1R S 350 1R F-90-1 S-90-1R S 90 1R
F-350-2 S-350-2R S 350 2R F-300-1 S-300-1R S 300 1R
F-350-3 S-350-3R S 350 3R F-300-2 S-300-2R S 300 2R
F-350-4 S-350-4R S 350 4R F-300-3 S-300-3R S 300 3R
　 　 　 F-300-4 S-300-4R

S 300 4R

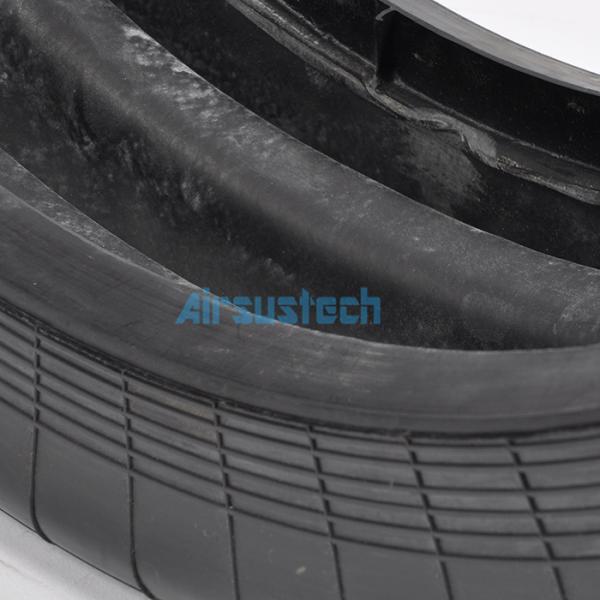

The related picture of F-500-3

F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine

F-500-3 Yokohama S-500-3R Rubber Air Spring For Die Cushion Press Machine

Assembly method of air spring


(1) The insertion of lumbar ring
The air spring is pressed inward by hand, and the ring is inserted in turn. After the ring is inserted into the fixed position, the air spring under pressure is pulled out to restore its original state. When there are 4 or more flaps, rings can be mounted from both sides according to this method.


(2) the installation method of upper and lower plates
The upper and lower plates and the air spring are gently inserted, and after height restriction, compressed air is gradually sent in to improve the internal pressure. The upper and lower plates can be automatically inserted with the air spring to achieve sufficient airtightness. If internal pressure is applied at unrestricted height, the upper and lower plates will collapse out. Therefore, it is important to pressurize the upper and lower plates in a device of sufficient strength to limit height. Air spring and upper and lower plate sealing parts, such as foreign bodies, rust, oil and other phenomena, should be cleaned up before operation. In addition, the rubber and the upper and lower board of the joint part of some soap and water, will be more easy to chimeric.
