Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Rubber Shocks Triple Convoluted Air Spring Assembly Firestone W01-358-7995 Contitech FT 330-29 547
Specifications
Brand Name :
AIRSUSTECH
Model Number :
3B7995
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Certifications :
ISO/TS16949:2009
Warranty :
12 Months
Packing :
Neutral Box Or As Customers' Request
Applications :
Industrial Machines Or Others
Cross Reference :
Firestone W01-358-7995
Port :
Huangpu, Guangzhou
Air Inlet :
1/4NPTF
Plate Diameter :
231mm
Description

Rubber Shocks Firestone W01-358-7995 Triple Convoluted Contitech FT 330-29 547 Air Spring Assembly


Specifications and Tecnical Parameters: 3B7995

1. Min. Height:130mm

2. Max. Height: 460mm

3. Max. OD: 330mm

4. Top plate mounting thread: Single Combo Stud-1/4NPTF air fittings, 3/4-16UNF bolt/stud, 1pcs ×3/8-16UNC threaded hole
5. The screw center distance: 140mm

6. Bottom plate mounting threads: 2pcs × 3/8-16UNC

7. The screw center distance: 157.5mm

8. Top plate diameter: 231mm

9. Bottom plate diameter: 231mm

10. Bumper: Yes

11. Girdle hoop: two pieces



Cross Reference

Brand

OEM No. reference

Firestone

W01-358-7995; W013587995; W01 358 7995

WO1-358-7995; WO13587995; WO1 358 7995

Firestone style 38
Contitech

FT 330-29 547; FT 330-29547; FT 33029547

FT330-29 547; FT330-29547; FT33029547

64573
Goodyear 3B12-329; 3B12 329; 3B12329
Triangle 4757; 4703
Watson&Chalin AS-0048-1F; AS 0048 1F; AS00481F
Euclid/Meritor After market E-FS7995; E FS7995; EFS7995

Features & Benefits


Bellows are made of special elastomer with outstanding dynamic properties and long service life
Individual components are tuned together for a perfectly harmonized system, ensuring optimal suspension characteristics
Springs have passed servo-hydraulic and durability tests for almost all load conditions
Simple and precise fittings for faster installation and less downtime

Packing Details

Product model: 3B7995

Net weight: 6.519kg

Gross weight: 7.131kg

Box: Netural strong cartons or as customers' requirements

Shipping ways: If the quantity is small, we ship them by express.

If the quantity is big, we ship them by sea/by train

Also, we could ship the goods as customers' request.

Other types of triple convoluted air spring we have

Guomat No.

Cross Reference

3B7996

Firestone : W01-358-7996; W013587996; WO1-358-7996; W013587996/38
Contitech : FT 330-29 520; FT330-29520
Goodyear : 3B12-335; 3B12335

Goodyear Bellow Number: 578933100
Triangle : 6334/4520

Granning/Tuthill : 8221

3B8006

Firestone : W01-358-8006; W013588006; WO1-358-8006; WO13588006
Contitech : FT 330-29 430; FT330-29430
Goodyear : 3B12-304; 3B12304

Goodyear Bellow number:578933100
Triangle : 6334/4430

Leland: Sc2132

Arvin Meritor: 200620

Susperior

3B8016

Firestone : W01-358-8016; W013588016; WO1-358-8016; WO13588016
Contitech : FT 330-29 433

Triangle : 6334/4433

Ridewell : 1003588016C

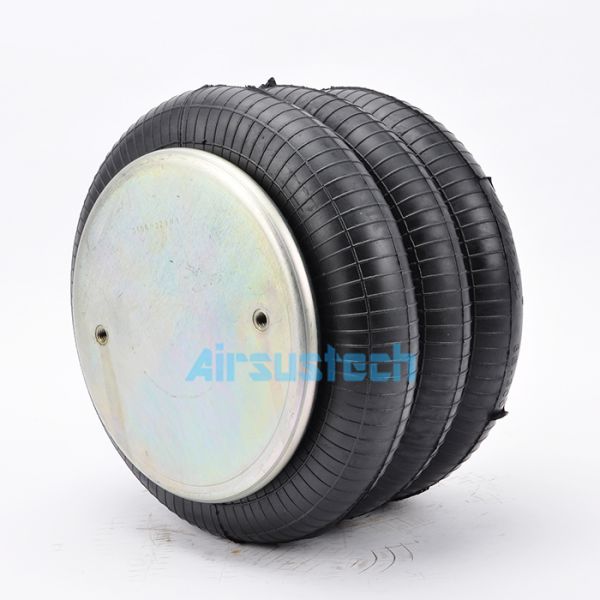

The picture of air spring/air bellow assy/air shocks/air balloon
