Double Convoluted Air Ride Springs Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300
Double Convoluted Air Ride Springs Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300
Double Convoluted Air Ride Springs Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300
Double Convoluted Air Ride Springs Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6897
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
12 Months
Material :
Rubber and mental
Contitech number reference :
FD 200-19 505/161300
Sample :
Available
Firestone No. :
W01-358-6897
HS Code :
8708809000
Application :
Industrial Machines or others
Convolutions :
Double Convoluted
Description

Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300 Double Convoluted Air Ride Springs

Cross Reference

Air Spring supplier: Firestone

Supplier Number: W01-358-6897; W01 358 6897; W013586897; WO13586897; WO1 358 6897; WO1-358-6897

Firestone Style 20


Air spring supplier: Contitech

Supplier number: FD 200-19 505; FD 200 19 505; FD 20019505; FD200-19 505; FD200 19 505; FD20019 505

Also known as 161300

Air spring supplier: Goodyear

Supplier number: 2B9-229; 2B9 229; 2B9229; 2B9-228; 2B9 228; 2B9228

Bellow number: 578923202; 578-92-3-202; 578 92 3 202; 556238325; 556 23 8 325; 556-23-8-325

Air spring supplier: Triangle

Supplier number: 6325; 4505

Air spring supplier: Waston&Chalin

Supplier number: AS-0058; AS0058​; AS0058​

Air spring supplier: Brake & Wheel

Supplier number: M3528​

Air spring supplier: Ridewell

Supplier number: 1003586897C

A cross reference listing means that this part should a suitable replacement for the part numbers listed. You should check the description to be sure it will work in your application.

Air Spring spcifications and data parameters: 2B6897

Type: Double Convolution Air Spring; 2-Ply Bellows

One Combo Stud on Top Cover: 1/4NPT air fittings; 3/4-16UNC Mounting thread

Bottom cover: 1pcs × 1/2-13UNC

Cover plate diameter: 160mm

Min. height: 95mm

Max. height: 274mm

Max. OD: 251mm

Girdle ring/Girdle hoop/Belt loop: one piece

Bumper/ Bumper Block: Without

Other types

Contitech

Firestone

FS40-61/8M8

FD200-25

W013586951

FD330-22331

W013587410

FT330-29546

W013587994

FS120-10

FD200-25427

W013586945

FD330-22368

W013587423

FT330-29547

W013587995

FS70-71/4M8

FD200-25454

W01M586944

FD330-22363

W013587180

FT330-29430

W013588006

FD200-19504

W013586926

FD200-25

W013586951

FD330-22327

W013587424

FT330-29431

W013588008

FD330-22343

W013587429

FT330-29432

W013588010

FD200-19724

W013586884

FD200-25453

W013586927

FD330-22334

W013587437

FT330-29433

W013588016

FD200-19539

W013586890

FD200-25426

W013586943

FD330-30-371

FT330-29469

W013588025; W013588038

FD200-25427

W013586945

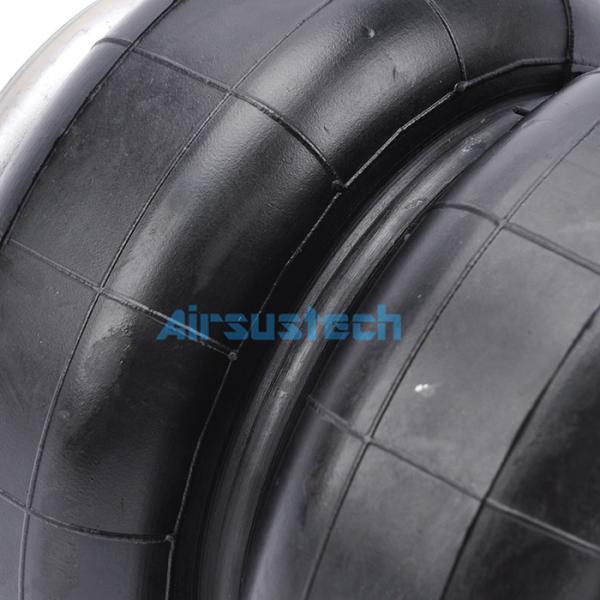

The reated picture of air springs/convoluted air spring/air bag/air balloon: 2B6897
Double Convoluted Air Ride Springs Firestone W01-358-6897 Single Stud Up Airbag Contitech FD 200-19 505 161300
