WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7731
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Iron
Warranty :
12 months
Type :
Convoluted Air spring
Application :
Industrial or others
Blind Nut :
3/8-16UNC
Product No. :
1B7731
Refe number :
WO13587731 Firestone 131B Style AirSprings
Air Inlet :
1/4 NPTF
Sample :
Available
Description

Type 1 Bead Plate Industrial Bellows Actuator WO13587731 Firestone 131B Style AirSprings

Cross Reference

Mfr Part # W013587731
Part # Variations: W01-358-7731, WO13587731, WO1-358-7731, W01-358-7731, W01 358 7731, WO1 358 7731,w013587731,w01-358-7731,w01 358 7731,wo13587731
Additional Info: WO1-358-7731, 131B Style AirSpring

Specifications and Tecnical Data: 1B7731

Type 1 Bead Plate
2pcs 3/8-16 Blind Nuts On 44.5mm Centers
1/4" NPTF Centered Port
115mm Top/bottom cover plate diameter
Rubber bellows Max. diameter 165 mm
Working stroke from Maximum 115mm to Minimum 50mm,
Without bumper block,
Without Belt loop/ Girdle hoop

ACTUATOR/AIRMOUNT ISOLATOR

100 PSI
-40+70℃ temperature

Blind nuts, 1/4 NPT :W01-358-7731
Blind nuts, 3/4 NPT: W01-358-7742
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws) :W01-358-0127
3/4 NPT (only) upper plate, blind nuts lower plate: W01-358-7729
Rubber bellows only :W01-358-0131

APPLICATIONS


Industrial actuator
Vibration isolator
Press machines
Conveyors
Lifts
Packaging machines


FEATURES
Two-ply, fabric-reinforced rubber
Flexible media
Provides linear and angular motion
Reduces harmful effects of vibration

Packing details

Product No.: 1B7731

Net weight: 1.497kg

Gross weight: 18.544kg

Box weight: 0.58kg

Box size: 33*33*22cm

Packing quantity: 12pcs

Delivery time: 3-8 working days

Other types of firestone air spring/bellow actuator replacement we could provide

Firestone W01-358-7451 PNEUMATIC ACTUATOR, AIR SPRING, STYLE 110, 1/4 NPT

Firestone W01-358-7001 PNEUMATIC ACTUATOR, STYLE 16B, 2 PLY BELLOWS, 3/4IN NPT AIR

Firestone W01-358- 7008 AIR SPRING

Firestone W01-M58-6070 128B 4XM8BN 3/4BSP OFF
Firestone W01-M58-6071 128B 4XM8BN 1/4BSP
Firestone W01-M58-6077 205C 4XM8BN 3/4BSP OFF
Firestone W01-M58-6079 205C 4XM8BN 1/4 OFFSET
Firestone W01-M58-6100 113B 4XM8 BN 3/4BSP
Firestone W01-M58-6101 113B 4BN M8 1/4BSP

Firestone W01-M58-6160 268C 2M8BN1/4BSP
Firestone W01-M58-6165 116B 2XM8BN 3/4BSP

Firestone W01-M58-6170 116B1 1/4BSP 2BN M8
Firestone W01 -M58-6175 117B 2XM8BN 3/4BSP

Firestone W01-M58-6377 21D2 4BN M8 1/4BSP
Firestone W01-M58- 6378 21D2 4BN M8 3/4BSP
Firestone W01-M58-6379 21D2 RB 4BN M8 1/4BSP
Firestone W01-M58-6382 22D RB 2BN M8 1/4BSP

Firestone W01-358-7566 116B 1/8NPT OFF

Firestone W01-358-7808 FIRESTONE, W01-358-7808, W013587808, 313C, 4X3/ 8BN, 1/4OFF, 4BN

Firestone Airstroke W02-358-3000 Air Spring
Firestone Airstroke W02-358-3001 Air Spring

Firestone W01-M58-6115 21C RB 4XM8BN 1/4BSP

Firestone W01-M58-6374 115B 2M8BN 3/4BSP
Firestone W01-M58-6376 115B RB 2XM8BN 1/4BSP

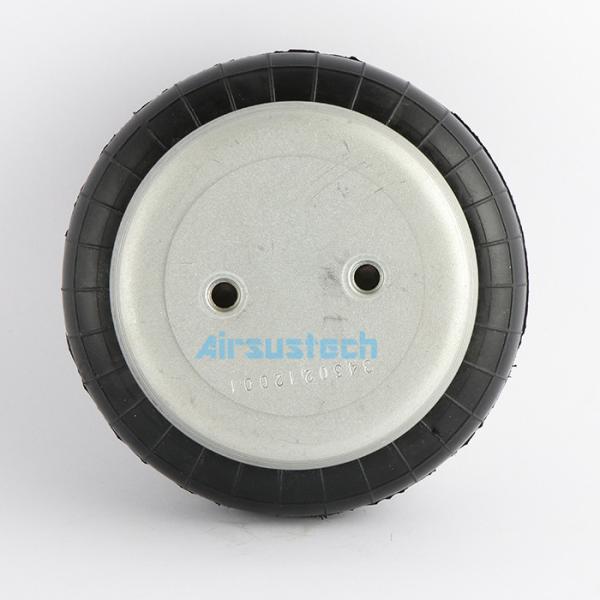

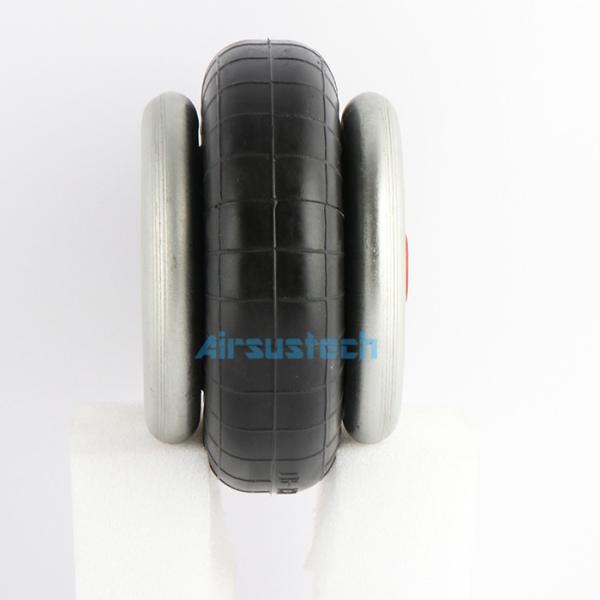

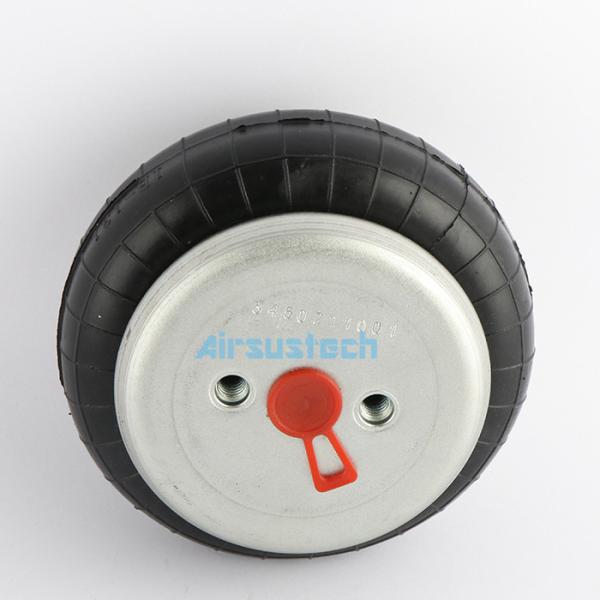

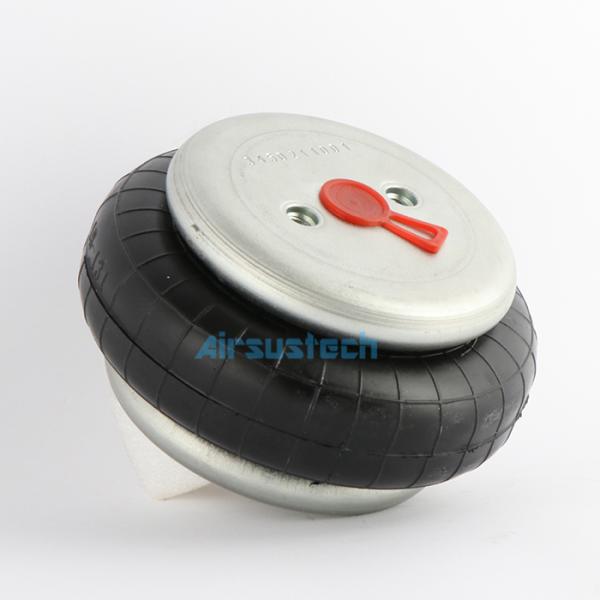

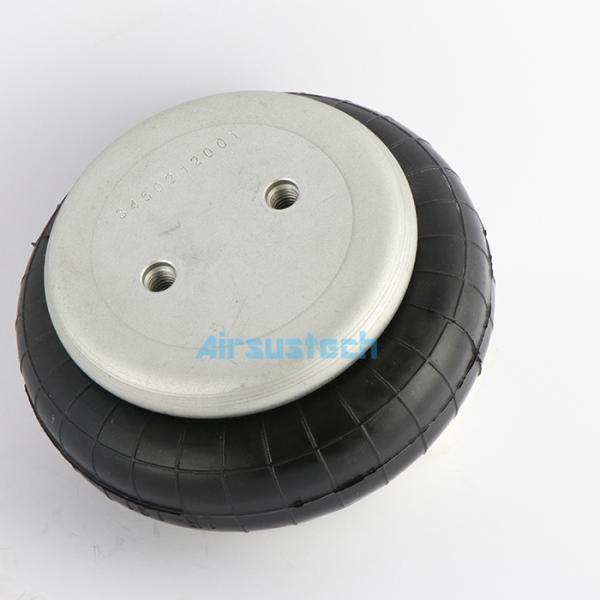

The picture of air spring: 1B7731 Industrial bellows actuator/air spring assembly

WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator

WO13587731 Firestone 131B Style Industrial Air Springs Type 1 Bead Plate Bellows Actuator
