Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6-535
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Certifications :
ISO/TS16949:2009
Warranty :
One year
Convoluted :
Double
Packing :
Neutral Box Or As Customers' Request
Sample :
Available
Style :
Complete
Goodyear :
Goodyear 2B6-535
Condition :
100% New
Original :
Mexico
Description

Goodyear Double Bellow Air Spring 2B6-535 2B6-1 CONTI 66094 FD 110-15 766 Industrial Air Bag



Item Details

Goodyear Part number: 2B6-535; 2B6 535; 2B6535; 2B6-1; 2B6 1; 2B61

Flexmember Number: 579-92-3-515; 579 92 3 515; 579923515

Upper Plate Number:ASC-92-8-175; ASC 92 8 175; ASC928175

Lower Plate Number: ASA-92-6-052; ASA 92 6 052; ASA926052
Style: Air Spring Complete

Convolutions: Double

Other Reference

Air Spring Supplier: CONTI
Supplier Number: 66094; FD110-15766; FD 110-15 766; FD11015766; FD 110-15766; FD 110 15 766


Air spring Supplier: LOAD AIR
Supplier Number: P10-754U; P10 754U; P10754U

2B6-535 Air Spring Specifications and Parameters

Bellow Type: Double
Automann Bellow #:
Firestone Bellow #:
Goodyear Bellow #: 579-92-3-515
Contitech Bellow #:
Triangle Bellow #:
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 2

Top Plate Mounting Threads: 3/8-16UNC
Top Plate Dia: 4.15
Top Plate C to C Diameter: 2.75
Bottom Plate Hole Stud Qyt: 2

Bottom Plate Mounting Threads: 3/8-16UNC
Bottom Plate Dia: 4.15
Bottom Plate C to C Diameter: 2.75
Bottom Plate Part #:
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height/Collapsed Height: 2.8
Max Height: 9.1

Usable Stroke

Max Dia @ 100 psi In

Bumper

Force Available At Actuator
Height Limit (Pounds)

Force Available At Compressed
Height Limit (Pounds)

Air Fitting Size (in)

100 psi

80 psi

60 psi

40 psi

100 psi

80 psi

60 psi

40 psi

5.9

7.0

NO

585

400

215

90

3395

2790

2170

1505

1/4, Offset

Design Load Range (Pounds)

Design Load Range (Inches)

Approximate Isolation Percent For A Disturbing Frequency Of:

435 CPM

870 CPM

1160 CPM

1750 CPM

300-2270

5.0-7.0

92.0

97.5

98.3

99.3

Other Model

Assembly Number: 2B6-536

Elastomer: Wingprene

Air fittings: 1/4''-18 NPTF Offset 1.375''

Bumper: Yes

Applications

PAPER SIZING PRESS

PICKLING TANK ACTUATOR

MISSILE ASSEMBLY FIXTURE

CORE STRAIGHTENER

ROLLER FRICTION BRAKE

BAG FLATTENER

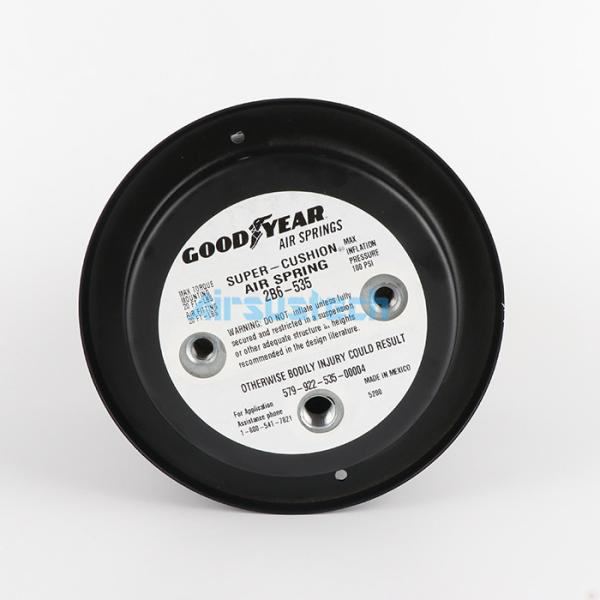

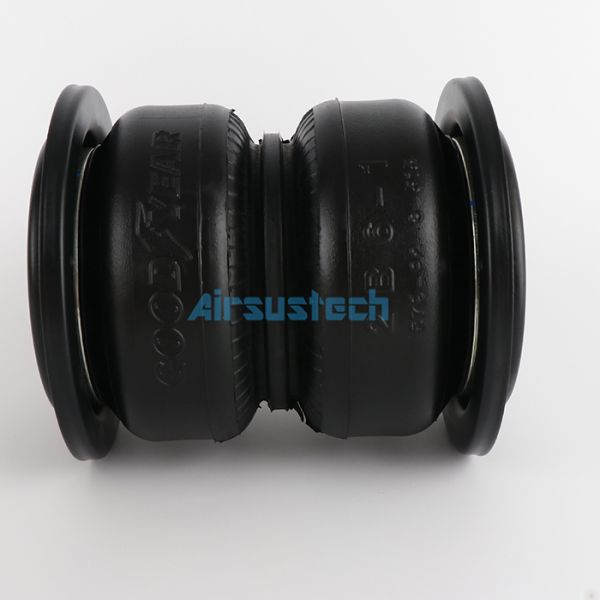

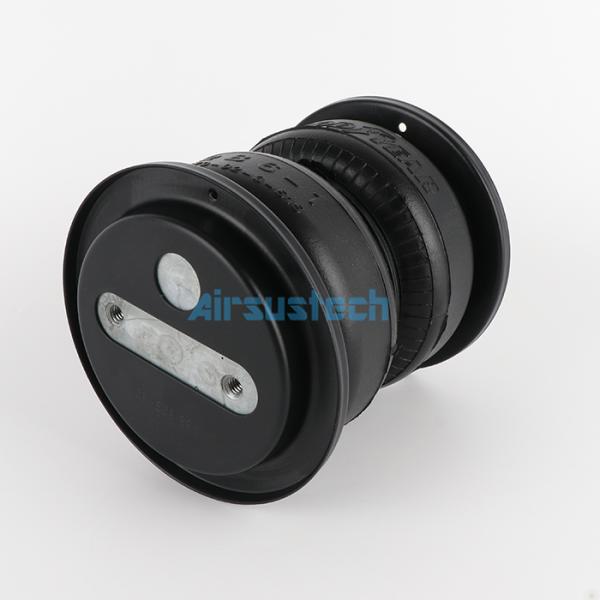

The related picture of 2B6-535 goodyear helper bag/air springs
