2B6×6 Double Convoluted Air Spring Contitech FD 70-13 1/2 NPT Air Hole Industrial Air Shocks For Pallet Lifts

Basic Info.

1. Product Model: 2B6×6

2. Weight: 1.6kg

3. Design Height: 152mm

4. Loading capacity at 3.0bar: 2.88KN

5. Loading capacity at 7.0bar: 7.25KN

6. Delivery time: 3 working days if we have stocks

7. Condition: 100% New

8. Qualtiy: High-quality with strict control system

9. Packing: Strong netural box or as customer's request

10. Shipping ways: If small quantity, we normally ship the googs by express(Fedex, UPS, DHL, EMS or others)

If big quantity, we could ship the items by sea or others.

Cross Reference

Specifications and Detailed Technical Parameters:2B6×6

1. Height

Min. Height: 65mm

Max. Height: 175mm

Working Stroke: 110mm

2. Rubber Bellow Diameter: 145mm

3. Cover Plate Diameter: 113mm

4. Mounting Thread On Top Plate: 2pcs ×3/8-16UNC

5. Mounting Thread On Bottom Plate: 1pcs × 3/8-16UNC

6. Air Inlet: 1/2NPT, Offset, 22mm

7. Bumper Block: Without

8. Girdle Hoop/Girdle Ring: One Piece

The air spring can be used in pallet lifts

Nowadays, rubber air springs are more and more commonly used in machines, such as pallet lifts. It has the following features.

1. The air spring has nonlinear characteristics, and its characteristic line can be designed as an ideal curve according to the needs;

2. The stiffness of the air spring changes with the load, so the natural vibration frequency remains unchanged under any load, so that the spring device has almost constant performance;

3. Good performance of absorbing high-frequency vibration and sound insulation;

4. Through the height control valve, the working height of the air spring can be kept constant under any load, and the spring can also have different heights under the same load, so it is beneficial to adapt to various structural requirements;

5. The stiffness of the air spring can be selected by changing the volume of the additional air chamber according to the needs, and can be selected very low;

6. The air spring can bear axial and radial loads at the same time, and can also transmit torque. Through the adjustment of internal pressure, different bearing capacities can be obtained, so it can meet the needs of various loads.

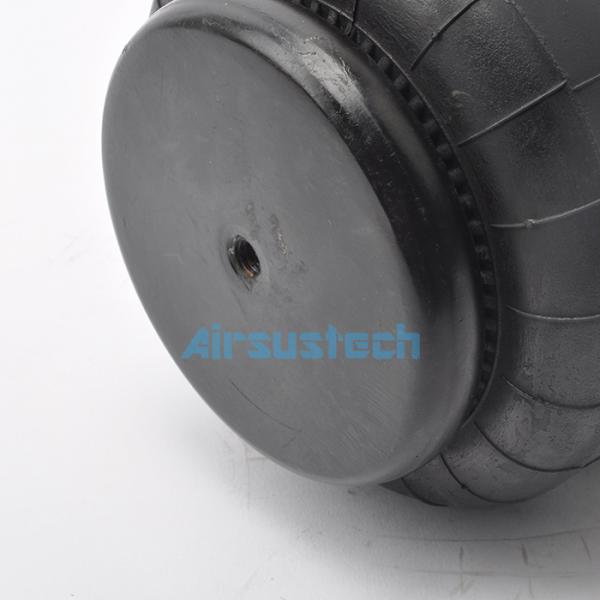

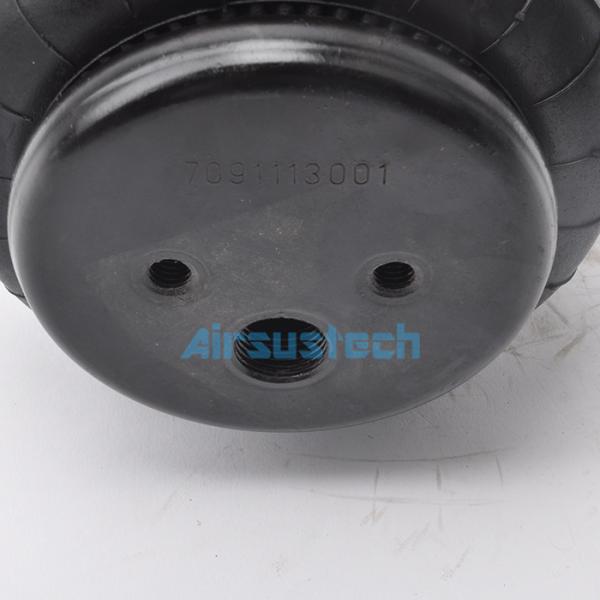

The photo of 2B6×6 air spring/air shocks/ air actuator/ air spring assembly
