Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and mental
Certifications :
ISO/TS16949:2009
Warranty :
12 months
Packing :
Neutral Box Or As Customers' Request
Size :
16×16×16 cm
Condition :
100% Brand-New
Type :
Industrial Air Spring
Sample :
Available
Cross Reference :
Contitech FD 70-13 CI
Description

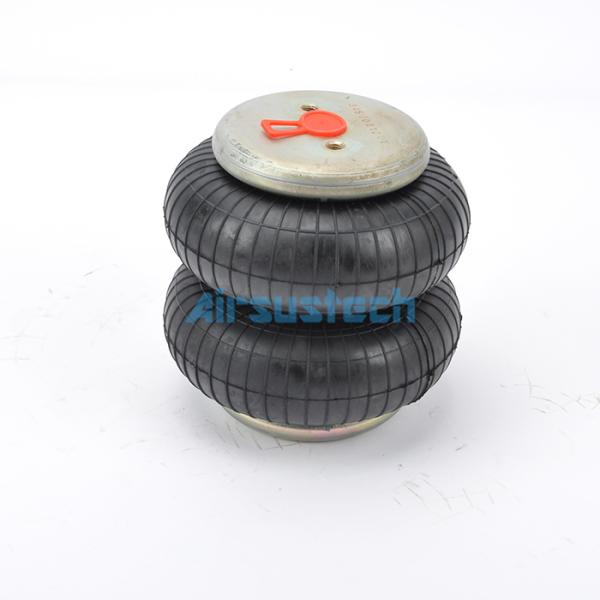

Continental FD70-13 CI G1/4 CA Replacement Double Convoluted Industrial Air Springs

Cross reference

Contitnetal FD 70-13 CI G1/4 CA

Contitnetal FD70-13 CI G1/4 CA

Contitnetal FD 70 13 CI G1/4 CA

Contitech FD 70-13

Contitech FD 70 13

Contitech FD 70-13 CI

Contitech FD 70 13 CI

Contitech FD 70-13 CI G1/4

Contitech FD 70 13 CI G1/4

Firestone W01M586105

Firestone W01 M58 6105

Firestone W01-M58-6105

Firestone WO1M586105

Firestone WO1-M58-6105

Firestone WO1 M58 6105

Specifications and Tecnical Parameters: 2B7070

1. Nut/blind nut Top plate screw (nut) teeth: 2 x M8X1.25

Top plate screw center distance: 44.5 mm

2. Bottom cover plate screw (nut) teeth: 2 xM8X1.25

Bottom plate screw center distance : 44.5 mm
2. Air hole/air inlet/air fitting air hole/air inlet: G1/4

Air hole place: Middle
3. Top plate diameter (width): 105 mm, bottom cover diameter (width): 105 mm bell-shaped rubber bellows rubber bellows diameter: 146 mm

4. Bumper block/bumper block without bumper
5. Belt loop/Girdle ring/Girdle hoop: with one piece of belt loop/girdle ring/girdle hoop

Min. pressure: 0bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 1.5kg

Vibration isloation-dynamic characteristic values
Design height H: recommended 175mm, minimum 160mm

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [KN] 1.9 2.5 3.5 3.8 4.5 5.2 1.8
Spring rate [N/mm] 46 59.5 73 86 99.5 112.5
Natural frequency [Hz] 2.5 2.5 2.4 2.4 2.4 2.4

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 180 1.6 2.3 2.9 3.5 4.1 4.7 1.8
160 2.4 3.15 3.9 4.7 5.6 6.4 1.6
140 2.9 3.88 4.8 5.8 6.8 7.8 1.5
120 3.4 4.5 5.7 6.8 7.9 9.2 1.3
100 3.9 5.23 6.5 7.8 9.1 10.4 1.1
80 4.3 5.7 7.1 8.5 10 11.4 0.7

About Packing

Model No.: 2B7070

Net Weight: 1.589KG

Gross Weight: 19.668KG

Box Weight:0.6KG

Box Size: 29*29*42cm

Packing Quantity: 12

Applications

This air spring can replace FD 70-13 CI G1/4 Continental air springs. It can be used in many industrial equipment.

Airbags for web assembly machines

Pneumatic secondary lift airbags

Air springs for gate valve operators,

Air tires for forming presses

Airbags for cable tensioning machines

Air cushions for pipe thread making machines

Air cushions for mold separators

Chassis dynamometer lift air bag

Auto air bag

Car speedometer test bench air bag

Leather pull soft air bag

Shock pull soft air bag

Jerboa air bag
