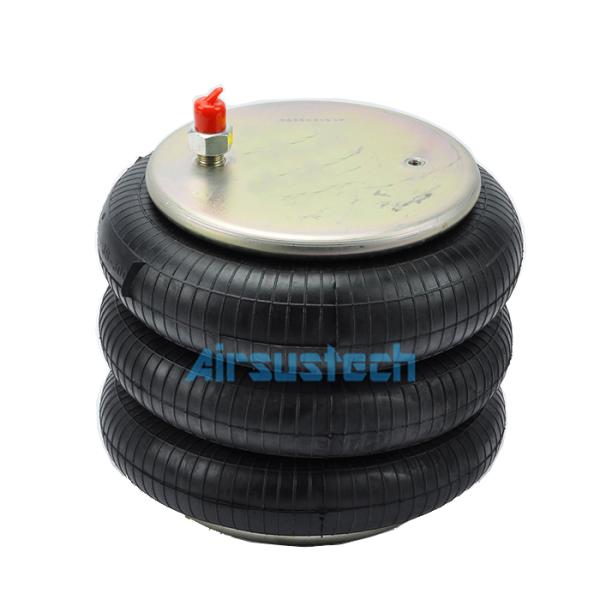

Euolid/Meritor After Market E-FS7994 Replacement Triple Convoluted Rubber Shocks

Cross Reference

Euolid/meritor After market E-FS7994

Euolid/meritor After market E FS7994

Euolid/meritor After market EFS7994

Triangle 4546

Triangle 6364

Goodyear 3B12-328

Goodyear 3B12 328

Goodyear 3B12328

Contitech FT 330-29 546

Contitech FT 330 29 546

Contitech FT330-29 546

Contitech FT330 29 546

Contitech FT33029546

Contitech FT64572

Firestone W01-358-7994

Firestone W01 358 7994

Firestone W013587994

Watson&chalin AS-0019-F

Watson&chalin AS 0019 F

Watson&chalin AS0019F

Specifications and Detailed Technical Parameters: 3B7994

Nut/blind nut

Top plate screw (nut) teeth: 3/8-16UNC,3/4-16UNC

Bottom cover plate screw (nut) teeth: 2×3/8-16UNC

The screw center distance of the Top cover plate: 140 mm

The screw center distance of the bottom cover plate: 157.5 mm

Air hole/air inlet/air fittings

Air hole/air inlet: 1/4NPTF

The air inlet/air hole/ air fittings is combined with the screw teeth

Rubber Bellows

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber bellows stroke: 130mm-460mm

Bumper block/bumper block

With bumper block

Belt loop/Girdle hoop/Girdle ring

2 pieces of belt loop/girdle hoop/girdle ring

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg

Pneumatic application-static characteristic values

Force F[KN]

Packing Details

Model Size: 3B7994

Net Weight: 6.506kg

Gross Weight: 7.086kg

Box Weight: 0.58kg

Box Size: 33*33*22cm

Packing Quantity: 1

About us

Guangzhou Guomat air spring Co., Ltd. is an air spring manufacturer dedicated to the research and development, production and sales of air springs: air shock absorbers, air springs, air shock absorbers, air pumps, and shock absorbing airbags. Founded in 2008, it is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, We used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products.

The related picture of 3B7994
