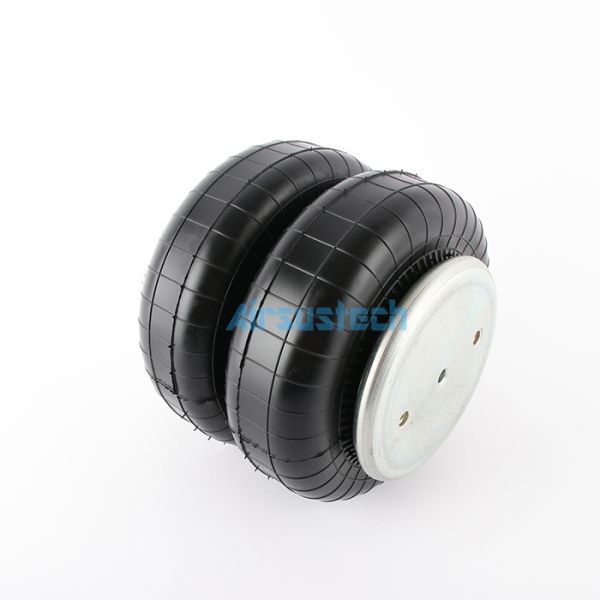

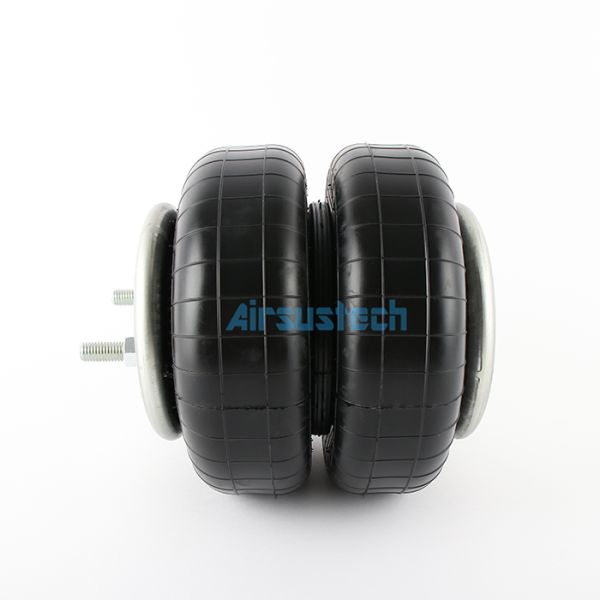

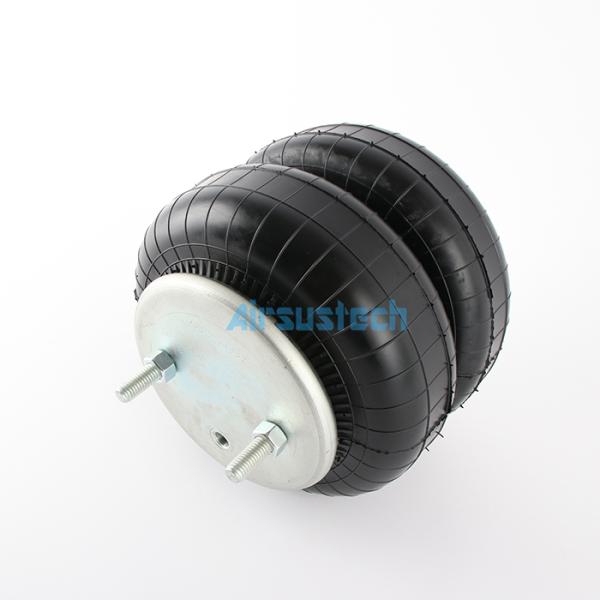

2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
2 Convoluted Rubber Industrial Air Springs Assembly Tuthill 6352 Replacement
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6943
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and mental
Quality Assurance :
1 Year
Original :
Guangzhou, China
Packing :
Neutral Box Or As Customers' Request
Size :
24×24×24cm
Application :
Vibration Table Or Other Industrial Equipment
Cross Reference :
Tuthill 6352
Sample :
Available
HS Code :
8708809000
Description

Tuthill 6352 Replacement 2 Convoluted Rubber Industrial AIRSUSTECH Air Springs Assembly

Basic Product Information


Product Category: Industrial Equipment Shock Absorption
Scope of application: air cushion of mold separator, air bag of rolling machine, air tire of air bag three-dimensional vibration table, air bag of rubber vibration table, air spring of roller friction brake, air cushion of conveyor, air spring of straightening machine, air suspension of vehicle, etc.

Cross Reference

Tuthill 6352

Watson&Chalin AS-0041

Triangle 6332

Triangle 4426

Firestone W01-358-6943

Firestone W01 358 6943

Firestone W013586943

Contitech FD200 25 426

Contitech FD 200-25 426

Contitech FD200 25 426

Contitech 161332

Goodyear 2B9-250

Goodyear 2B9 250

Goodyear 578923206

Neway/SAF 90557237

Ridewell 1003586943C

V-Steer II (Lift Bag)

Van Raden

2B6943 Specifications and Tecnical Data

Nut/blind nut

Top plate screw (nut) teeth: 2 x 1/2-13UNC

The screw center distance of the top cover plate: 89 mm

Screw (nut) teeth of the bottom cover plate: 2 x 3/8-16UNC

Screw center distance of bottom cover plate: 89mm

Air hole/air inlet/air fitting

Air hole/air inlet: 1/4NPT

Center distance between air inlet and nut: 44.5 mm

cover plate

Top plate diameter (width): 160 mm

Diameter of bottom cover (width): 160 mm

Maximum height: 325mm

Minimum height: 79mm

Working stroke: minimum79 mm to maximum 325 mm

others

Bumper block/bumper block: No bumper

Belt loop/Girdle hoop/Girdle ring: one piece

Min. pressure: 0 bar

Return force to min.height: ≤250N

Overall weight with clamped plates: 3.5kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 254mm, minimum 230mm

Pressure p[bar] 3 4 5 6 7 8 Vol. V[l]
Force(Load) [KN] 6.0 8.1 10.2 12.3 14.4 16.5 8.6
Spring rate [N/cm] 730 930 1200 1390 1660 1840
Natural frequency [Hz] 1.8 1.8 1.7 1.7 1.7 1.7

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 290 4.1 5.6 7.3 9.0 10.5 12.4 9.4
260 5.6 7.3 9.4 11.3 13.4 15.4 8.9
230 6.6 8.8 11.1 13.4 15.8 18.1 8.4
200 7.5 9.9 12.5 15.0 17.6 20.2 7.7
170 8.3 11.0 13.8 16.6 19.4 22.2 7.0
140 8.9 11.8 14.8 17.7 20.7 23.6 6.1
110 9.3 12.3 15.6 18.7 21.9 24.6 5.1

Packing Details

Model No. Net Weight Gross Weight Box Weight Box Size Packing Quantity
2B6943 3.861kg 4.241kg 0.38kg 24*24*24cm 1
