Airtech 140293 111003/1B-190FB One Convoluted Replacement 1B1209 AIRSUSTECH Industrial Air Springs Assembly

Specifications and Detailed Technical Parameters:AIRSUSTECH 1B1209

Nut/blind nut

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 70 mm

Air hole/air inlet/air fittings

Air hole/air inlet: G3/4

The air hole is in the middle of the screw center

Cover plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135 mm

Bell rubber bellows

Maximum diameter of rubber bellows: 215 mm

Natural diameter of rubber bellows: 90 mm

Working stroke: minimum 50 mm to maximum 115 mm

Maximum height: 115 mm

Minimum height: 50 mm

Bumper block/bumper block

No bumper block

Belt loop/Belt loop/Girdle hoop

Without belt loop/girdle hoop

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 110mm, minimum 90mm

Pressure p[bar] 3 4 5 6 7 8 Vol. V[l]
Force(Load) [KN] 3.9 5.3 6.8 8.3 9.6 10.9 1.8
Spring rate [N/cm] 1315 1620 1925 2230 2535 2840
Natural frequency [Hz] 2.9 2.8 2.7 2.6 2.6 2.6

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 120 3.1 4.3 5.6 6.9 8.0 9.2 1.9
110 3.9 5.3 6.8 8.3 9.6 10.9 1.8
100 4.5 6.1 7.9 9.7 11.0 12.4 1.7
90 5.0 6.8 8.9 10.8 12.2 13.8 1.5
80 5.5 7.4 9.7 11.6 13.3 15.0 1.3
70 5.9 7.9 10.3 12.3 14.2 16.0 1.1
60 6.3 8.2 10.7 13.0 15.0 17.0 0.9

OEM NO.

Airtech 140293

Airtech 111003

Airtech 1B-190FB

Weforma WBE 300-E1

Weforma WBE 300 E1

Weforma WBE300-E1

Weforma WBE300 E1

Weforma WBE300E1

Norgren PM/31081(8×1)

Norgren PM31081(8×1)

Festo EB-215-80

Festo EB 215 80

Festo EB215 80

Festo EB21580

Bosch 8224 19003

Bosch 822419003

Cotitech FS 120-9

Cotitech FS120-9

Cotitech FS 120 9

Cotitech FS120 9

Dunlop(FR) 8''1S08101

Dunlop(FR) 8''1 S08101

Firestone W01-M58-6165

Firestone W01M586165

Firestone W01 M58 6165

Firestone WO1M586165

Firestone WO1-M58-6165

Firestone WO1 M58 6165

Megatech 1S120-9 3/4 M8

Megatech 1S120 9 3/4 M8

Megatech 1S120 9 3/4M8

Installation instructions


Return
The air spring is a single-action pneumatic cylinder.The return stroke must be actuated by external forces, for instance a load, a counter cylinder or a spring.
Installation space
The installation space is to be constructed such that the bellows does not rub against the machine.
Down stops
Mechanical down stops prevent the spring from being damaged as a result of overcompression.
Up stops
Mechanical up stops prevent the actuator from being overstressed or bursting.
Force
The force depends directly on the stroke positions. At a constant pressure, the force decreases as the stroke increases.

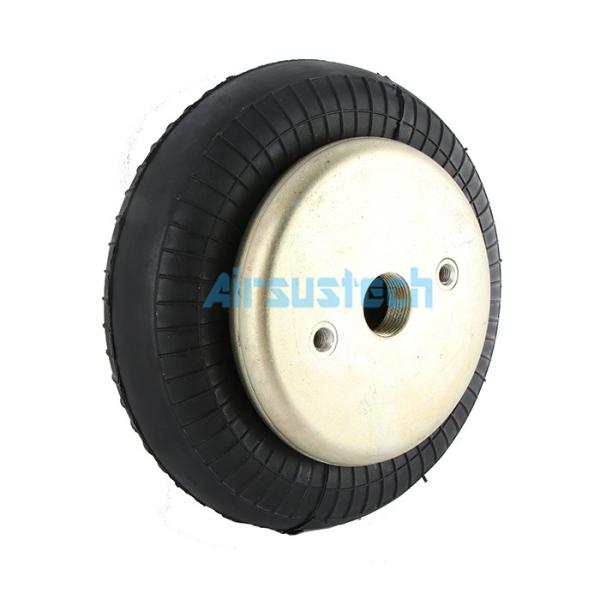

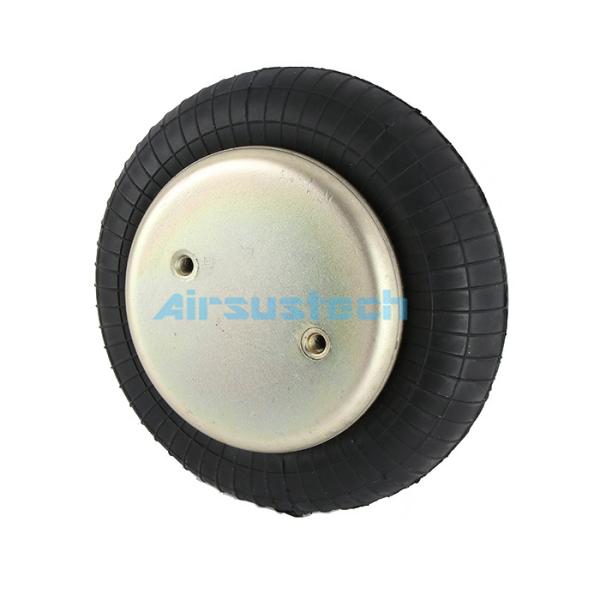

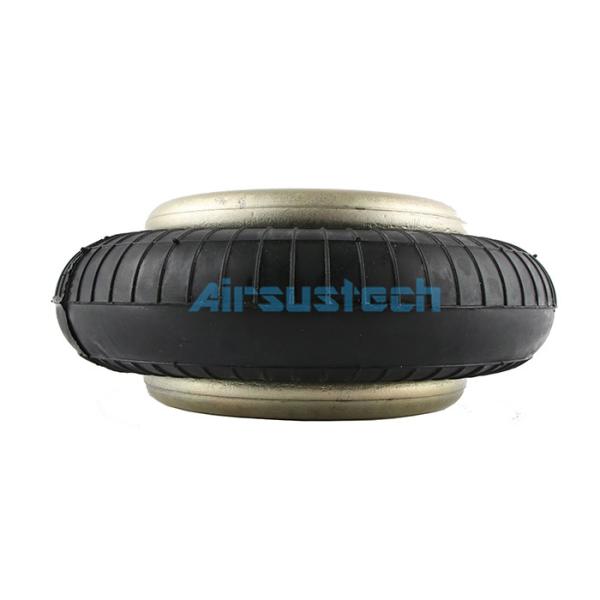

The photos of 1B1209
