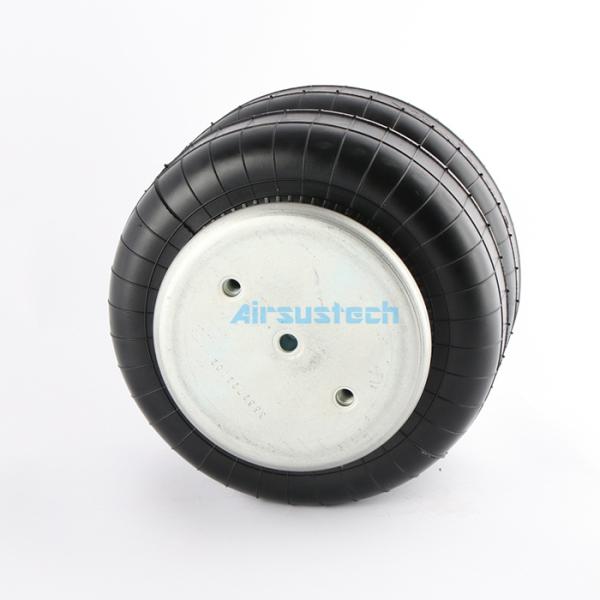

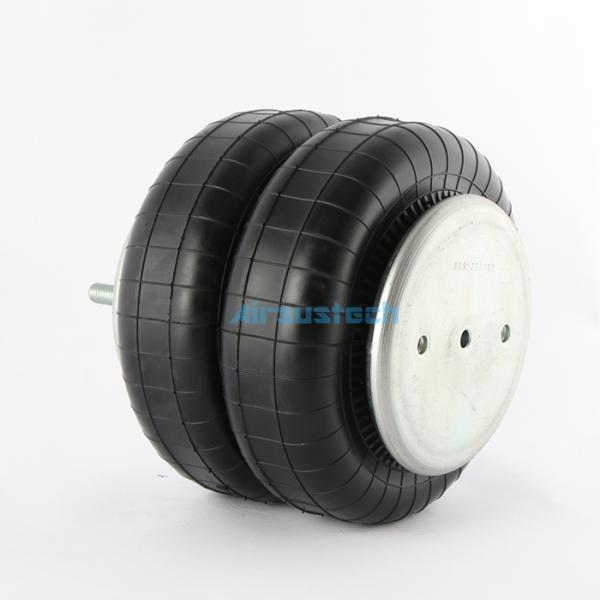

Contitech FD 200-25 426/161332 Double Convoluted Air Spring Rubber Bellows Supplier

Cross OEM NO.

Firestone W01-358-6943

Firestone W01 358 6943

Firestone W013586943

Contitech FD200 25 426

Contitech FD 200-25 426

Contitech FD200 25 426

Contitech 161332

Goodyear 2B9-250

Goodyear 2B9 250

Goodyear 578923206

Triangle 6332

Watson&Chalin AS-0041

Neway/SAF 90557237

Ridewell 1003586943C

Tuthill 6352

V-Steer II (Lift Bag)

Van Raden

2B6943 Specifications and Tecnical Data

Min. pressure: 0 bar

Return force to min.height: ≤250N

Overall weight with clamped plates: 3.5kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 254mm, minimum 230mm

Pneumatic application-static characteristic values

Force F[KN]

The image

How it works

The best shock absorber should be the air spring. The rubber air spring has the advantages of high frequency isolation, sound insulation and low self-vibration frequency, which can better achieve vibration isolation and ensure the safety and stability of the base of the vibration equipment and the control system. . Therefore, the rubber air springs introduced by Gaomaat air spring manufacturers are widely used in equipment shock absorption equipment.

After the rubber air spring is assembled into an assembly, the compressed air is filled into the air spring, and the compressibility of the air is used to realize the elastic effect. The air spring has nonlinear characteristics, and its characteristic line can be designed into an ideal curve according to the needs; the stiffness of the rubber air spring changes with the load, so that the spring device has ideal characteristics: the rubber air spring can withstand the axial and radial direction at the same time. It can also transmit torque to the load.

The rubber air spring can obtain different bearing capacities by adjusting the internal pressure, so it can meet the needs of various loads: the rubber air spring is light in weight and has a long service life; the rubber air spring has good high-frequency vibration isolation and sound insulation performance. The rubber air spring requires little installation space and is easy to replace.
