High-speed Punch Air Spring F-300-2 Yokohama S-300-2R S 300 2R Double Convolution Air Shock

Comparable To

Specifications and Detailed Technical Parameters: F-300-2

Height

Design Height(mm):152

Max. Height(mm): 242

Min Height(mm): 82

Maximum stroke(mm): ±60

Max diameter(mm): 360

Standard Height,Internal Pressure 0.49 Mpa

Effective Area (cm2): 710

Volume(L): 11.2

Load (KN): 34.7

Dynamic Spring Parameters (N/mm): 490

Natural Frequency (Hz): 1.9

Max inner pressure limited (Mpa): 0.88

Burst inner pressure (Mpa): 3.9-4.9

Air spring F-300-2 used in high-speech punch

High-speed punching equipment is a professional machine tool for stamping and processing of small precision parts such as precision electronics, communications, computers, household appliances, auto parts, motor stators and rotors. If the corresponding shock absorption device is not installed, there is often a great shock and vibration during operation. The consequences of such shock and vibration are mold damage or destruction, which directly affects the product quality, and the consequences are immeasurable.

Air spring is a flexible unit specially used for certain type of mechanical equipment to solve the vibration and noise problems of this type of equipment.

Putting the vibration damping material - Guomat air spring under the equipment, can deal with the vibration and noise of the punching machine from the source, and realize environmental protection and quietness.

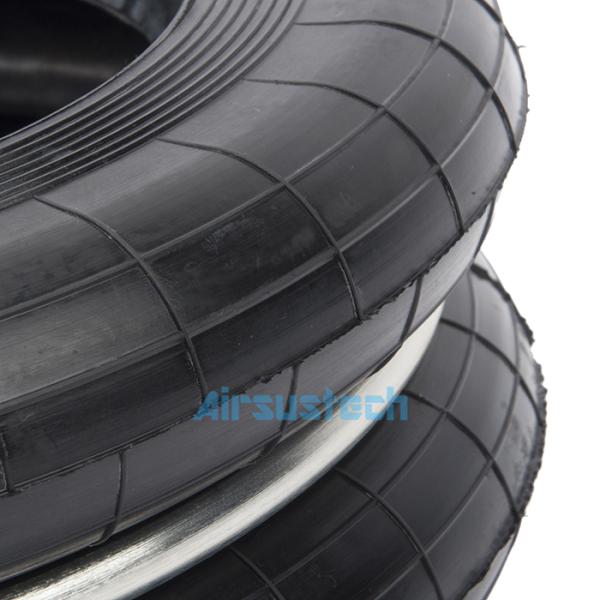

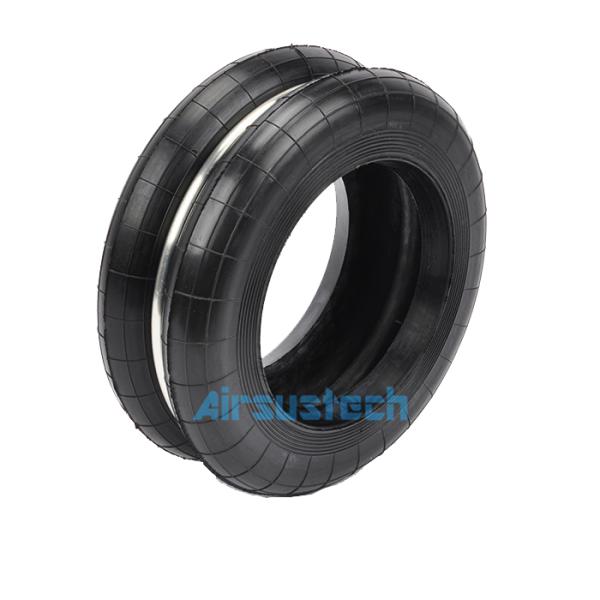

The related picture of F-300-2

FAQ

Q1: HOW ABOUT THE QUALITY OF THE PRODUCTS?

A: Our products are certified to ISO9001/TS16949:2009 international quality standards. We have very strict Quality Control Systems.

Q2: WHAT OTHER MODELS YOUR COMPANY MAUNFACTURERS?

A: Our company also have S-200-2R, 3R, 4R; S-220-2R,3R, 4R, S-400-2R,3R,4R,5R or others. If you have any questions, welcome to contact us.

Q2 .WHAT IS YOUR WARRANTY TERM?

A:There is a 12 months warranty for our export products has run outfrom the date of the shipment.

Q3 .CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS ?

A:YES,OEM is welcomed.
