Specifications
Brand Name :
AIRSUSTECH
Model Number :
LHF500/220-2
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
LHF500/220-2
N.W. :
17.5.0 KG
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
W01-358-7301
Top BOLT CIRCLE DIA :
596 mm
Bottom BOLT CIRCLE DIA :
596 mm
Air Inlet :
no plate
Bumper :
Without
Trademark :
AIRSUSTECH or Neutral
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

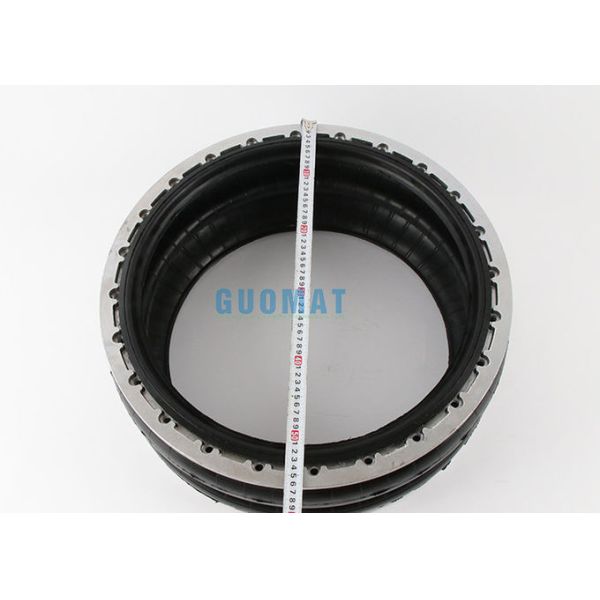

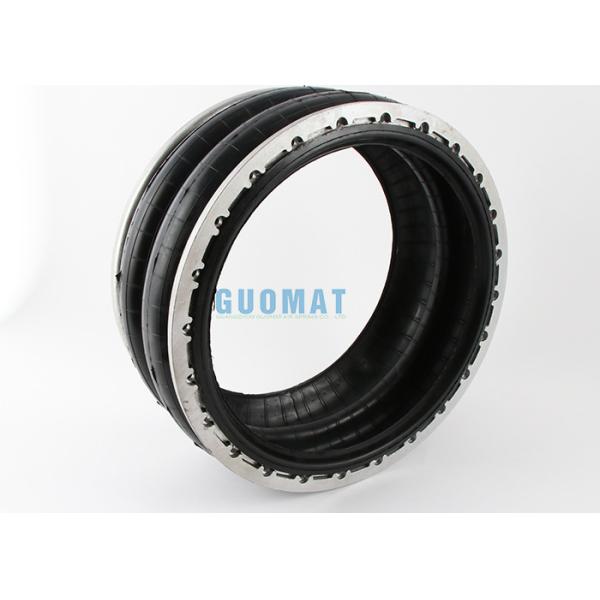

W01-358-7301 Firestone Air Spring Ribbed Neck Aluminum Bead Rings (Unequal Spacing) 17/8 b,n,w


AIRSUSTECH LHF500/220-2 OEM Reference:

AIRSUSTECH Part number: LHF500/220-2

AIRSUSTECH Part number: LHF500 220-2

Firestone:Style 215
Ribbed Neck Aluminum Bead Rings (Unequal Spacing) 17/8 b,n,w
Firestone Part number: W01-358-7301;

Firestone Part number: W01 358 7301;

Firestone Part number: W013587301;

Two Ply Bellows
Rubber bellows only
Firestone Part number: W01-358-7912;

Firestone Part number: W01 358 7912;

Firestone Part number: W013587912

Item #: W013587912
Manufacturer: Firestone Industrial
Supplier Part #:W01-358-7912
Manufacturer Part Number W013587912
Part number changes: W01-358-7912, WO13587912, WO1-358-7912
Additional information: WO1-358-7912, 215C type (previously only used for rubber bellows)

Standard Imperial / 215C AIRSPRING BELLOWS

Specification of AIRSUSTECH LHF500/220-2:

Manufacturer Part Number Short Description ;W01-M58-7912, W01M587912, WO1-M58-7912, WO13587912;W01-M58-7301, W013587301, WO1-358-7301, WO13587301 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 707 Dim# C (Bolt Circle Diameter mm) 596
Maximum Height (mm) 84 # of Bolts (each ring) 32
Maximum Stroke (mm) 284 Design Height (mm) 381
Minimum Usable Height (mm) 368 3 Bar (kN) 78.5
25 mm (kN) 174.6 5 Bar (kN) 132.9
50% of Max Stroke (kN) 150 7 Bar (kN) 187.9
Maximum Stroke (kN) 106.5 Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram 113 7 Hz 97
Material 2-Ply, High Strength Cord 13 Hz 99.3
25 Hz 99.8

Bead type
4
Bolt circle diameter (inch)
23.5
Number of bolts (per ring)
32
Air isolator
Design height
10.5
Load (at design height): 40 psig (lbs)
15840
Load (at design height): 60 psig (lbs)
24140
Load (at design height): 80 psig (lbs)
32550
Natural frequency (@80 psig) (cpm)
86
Isolation percentage at mandatory frequency 400 CPM
95.1
Isolation percentage at mandatory frequency 800 CPM
98.8
Isolation percentage at mandatory frequency 1500 CPM
99.7
