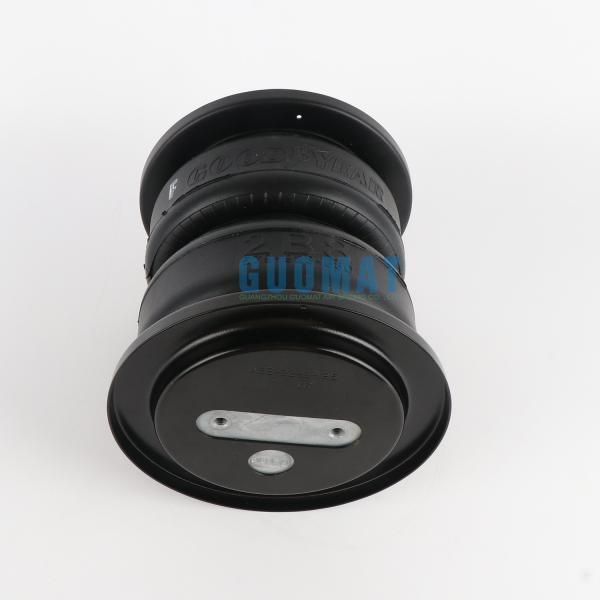

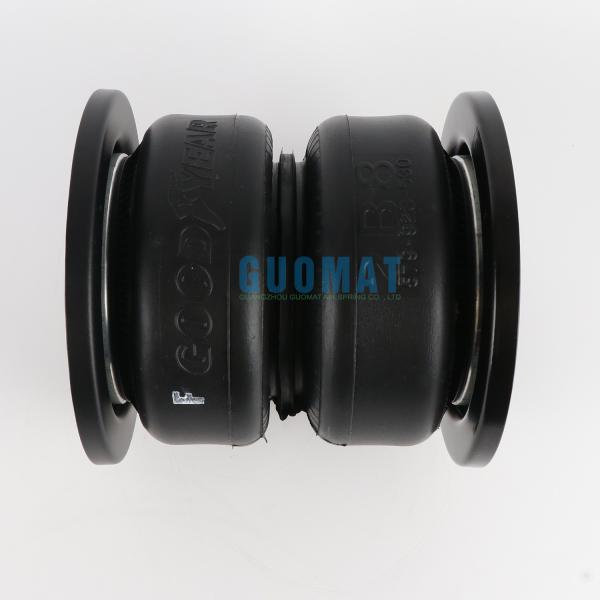

FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery
Specifications
Brand Name :
Goodyear
Model Number :
2B8-850
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Mexico
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
2.8 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Stroke :
150 mm
Trademark :
Goodyear
Transport Package :
Carton
Specification :
24*24*24 cm
Origin :
Mexico
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Car Make :
Hendrickson
Position :
Front and Rear
OEM :
Yes
Type :
Shock Absorber
Description

FD 120-20 ContiTech Industrial Air Springs Cross Goodyear 579923530 For Small Machinery

FD 120-20 ContiTech Cross OEM

ContiTech Part Number:FD 120-20 CI G 1/4
ContiTech Part Number:FD120-20 CI G 1/4

ContiTech Part Number:FD 120-20
ContiTech Part Number:FD120-20

Goodyear Part Number: 2B8-850;
Goodyear Part Number: 2B8 850;
Goodyear Part Number: 2B8850

Goodyear Flexmember Part Number: 579-923-530
Goodyear Flexmember Part Number: 579 923 530
Goodyear Flexmember Part Number: 57992-530

Firestone Part Number:W01-M58-6353

Firestone Part Number:W01 M58 6353

Firestone Part Number:W01M586353

2B8-850 STEMCO STEMCO

Goodyear Air Spring 579-923-530
W01-M58-6353 Firestone Metric Double Swivel Air Spring
Flint Airmount / Airstroke Actuator WO1-M58-6353, Metric 8 x 1.25 Dark Nut, 1/4 BSP
W01-M58-6353, W01M586353, WO1-M58-6353, WO1M586353
W01-M58-6387 W01-M58-6988

2B8-850 stroke actuator

OEM Original Manufacturer:

Goodyear Original: 2B8-850

FD 120-20 ContiTech parameter:

Maximum Diameter @ 7 Bar (mm)

FD 120-20 ContiTech

ISOLATOR
218 Design Height (mm)
Maximum Height (mm) 203
221 Load (at Design Height) at: 3 Bar (kN)
Maximum Stroke (mm) 3.8
145 Load (at Design Height) at: 5 Bar (kN)
Minimum Usable Height (mm) 6.6
76 Load (at Design Height) at: 7 Bar (kN)
Force in kN @ 5 Bar at Stroke of 25 mm 9.4
10.9 Natural Frequency (@5 Bar)(fn(Hz)
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke 1.9
9.1 % of Isolation at Forced Frequency 7 Hz
Force in kN @ 5 Bar at Stroke of Maximum Stroke 92.1
5.7 % of Isolation at Forced Frequency 13 Hz
Material 98.2
2-Ply Standard Cord % of Isolation at Forced Frequency 25 Hz
END CLOSURE DETAILS 99.5
Bead plate Type Dim. A (Blind Nut Centers) (mm)
1 70

Maximum diameter at 7 Bar (mm) 218
Maximum height (mm) 76
Maximum stroke (mm) 145
Minimum usable height (mm) 221
The force at a stroke of 25 mm at a pressure of 5 bar is 10.9kN
The force at 50% of the maximum stroke under 5 bar pressure is 9.1kN
The force at the maximum stroke at 5 bar pressure is 5.7kN
Material 2-layer standard wire
End details
Bead plate type 1
Center spacing of threaded holes (mm) 70

2B8-850 vibration isolator
Design height (mm) 203
Load capacity (at design height) under 3 bar pressure (kN) 3.8
Load capacity (at design height) under 5 bar pressure (kN) 6.6
Load capacity (at design height) under 7 bar pressure (kN) 9.4
Natural frequency (@ 5 Bar) (Hz) 1.9
Isolation percentage (%) at 7 Hz frequency 92.1
Isolation percentage (%) at 13 Hz frequency 98.2
Isolation percentage under 25 Hz frequency (%) 99.5

Other kinds of GUOMAT air springs:

Double Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
2B12012 FD 12020 76 240 221
2B33022 FD 330-22 75 340 230
2B33030 FD 330-30 77 355 283
2B53022 FD 530-22 77 400 233
2B53030 FD 530-30 77 415 273
2B53035 FD 530-35 77 420 313
2B96022 FD 960-22 95 490 225
2B133025 FD 1330-25 92 570 243
