AIRSUSTECH 2B16X2 Data Replace Norgren M/31162:

Manufacturer brand:AIRSUSTECH

AIRSUSTECH Part NO.:2B 16X2

16X2 AIRSPRING
LOBES: 2
ø MAX: 430
STATIC HEIGHT: 180 MM
TOTAL STROKE: 243 MM
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 6.12 LBS

DIMENSIONS: 16" X 16" X 4"

Other quick details of AIRSUSTECH 2B16X2 Replace Norgren M/31162:

Range: M / 31000

Material-Nuts and Screws: Zinc-Chromium Alloy Steel

Medium: compressed air
Port size: G1 / 2
Operation mode: single action
Working pressure: 0 ... 8 bar
Operating temperature: -40 ... 70°C
Stroke length: 315 mm
Theoretical power: 65250 N
Certification-REACH: available on request
Certification-RoHS compliant: available on request
Certification -: ISO
Classification-eClass 11: 51010390
Classification-HS Code: 84123100
Classification-HTS code: 8412310000
Classification-UNSPCS code: 31251504
Classification-China ECCN: EAR99
Size-Diameter: 435.0 mm
Size-height: 125.0 mm
Size-weight: 7.600 kg
Size-Unit of Measurement: EA
Performance-shelf life: 5 years

AIRSUSTECH 2B16X2 size Replace Norgren M/31162

Nut/ Blind Nut

Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 282 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 282 mm

air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

cover plate

Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM

Rubber bellows

Rubber bellows MAX diameter: 430 mm
Working stroke: 77 MM- 320 MM
Maximum height: 320 MM
Minimum height (compression height): 77 mm
Stroke height: 155 mm
bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop

The drawing of AIRSUSTECH 2B16X2 Replace Norgren M/31162:

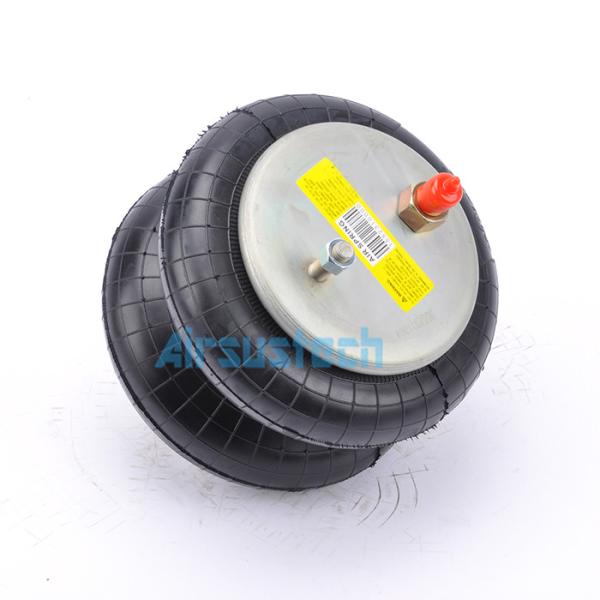

The photos AIRSUSTECH 2B16X2 Replace Norgren M/31162:
