Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
2B6900
Model NO. :
2B6900
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
3/4 NPT
Top Plate Hole/Stud :
3/8-16unc
Bottom Plate Hole/Stud :
3/8-16unc
Top Plate Dia :
160 mm
Bottom Plate Dia :
160 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
3.5 Kg
Description

Fd 200-19 319 Contitech Air Spring W013586900 Air Spring Actuator with 3/4 NPT Air Inlet


OEM Original Equipment Manufacturer:

BELLOW Numbers COMPLETE Numbers
CONTITECH FD 20019 S / 895 N
CONTITECH FD20019S / 895 N		 Firestone : W01-358-6900
Firestone : W01 358 6900
Firestone : W013586900
FIRESTONE FLEX 20 Contitech : FD 200-19 320
Contitech : FD 200 19 320
Contitech : FD200 19 320
FIRESTONE W01-358-0138
FIRESTONE W01 358 0138
FIRESTONE W013580138		 Goodyear : 2B9-200
Goodyear :2B9 200
Goodyear : 2B9-202
Goodyear : 2B9-216
095-0009 Hendrickson : S8768/458433
GOODYEAR 2B 9-200 : 578423202
578923202 Triangle: 6325
Triangle: 4320
PHOENIX 2B 12R
PHOENIX 2B12R		 Dayton : 3546910
PIRELLI T20 86600 Leland : Sc2011
AIRKRAFT 114001 Navistar : 554783C1
Dina : A812719/AZ812719
SAF Holland : 57006910
Trailers De : 133128
Brake & Wheel : M3501
Ridewell : 1003586910C
Tuthill : 1371
Watson&Chalin : AS-0001/AS-0156G

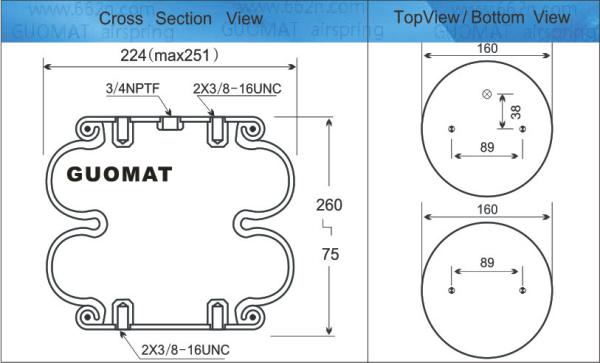

Specifications and Technical Data of W01-358-6900

Firestone part number: W01-358-6900 / W013586900 / W01 358 6900
Compressed height: 3.12
Number of top plates: 3079
Top cover diameter: 6.31 inches / 160 mm
Number of bottom pistons: 3090
Bottom cover diameter: 6.31 inches / 160 mm
Screw center distance: 89 mm
The distance between the nuts is 44.5 mm
Top cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Bottom cover screw (nut) teeth: 2pcsX 3 / 8-16UNC
Rubber bellows MAX diameter: 251 mm
Rubber bellows natural diameter 224 mm
Working stroke: up to 260 mm to MIN 75 mm
Air vent / air inlet: 3/4 NPTF
Firestone Corrugated Tube Number: 20
Goodyear part number: 2B9-200 / 2B9200 / 2B9 200
Goodyear Bellows Number: 578-92-3-202 / 578923202/578 92 3 202
Number of grids: 1371
Hendrickson Trailer No.: S-8768
Hendrickson Truck Number: 45843-3
Ridewell number: 1003586910C
Triangle part number: 4320
Triangle bellows number: 6325
Watson&Chalin#:AS-0001

Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-6910
Blind nuts, 1/4 NPT, bumper W01-358-6911
Blind nuts, 3/4 NPT W01-358-6900
Blind nuts, 3/4 NPT, bumper W01-358-6901
Countersunk steel bead rings,
13/4 bolts, nuts, washers W01-358-6923
Rubber bellows only W01-358-0138


The composition of convoluted air springs

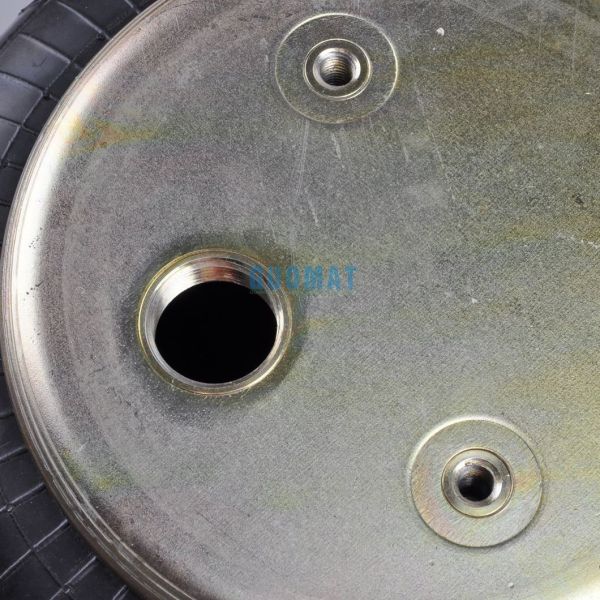

Upper Steel Plate: upper cover plate is bearing pressure and seal air inside
Waist ring: Stable part skins to prevent deformation
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Gas-Filled hole / Air Inlet: By filling air porosity for inflatable air spring
Flexible bellows: The main part, can lock the air and flexible activities up and down
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision, You can choose to have also can not
The connotation of screw hole: fixed as the installation of air spring in car or equipment
Lower steel Plate: Lower steel Plate is bearing pressure and seal air inside


How to Calculation For Pneumatics, Such as

• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)

FD200-19319 Contitech Air Bags W013586900 Air Spring Actuator 16Unc
FD200-19319 Contitech Air Bags W013586900 Air Spring Actuator 16Unc
FD200-19319 Contitech Air Bags W013586900 Air Spring Actuator 16Unc

Other kinds of conitech air springs:

FS 120-9 3/4 M8 FD 200-19 450 FD 330-22 500 FD 40-10
FS 120-9 1/4 M8 FD 200-19 448 FD 330-22 313 FD 70-13
FS 200-10 3/4 M8 FD 200-19 506 FD 330-22 337 FD 120-17
FS 200-10 4 FD 200-19 510 FD 330-22 318 FD 120-17
FS 330-11 474 FD 200-22 524 FD 330-22 346 FD 120-17
FS 330-11 FD 200-19 P04 FD 330-22 364 FD 120-17
FS 330-11 468 FD 120-20 FD 330-22 365 FD 200-22 510
FS 330-14 FD 120-20 509 FD 330-22 366 FD 200-22 706
FS330-11 647 FD 120-20 509 FD 330-22 367 FT330-29 546
FS 40-6 1/8 M8 FD 200-25 FD 330-22 331 FT330-29 546
FS120-10 FD 200-25 427 FD 330-22 368 FT330-29 547
FS 70-7 1/4 M8 FD 200-25 454 FD 330-22 363 FT330-29 430
FD200-19 504 FD 200-25 FD 330-22 327 FT330-29 431
FD200-19 FD 200-19 FD 330-22 343 FT330-29 432
FD 200-19 724 FD 200-25 453 FD 330-22 334 FT330-29 433
FD 200-19 539 FD 200-25 426 FD 330-30-371 FT330-29 469
FD 200-19 505 FD 200-25 427 FD 331-26-514 FT330-29 466
FD 200-19 319 FD 200-25 463 FD 331-26-541 FT330-29 498
FD 200-19 310 FD 200-25 429 FD 331-26-480 FT412-323
FD 200-19 315 FD 200-25 507 FD 530-35 545 FT210-32
FD 200-19 362 FD 200-25 511 FD 530-35 543 FD 330-22 364
FD 200-19 320 FD 200-25 717 FD 530-35 530
FD 200-19 504 FD 530-22 321 FD 530-35 545
FD 200-19 452 FD 330-22 363 FD 530-35 720
FD 200-19 499 FD 330-22 472 FD 120-17 509
FD 200-19 315 FD 330-22 471 FD 40-10
