Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
2B7070
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
115 mm
Air Inlet :
G1/4
Top Plate Hole/Stud :
M8
Bottom Plate Hole/Stud :
M8
Top Plate Dia :
105 mm
Bottom Plate Dia :
105 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
24*24*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
1.7 Kg
Description

Fd70-13 Contitech Air Spring Industrial Air Bags Single Convoluted For Vibrating Screen

OEM COMPLETE Number
FD 70-13 1/4 M8
fd 70-13 contitech
fd 70-13 1/4 m8
fd 70-13
fd 70 13
fd 70-13 ci
contitech fd 70-13 ci
continental fd 70-13 ci
Firestone Style :25(255-1.5)
Firestone No.:W01-M58-6105
Manufacturer Original-part no.
Model Gigant 196027

Firestone No.:W01 M58 6105

Firestone No.:W01M586105

AIRSUSTECH:2B7070

Fd 70-13 Specifications and Detail Technical Parameters

Specifications

Weight 1,4 kg

G1/4: max. 25 Nm

M8: max. 25 Nm

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 44.5 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

Cover Plate

Top Cover Plate Diameter (Width): 105 mm

Bottom Cover Plate Diameter (Width): 105 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 162 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Technical dat
Weight :1.6kg
Design height :152mm
Deflection(Hight min) :65mm
Deflection(Hight max) :175mm
Working stroke :110mm
Loading cap.at 3.0bar :2.88KN
Loading cap.at 7.0bar :7.25KN

CONTITECH PART NO. FIRESTONE PAGE PART NO. CONTITECH PART NO. FIRESTONE PAGE PART NO.
FD 120-17 3/4 M8 W01-358-7325 FD 412-18 P01 W01-R58-4073
FD 138-18 1/2 M10 W01-R58- 4055 FD 412-18S WO1-R58- 4044
FD 138-18S W01-R58 4045 FD 614-26 12 M10 W01-R58 4064
FD 200-19 1/4 M8 W01-M58-7679 FS 138-8 W01-R58 4054
FD 200-19 713 W01-358-7795 FS 330-11 474 W01-358 -7008
FD 200-19 PO2 W01-M58-7756 FS 44-10 W01-R58-4051
FD 200-19 P04 W01-M58 -7894 FS 44-5 W01-R58 4050
FD 200-19S W01-095. 0009 FS44-15 W01-R58-4035
FD 200-22 1/4 M10 W01-M58-7888 FT 138-26 WO1-R58- 4056
FD 200-25 1/4 M10 W01-M58 -6891 FT 210-32 1/2 M10 WO1-R58 4059
FD 200-25 1/4 M8 W01-M58-6183 FT 330-29 790 W01-358 -8042
FD 210-22 1/2 M10 W01-R58-4058 FT 412-32 12 M10 W01-R58- 4062
FD 330-22 1/1 M8 W01-358-7180 FT 412-32 P01 W01-R58- 4037
FD 330-22 318 W01-358-7403 FT 614-36 1/2 M10 W01-R58- 4065
FD 330-22 M12X1.5 M8 W01-M58 -6851
FD 412-18 1/2 M10 W01-R58- 4061

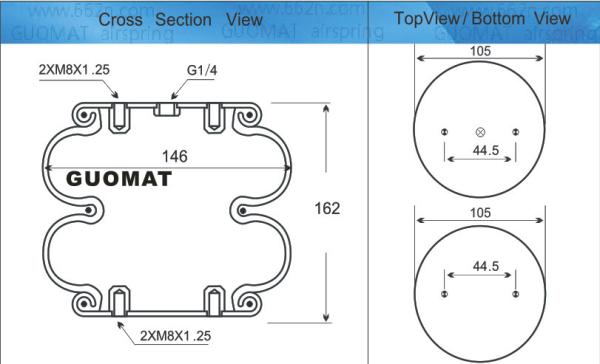

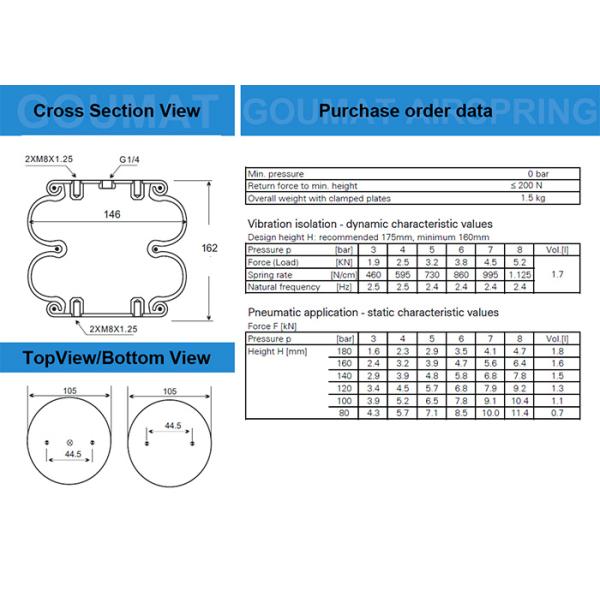

The drawing and data of AIRSUSTECH 2B7070 air spring:

FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4

FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4
FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4
FD70-13 Contitech Air Bellows M8 2B7070 Industrial Air Bags G1/4
