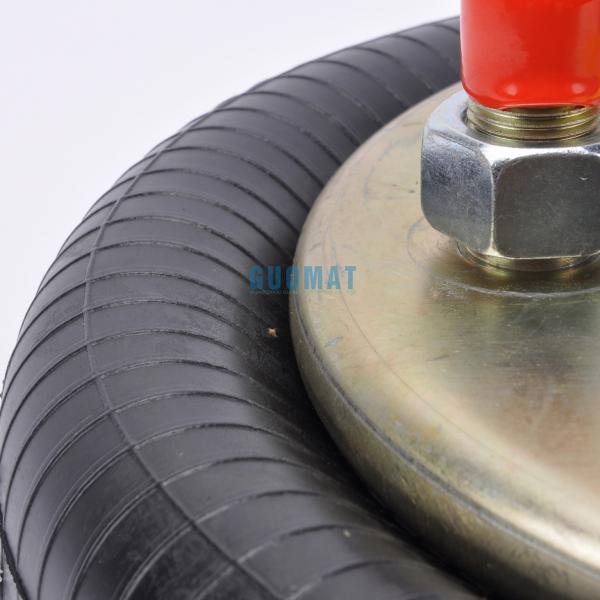

18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
2B7550
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4-18NPT
Top Plate Hole/Stud :
1/2-13unc and 3/4-16unf
Bottom Plate Hole/Stud :
3/8-16unc
Top Plate Dia :
224.5 mm
Bottom Plate Dia :
224.5 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
7.0 Kg
Description

Fd 331-26 541 Contitech Air Spring Triangle 6375 / 4480 Double Convoluted Air Bag

AIRSUSTECH 2B7550 Cross to Fd 331-26 541 Contitech Air Spring:

Manufacturer OEM REFERENCE
CONTITECH FD 331-26 480/FD 331-26 541 / FD 331-26 541
Firestone Bellows Number 228-1.5
Firestone part Number W01 358 7550 / W01 358 7555 / W01-358-7550 / W01-358 -555
GOODYEAR 2B12-440 / 2B12-346 / 2B12 440 / 2B12 346
GOODYEAR-FLEXMEMBER 578-92-3-315 / 578923315 / 578 92 3 315
Triangle 6375/4480
HISTEER 10315
WATSON & CHALIN AS-0087
Histeer 10315
HS INDUSTRIES/LINK # 10315
Top Plate Number 3271
Piston Number 3183

Specification of AIRSUSTECH 2B7550 Cross to Fd 331-26 541 Contitech Air Spring:

Assembly Weight: 13.4 lbs

Design Height: 9-11 inches

Minimum Jounce Height: 3.55 inches

Loading Capacity at 20 psig: 1,240 lbsf

Loading Capacity at 60 psig: 3,720 lbsf

Loading Capacity at 90 psig: 5,580 lbsf

Maximum Diameter: 13.5 inches

Operating Temperature: 57Cº to -54Cº

Order No 60040155 ST 207550 Air Spring
OEM References Cross References
Watson & Chalin AS-0087 Contitech FD 331-26 541
Firestone 228-1.5
Firestone W01-358-7550
Goodyear 2B12-346 Ø8.97
Goodyear 578923315 3/4''-16UNF
Triangle SP2B22RB-7550 1/2''-18NPT 1/2''-13UNC
Airtech 2B-320 / 113343 Ø12.00

6.20
3.60 ST 207550 6.20
2x3/8"-16UNC

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud

Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop


The drawing and data of AIRSUSTECH 2B7550 air spring:

18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm

18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm

18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
18NPT Pneumatic Air Bellows FD331-26541 Contitech Air Spring Systems 224.5mm
