Specifications
Supply Ability :
1000pcs/week
Payment Terms :
T/T, Western Union,Paypal or Others
Place of Origin :
Guangzhou, China
Brand Name :
AIRSUSTECH
Certification :
ISO/TS16949, ISO9001
MOQ :
3 pieces
Packaging Details :
Strong Carton Box or as Customers Requirement
Delivery Time :
3-8 Working Days
Model Number :
2B7424
Model NO. :
2B7424
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4NPT
Top Plate Hole/Stud :
2X1/2-13unc
Bottom Plate Hole/Stud :
2X1/2-13unc
Top Plate Dia :
231 mm
Bottom Plate Dia :
231 mm
Trademark :
Neutral
Transport Package :
Cartons
Specification :
33*33*22 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
6.9 Kg
Description

Fd 330-22 327 Contitech Air Springs Triangle 6316 / 4327 Hendrickson S13043 Suspension Air Bags


GUOMAT NO.2B7424 Detail information:


Nut/ Blind Nut

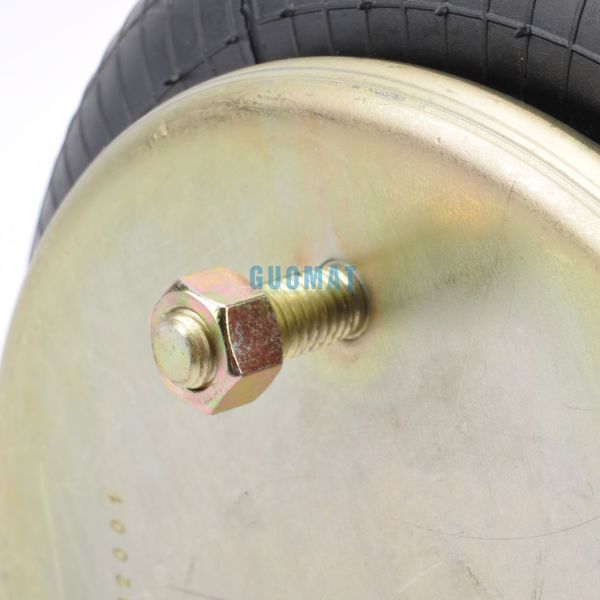

Top cover screw (nut) teeth: 2 X 1 / 2-13UNC
Top cover screw center distance: 157.5 mm
Bottom cover screw (nut) teeth: 2 X 1 / 2-13UNC
Bottom cover screw center distance: 157.5 mm

air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPT
Center distance between air inlet and nut: 73 mm

cover
Top cover diameter (width): 231 mm / 9.00 inches
Bottom cover diameter (width): 231 mm / 9.00 inches

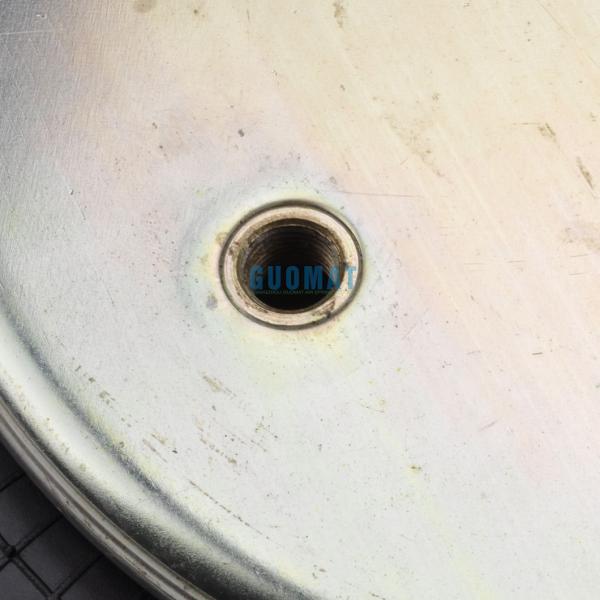

Threaded hole: 3 / 8-16

Rubber bellows


Rubber bellows natural diameter: 298 mm / 11.7 inches
Rubber bellows MAX diameter: 325 mm / 12.9 inches
Compressed height: 81 mm / 4.12 inches
Minimum bump height: 81 mm / 4.12 inches
Design height: 203 mm - 241 mm / 8-9.5 inches
Maximum height: 305 mm / 12 inches
Bellows #No. :twenty two
Working stroke: 224 mm / 8.8 inches

bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop

Manufacturer Cross OEM Reference

Other Cross OEM Reference
Firestone Bellows Number:22 Sauer : P10-755
Firestone : W01-358-7424 / W01 358 7424 / W013587424 SAF Holland : Tc1442
Firestone Top Plate Number:3220 Tuthill : 6421
Firestone Piston Number:3256 Brake & Wheel : M3509
Contitech : FD 330-22 327 /FD330 22 327 /FD33022327 Ridewell : 1003587424C
Goodyear Part Number:2B12-300 /2B12 300 /2B12300 Watson&Chalin : As0009
Goodyear Bellows Number:578-92-3-309 /578 92 3 309 /578923309 Vol-vo truck : 3130504
Triangle Bellows Number:6316 R & S Truck & Body: 1090215
Triangle Part Number:4327 Neway : 90557014(AL-41&45)
Hendrickson : S13043 Holland (Neway) Number:905-57-014
Dayton : 3547424 Watson & Chalin #:AS-0009
Leland : Sc2024 Note:R & S TRUCK & BODY # 1090215
Navistar : 554785C1

Airmount / Airstroke Actuator WO1-358-7424, 22D 2ST1/4NPT 2ST.
Maximum Diameter @ 100 PSIG (mm) 327.66 Material 2-Ply Standard Cord
Maximum Height (mm) 256.54 Blind Nut Centers (mm) 157.48
Maximum Stroke (mm) 175.26 Port Offset from Blind Nut Centerline (mm) 73.152
Minimum Usable Height (mm) 81.28 Design Height 241.3
1 Inch (pounds) 7180 40 psig (pounds) 2060
3 Inch (pounds) 6470 60 psig (pounds) 3170
Maximum Stroke (pounds) 3700 80 psig (pounds) 4280
Equivalent High Strength Style Number 210 400 CPM % 92.4
Natural Frequency (@80 psig) (cpm) 106 800 CPM % 98.2
Extended Height (Similar End Closure) Style Number 22_Ì1.5 1500 CPM % 99.5

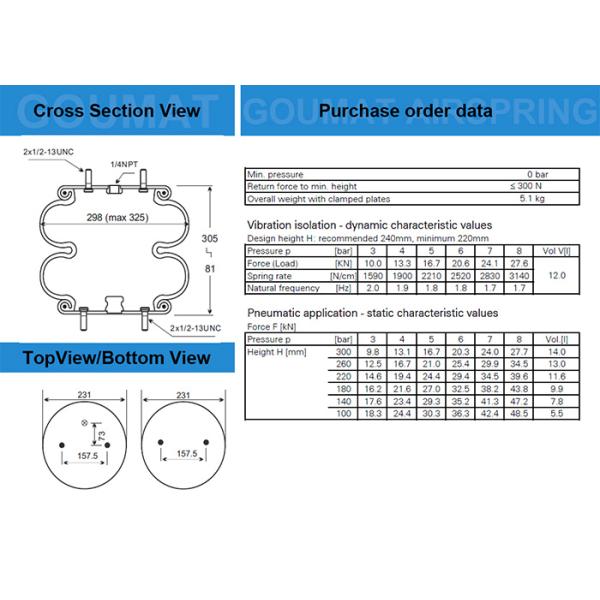

The drawing and data of GUOMAT 2B7424 air spring:

13unc Suspension Air Bag S13043 FD330-22327 Contitech Air Spring

13unc Suspension Air Bag S13043 FD330-22327 Contitech Air Spring

13unc Suspension Air Bag S13043 FD330-22327 Contitech Air Spring
13unc Suspension Air Bag S13043 FD330-22327 Contitech Air Spring
