Specifications
Brand Name :
AIRSUSTECH
Model Number :
130142H-2
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
HF100/166-2
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
/
Top Plate Hole/Stud :
M10
Bottom Plate Hole/Stud :
M10
Top Plate Dia :
/
Bottom Plate Dia :
/
Trademark :
Neutral
Transport Package :
Cartons
Specification :
16*16*16 cm
Origin :
China
HS Code :
8708809000
Port :
Huangpu, China
Material :
Rubber and Iron
Position :
Front and Rear
OEM :
Yes
Type :
Suspension Spring
N.W. :
1.5 Kg
Description

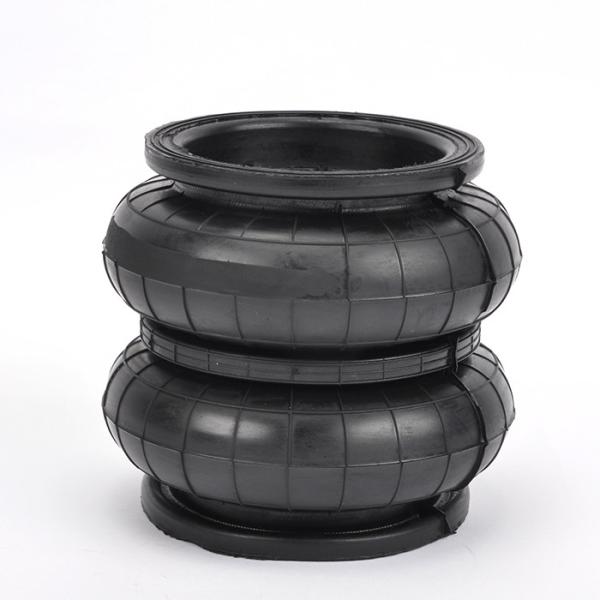

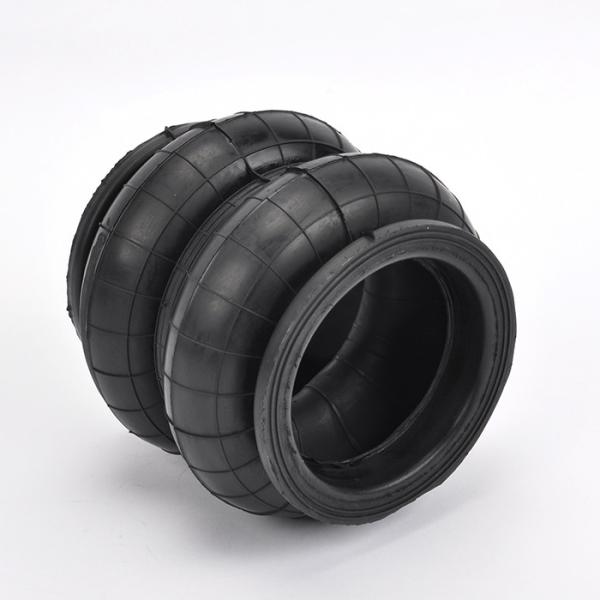

130142H-2 Air Spring Bellows 150mm MAX Dia. Double Rubber Stroker 90mm

130142H-2 Technical parameters

AIRSUSTECH Model number Nominal diameter

0.7Mpa

MAX IDA

 Bearing capacity at design height
0.2Mpa 0.5Mpa 0.7Mpa
130142H-2 80 150 80 219 314

0.7Mpa

Natural frequency

 Range of travel Delivery status
Minimum compression height Safety elongation height
3.12 72 162 4.4


Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : /
Top Cover Plate Screw (Nut) :/
Bottom Cover Plate Screw (Nut) Tooth :/
Screw Center Distance of Bottom Cover Plate : /

Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : /

Cover Plate
Top Cover Plate Diameter: /
Bottom Cover Plate Diameter: /

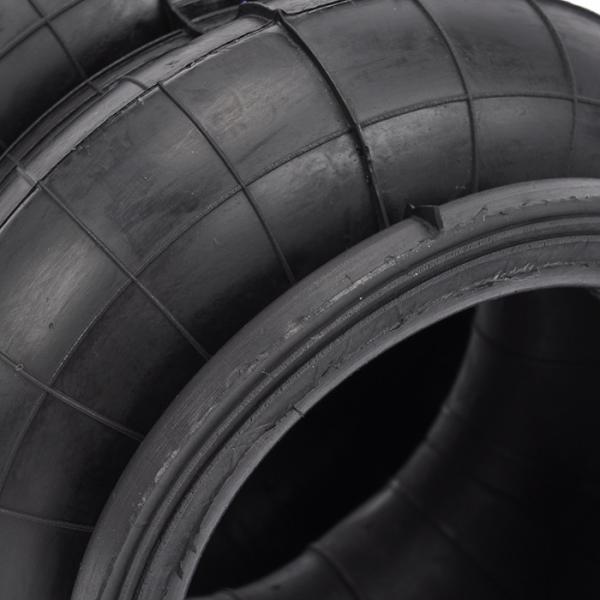

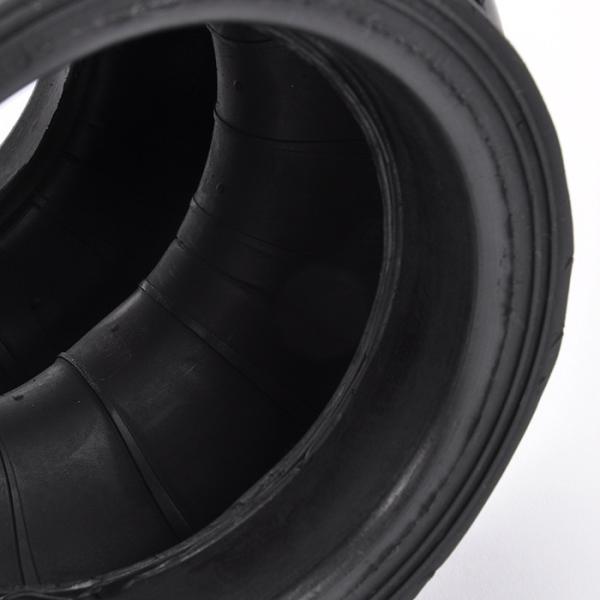

Rubber Bellows
Rubber Bellows MAX Diameter: 150 mm
Rubber Bellows Natural Diameter :150 mm
The Working Stroke : MAX 162 mm to MIN 72mm
Maximum Height : 162 mm
Minimum Height :72mm
Stroke Height : 90 mm

Bumper block / Buffer block
With Bumper Block Or Without Bumper Block

Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop


Other kinds of AIRSUSTECH H-2 air spring:

AIRSUSTECH Model number Bearing capacity Design itinerary Minimum compression Safe elongation Full trip
350255H-2 4098 205 90 295 205
330254H-2 3166 202 88 290 202
330214H-2 3987 158 88 246 158
310214H-2 2992 157 88 245 157
300170H-2 3045 110 85 195 110
290265H-2 1800 213 90 303 213
280214H-2 2480 158 88 246 158
252163H-2 1644 158 80 238 158
250180H-2 1904 122 84 206 84
235152H-2 1667 98 76 174 98
230214H-2 1457 158 88 246 158
200142H-2 1195 84 78 162 84
168132H-2 832 79 72 151 79
160166H-2 593 108 82 190 108
130142H-2 314 90 72 162 90

130142H-2 Air Spring Bellows Air Bag Suspension Max Dia 150mm130142H-2 Air Spring Bellows Air Bag Suspension Max Dia 150mm130142H-2 Air Spring Bellows Air Bag Suspension Max Dia 150mm
